The maximum voltage of the XL830L Digital Multimeter is 1000VDC or 700VAC. It is meter is a hand-held 31/2 digital multimeter for measuring DC and AC voltage, DC and AC current, resistance, diode, transistor, frequency, temperature, capacitance and continuity test and is battery-operated. The back light of display is optional. It is used for Voltage measurement: High and low value DC measurement and peak to peak and DC average measurement. It will be useful for temperature and environmental
Features
- It provides accurate AC /DC voltage, current resistance, etc.
- It has a black light Led screen which is useful for easy to read a readings.
- It has high resolution.
- Large Backlight LCD Screen Improves Visibility.

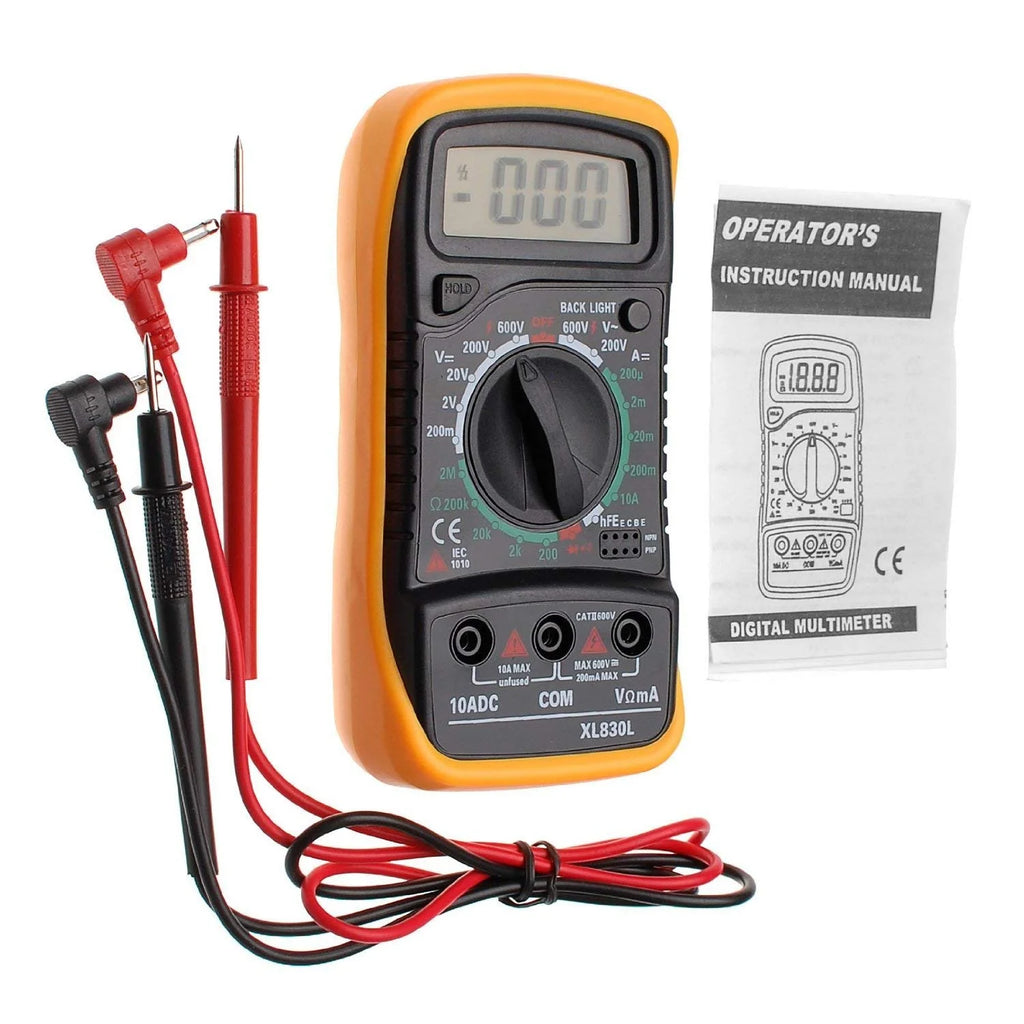

Package Includes:
- 1x1 XL830L Digital Multimeter
- Testing Probe
- User Manual
Applications
Low-cost weather station, DMM internal temperature, Resistance measurement: Micro ohm meter, measuring with constant voltage and measuring resistance with constant current.Features
- It provides accurate AC /DC voltage, current resistance, etc.
- It has a black light Led screen which is useful for easy to read a readings.
- It has high resolution.
- Large Backlight LCD Screen Improves Visibility.
Package Includes:
- 1x1 XL830L Digital Multimeter
- Testing Probe
- User Manual
Specification
| Model | XL830L |
| Type | Digital multimeter |
| Size | 31.5*91*189mm |
| Weight | 280g |
| Max. voltage between terminal and ground | 1000V DC or 700V AC |
| Fuse protection | 500mA/250V |
| Power | 9V battery |
| Display | LCD, 1999 Counts |
| Measuring method | Dual- slope integration A/D converter |
| Storage temperature | -10 to 50 Celsius |
| Operating environment | 0 to 40 Celsius |
