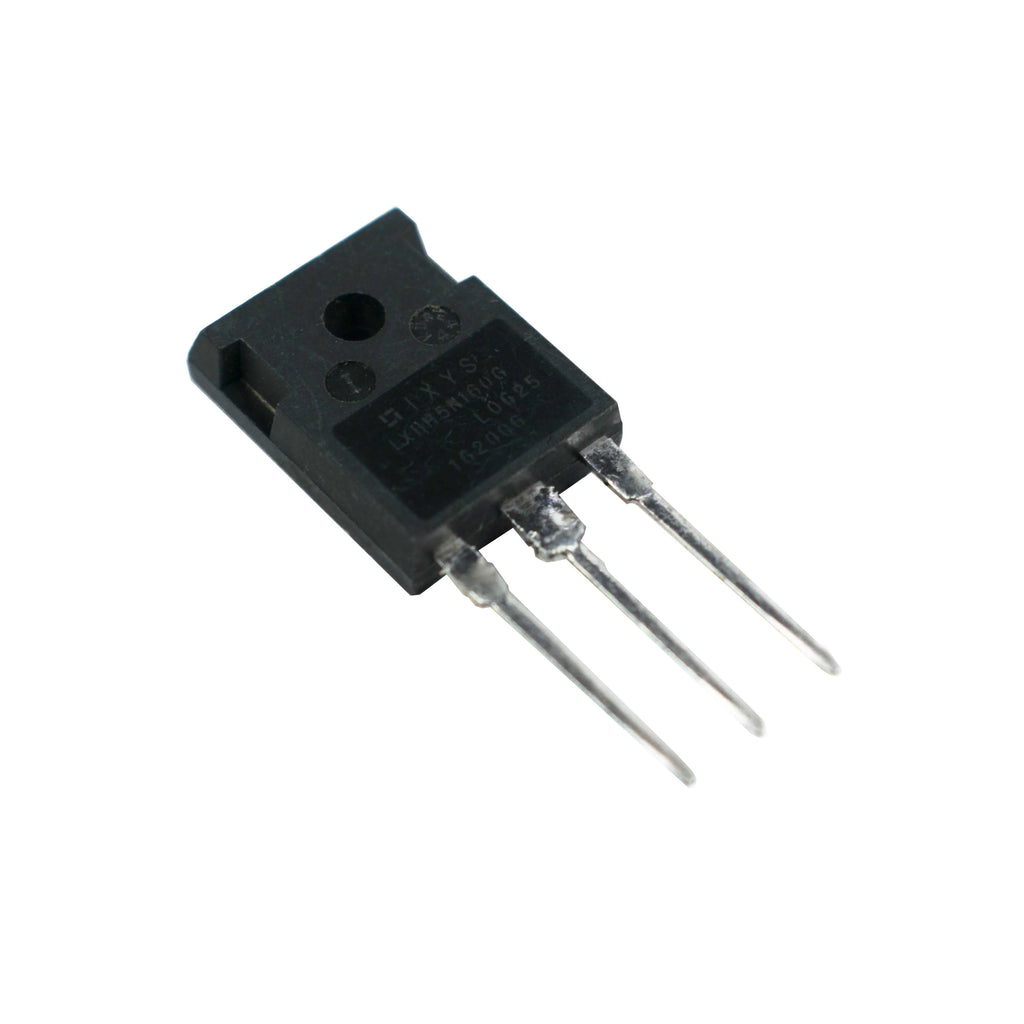

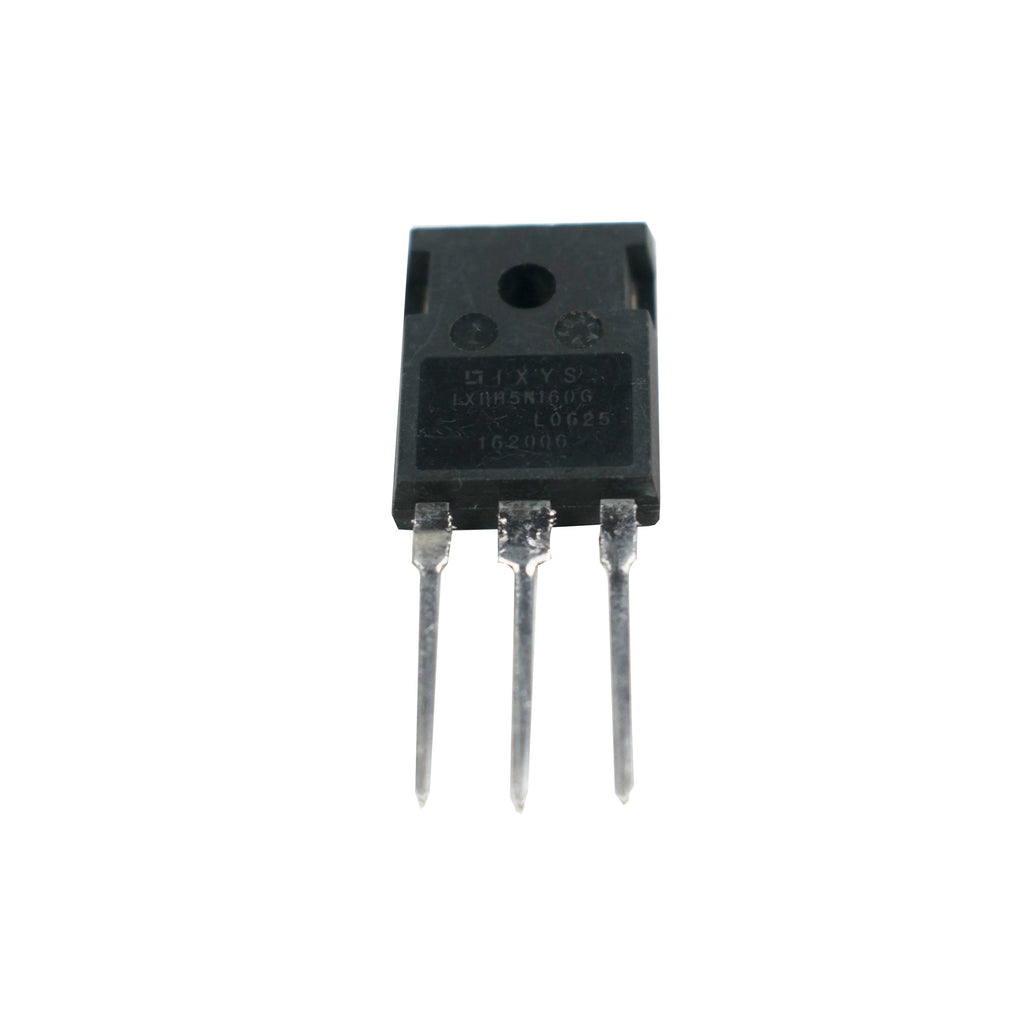

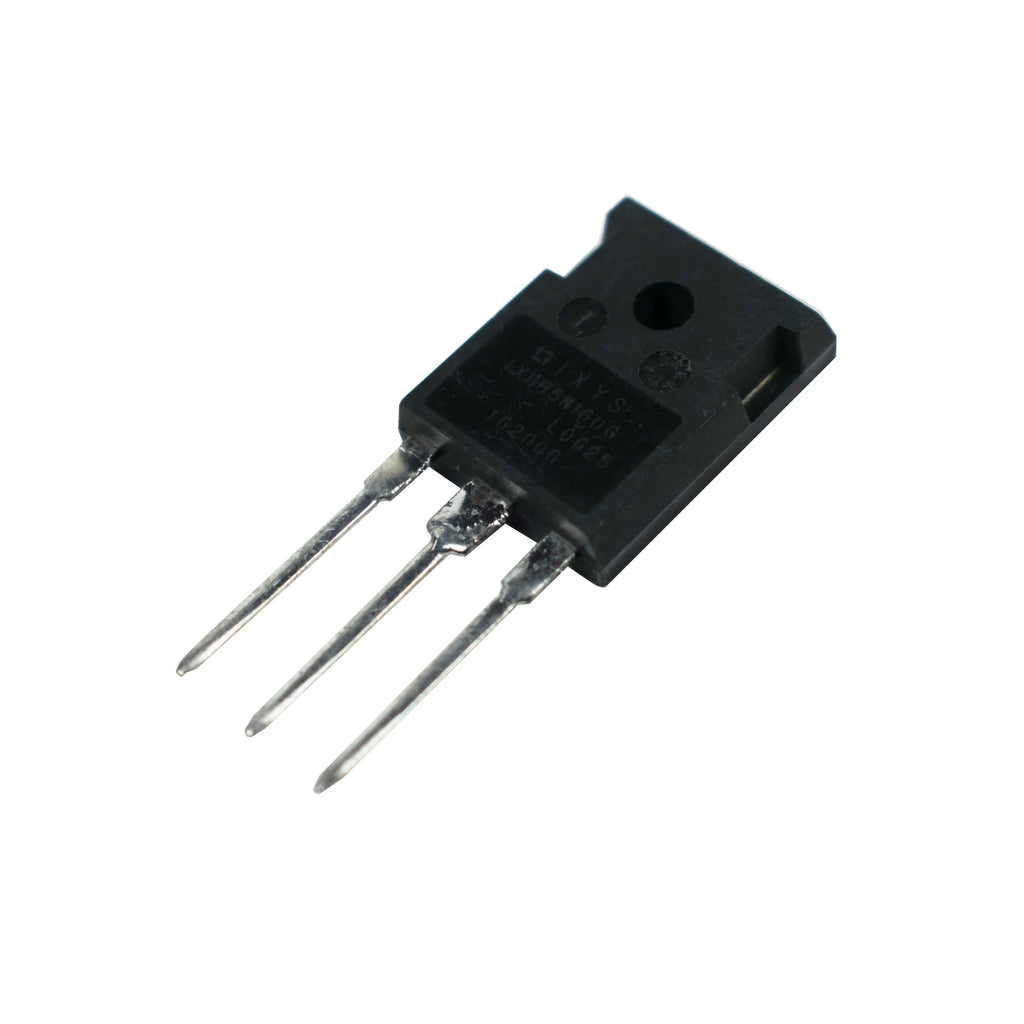

It is a High Voltage BIMOSFET that can replace high voltage MOSFETs because of its much lower voltage drop and control that is compatible with MOSFETs. Fast switching for high-frequency operation, a gate voltage of 10V, and reverse conduction capability Furthermore, this comes in the industry-standard TO-220AB - TO-247AD epoxy satisfies the UL94V-0 box. Switched-mode power supplies, DC-DC converters, X-ray, and laser generators. resonant converters and lamp ballasts are only a few of the numerous
Features
- High Voltage BIMOSFET
- MOSFET compatible control 10 V turn-on gate voltage
- Fast switching for high-frequency operation
- Reverse conduction capability
- Industry-standard package
Applications
covered by the extensive portfolio.Features
- High Voltage BIMOSFET
- MOSFET compatible control 10 V turn-on gate voltage
- Fast switching for high-frequency operation
- Reverse conduction capability
- Industry-standard package
Specification
| Model | IXBH5N160G |
| Brand | IXYS |
| Type | BIMOSFET |
| Collector-Emitter Sustaining Voltage at 25°C | 1600 v (max) |
| Gate-Emitter Sustaining Voltage at 25°C | ± 20V |
| Maximum total power dissipation | 68 W |
| Continuous Collector Current | 5.7 A |
| Operating and Storage Temperature Range | -40°C TO 150°C |
