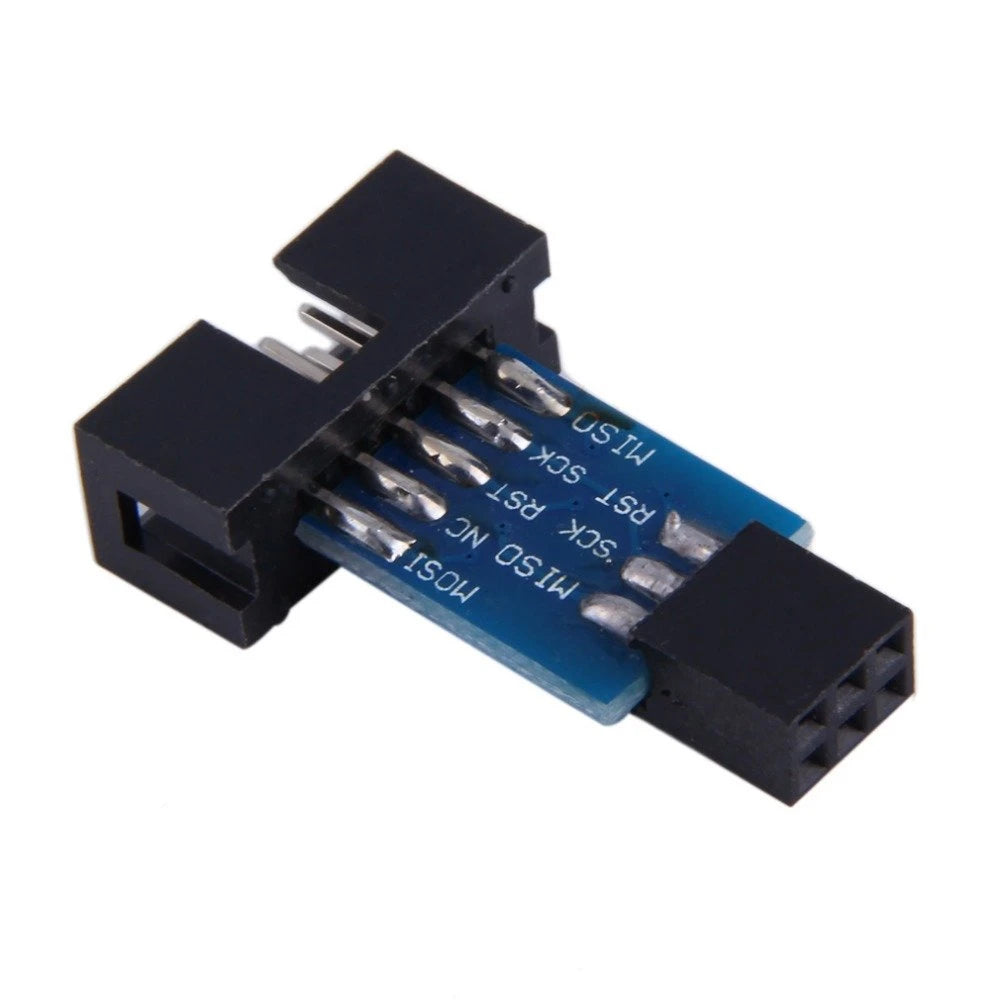

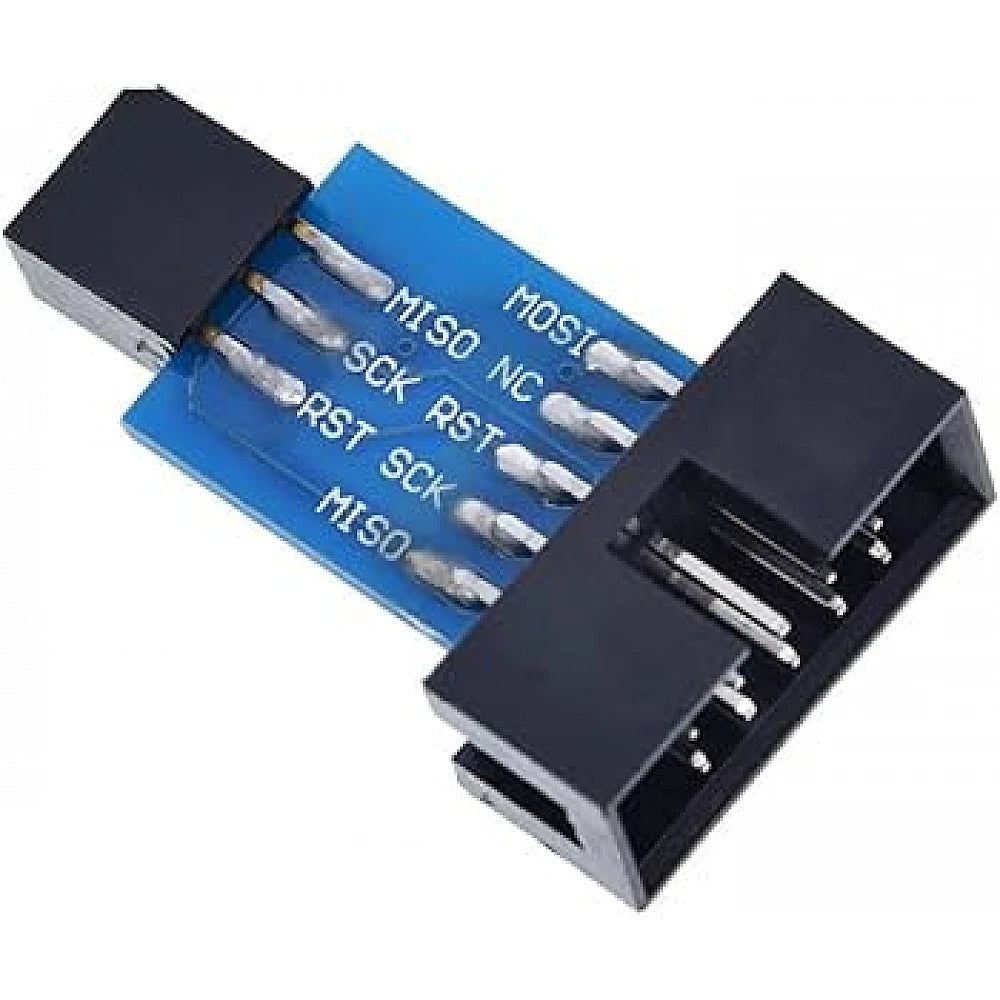

The AVR ISP 10 Pin to 6 Pin Adapter is a compact programming adapter designed to connect standard 10-pin AVR ISP programmers and development tools to 6-pin ISP interfaces commonly found on AVR microcontroller boards. It provides a convenient pin-to-pin connection for programming and debugging compatible AVR microcontrollers without requiring custom wiring. The adapter is ideal for electronics development, prototyping, embedded systems, and AVR-based PCB programming.
Features
- Converts standard 10-pin AVR ISP interface to 6-pin ISP interface.
- Compatible with common AVR ISP programming connections.
- Supports convenient in-system programming without removing the microcontroller.
- Compact and lightweight adapter board.
- Clearly arranged connector pin mapping.
- Designed for reliable programming and signal connections.
- Suitable for AVR development boards and custom PCBs.
- Easy plug-and-play connection between compatible ISP headers.
- Useful for electronics prototyping and development.
- RoHS compliant.
Applications
- AVR microcontroller programming.
- ATmega and compatible AVR development boards.
- In-System Programming (ISP).
- Embedded system development.
- Custom AVR PCB programming.
- Electronics prototyping.
- Microcontroller firmware development.
- AVR programmer interface conversion.
- Educational electronics projects.
- Repair and programming applications.
Specification
| Parameter | Value |
| Product Type | AVR ISP Adapter |
| Input Interface | 10-Pin AVR ISP (MALE IDC CONNECTOR) |
| Output Interface | 6-Pin AVR ISP (FEMALE IDC CONNECTOR) |
| Connector Pitch | 2.54mm |
| Programming Method | In-System Programming (ISP) |
| Application | AVR Microcontroller Programming |
| Mounting Type | Plug-in Connector |
| Board Type | Passive Adapter |
