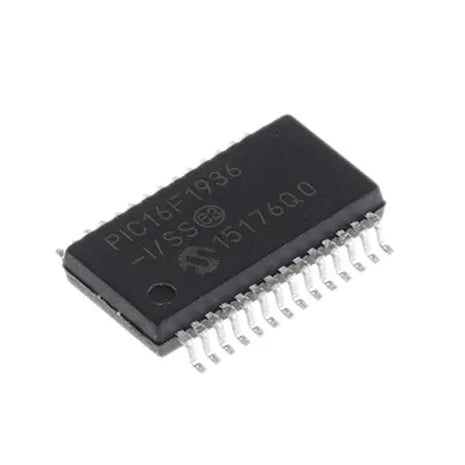

The PIC16F1936-I/SS is a powerful 8-bit microcontroller from Microchip's PIC16F family, designed for low-power and high-performance embedded applications. It features advanced analog and digital peripherals, including multiple communication interfaces, memory options, and the popular XLP (eXtreme Low Power) technology, making it suitable for a wide range of industrial and consumer applications. Housed in a compact SSOP-28 package, it offers flexibility for space-constrained designs.
Features
Applications
- Industrial automation and control systems
- Battery-powered and portable embedded devices
- Smart home and IoT systems
- LED lighting control
- Sensor-based applications
- Automotive subsystems
Specification
| Parameter | Value |
|---|---|
| Core | 8-bit Enhanced Mid-Range |
| Program Memory | 28 KB Flash |
| Data Memory | 1 KB SRAM |
| EEPROM | 256 Bytes |
| Operating Voltage Range | 1.8V – 5.5V |
| CPU Speed | Up to 32 MHz (with PLL) |
| ADC | 12-bit, up to 24 channels |
| Timers | 2 × 8-bit, 1 × 16-bit |
| Communication Interfaces | EUSART, SPI, I²C, MSSP |
| Package Type | SSOP-28 |
| Operating Temperature Range | -40°C to +85°C (Industrial) |
| Special Features | XLP, Internal Oscillator, WDT |
| RoHS Compliant | Yes |
