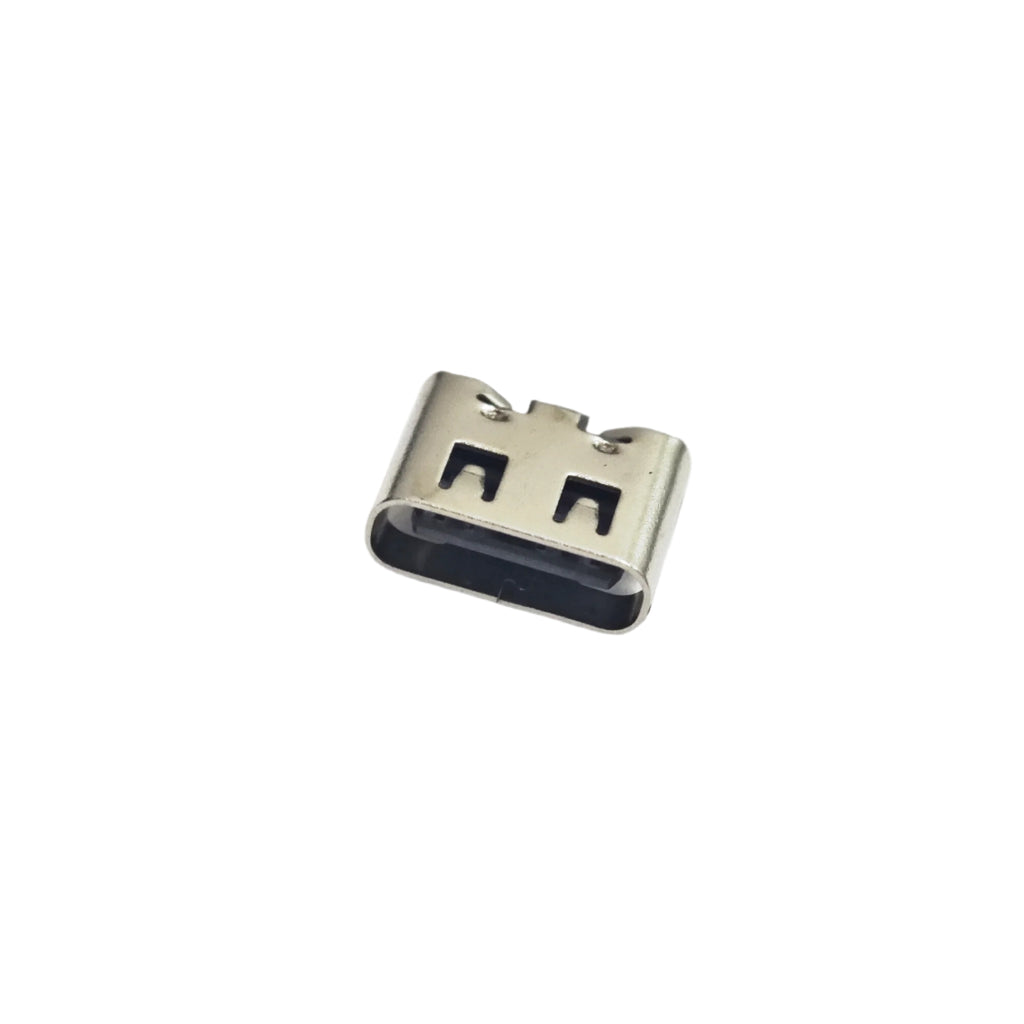

This USB Type-C female connector features a 7mm height and a robust shrapnel mechanism for enhanced durability and secure connections. Designed for surface-mount (SMD) applications, this connector is ideal for modern electronic devices requiring reliable and reversible USB interfaces. Its compact design ensures compatibility with space-constrained applications.
Features
:- Reversible Interface: USB Type-C design allows plug insertion in any orientation.
- 7mm Height: Compact size suitable for space-limited designs.
- SMD Mounting: Simplifies PCB integration and supports automated assembly.
- Shrapnel Mechanism: Ensures a secure connection with enhanced durability.
- Wide Compatibility: Complies with USB Type-C standards for power and data transfer.
- High Durability: Withstands multiple mating cycles for long-term use.
Applications
:- Consumer Electronics: Smartphones, tablets, and portable devices.
- Wearables: Compact electronic devices such as smartwatches.
- IoT Devices: Wireless modules and embedded systems.
- Power Delivery: Fast charging circuits for USB Type-C applications.
- DIY Projects: Custom electronics and prototyping requiring USB connectivity.
Specification
| Parameter | Value |
|---|---|
| Connector Type | USB Type-C Female |
| Mounting Style | DIP mounting SMD Pins |
| Height | 7mm |
| Pins | 24 pins (standard Type-C) |
| Shrapnel | Yes |
| Current Rating | Up to 5A |
| Voltage Rating | 20V DC |
| Data Transfer Speed | Supports up to USB 3.1 speeds |
| Material | Copper alloy with gold/tin plating |
| Housing Material | Thermoplastic (UL94V-0 rated) |
| Operating Temperature | -30°C to +85°C |
| Durability | 10,000+ mating cycles |
| Compliance | USB Type-C Standard, RoHS |
