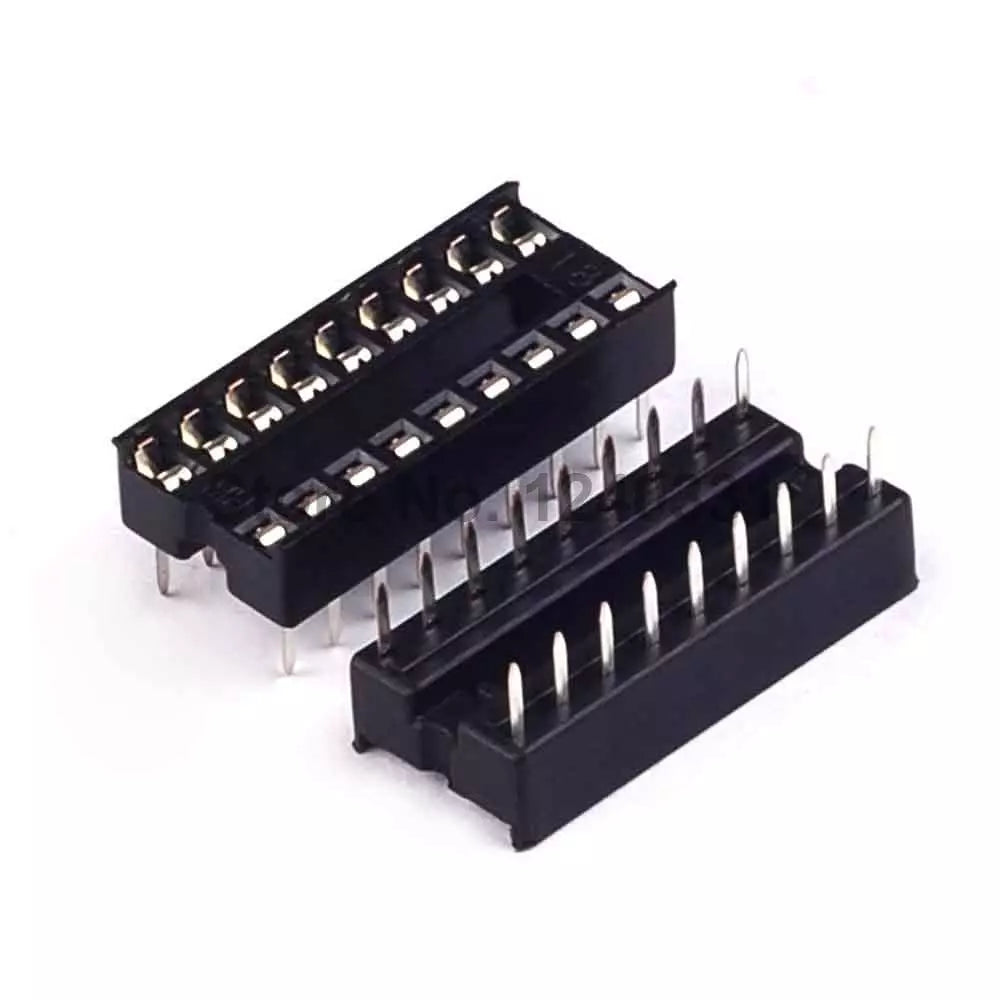

18 Pin IC Base (DIP Socket) is a high-quality socket designed for mounting 18-pin dual in-line package (DIP) integrated circuits without direct soldering onto the PCB. It provides easy IC replacement, protects components from heat damage during soldering, and improves maintenance efficiency in electronic circuits. The IC socket is widely used in development boards, prototyping, microcontroller projects, and PCB designs.
Features
- Compatible with standard 18-pin DIP integrated circuits
- Eliminates repeated soldering and desoldering of ICs
- Protects sensitive ICs from soldering heat damage
- Durable plastic body with metal contact terminals
- Ensures reliable electrical connection
- Easy insertion and removal of IC components
- Suitable for PCB mounting and prototyping applications
- Compact and lightweight design
Applications
- Microcontroller and embedded system projects
- PCB fabrication and assembly
- Electronic circuit prototyping
- IC testing and replacement applications
- Educational and DIY electronics projects
- Industrial control circuit boards
- Repair and maintenance of electronic equipment
Specification
| Product Type | IC Socket / IC Base |
| Pin Count | 18 Pins |
| Package Compatibility | DIP (Dual Inline Package) |
| Mounting Type | Through Hole |
| Contact Material | Metal Alloy |
| Body Material | Heat-resistant Plastic |
| Pitch | 2.54mm (Standard) |
| Operating Temperature | -25°C to +85°C |
| Color | Black |
