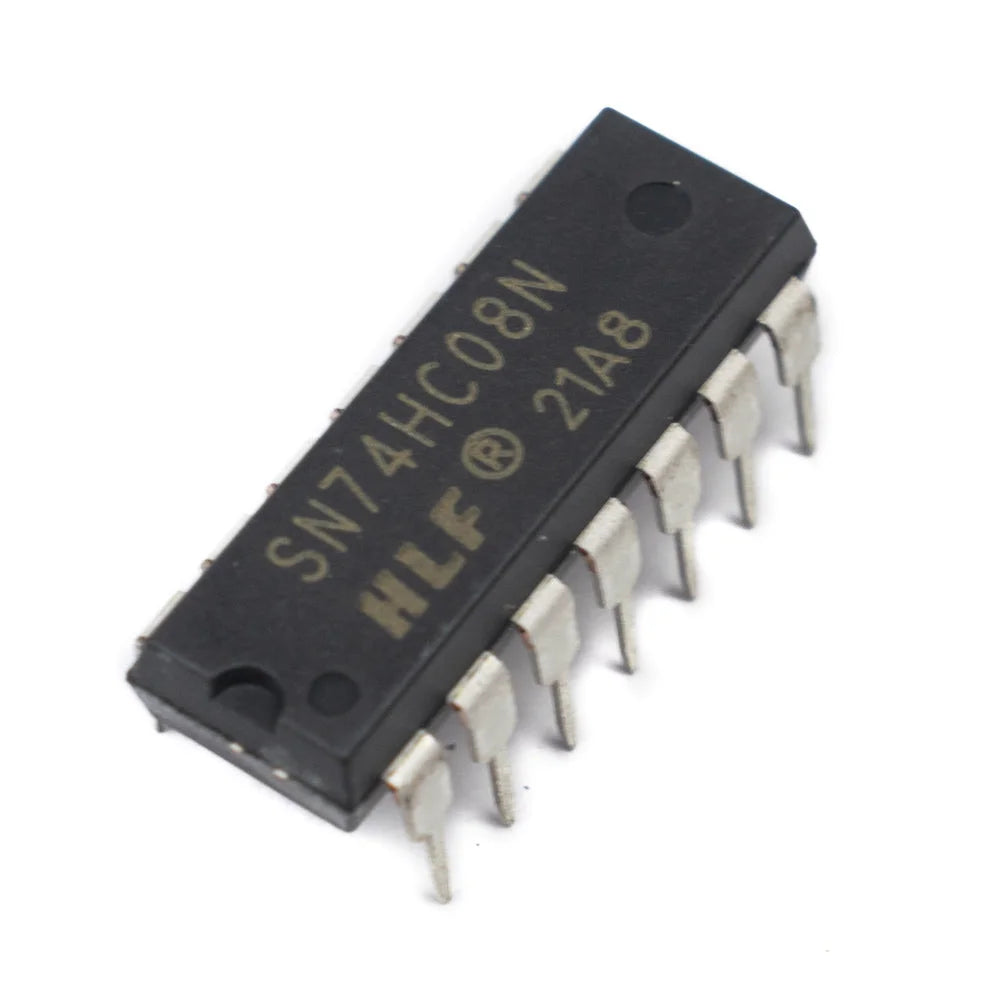

SN74HC08N Quad 2-Input AND Gate IC is a high-speed CMOS logic integrated circuit that contains four independent 2-input AND gates in a single package. Designed for reliable digital logic operations, this IC offers low power consumption, high noise immunity, and fast switching performance. It is widely used in digital electronics, embedded systems, logic control circuits, and educational electronics projects.
Features
- Contains four independent 2-input AND gates
- High-speed CMOS logic performance
- Low power consumption operation
- Wide operating voltage range
- High noise immunity for reliable operation
- Compatible with TTL logic levels
- Suitable for digital logic and control applications
- Standard DIP package for easy PCB mounting
Applications
- Digital logic circuits and signal processing
- Embedded systems and microcontroller projects
- Industrial control and automation systems
- Logic gating and switching applications
- Educational and laboratory electronics projects
- Timing and sequencing circuits
- DIY electronics and prototyping
Specification
| Part Number | SN74HC08N |
| Logic Function | Quad 2-Input AND Gate |
| Number of Gates | 4 |
| Inputs per Gate | 2 |
| Logic Family | 74HC CMOS Logic |
| Operating Voltage | 2V – 6V DC |
| Package Type | DIP-14 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C to +85°C |
