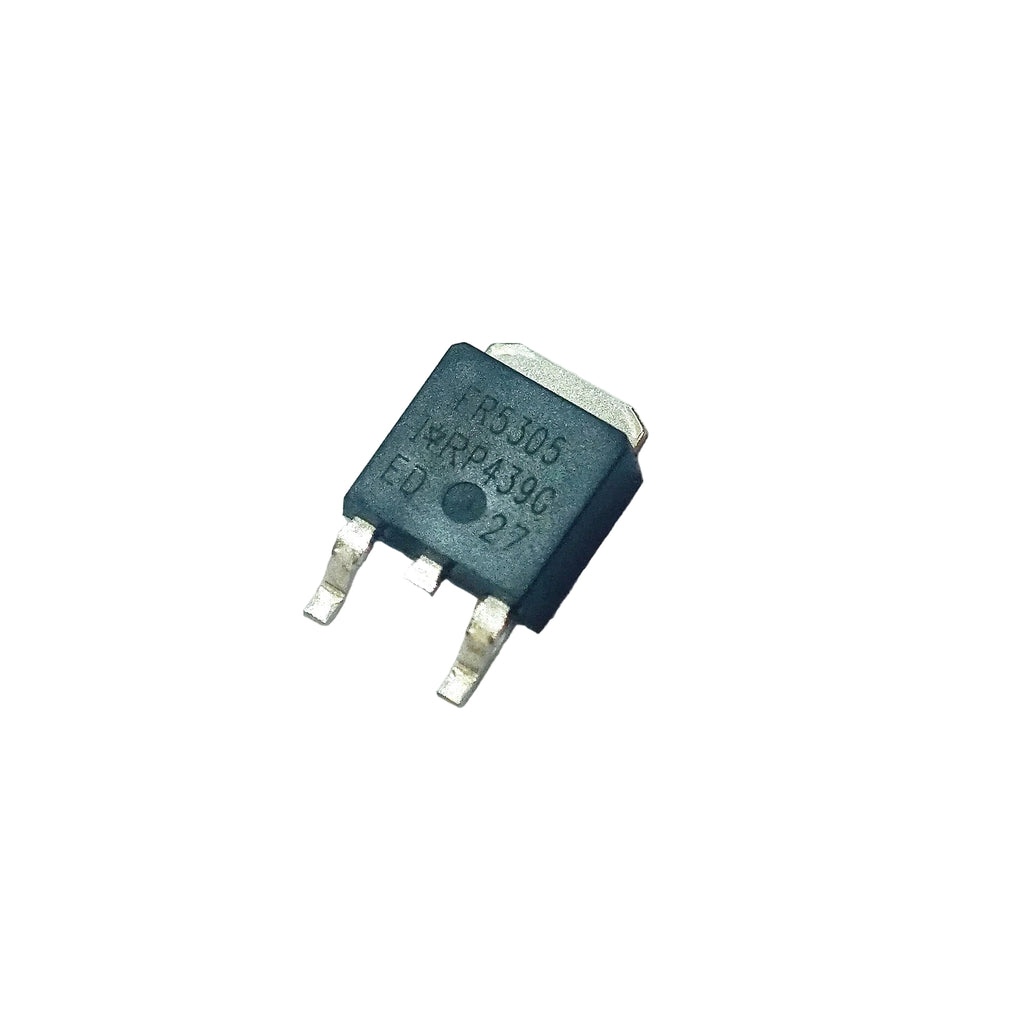

The IRFR5305TRPBF-HXY is a high-performance P-Channel MOSFET designed for efficient power switching applications. With a drain-source voltage rating of -60V and continuous drain current up to -20A, this device offers reliable performance in power management circuits. Its low Rds(on) of 72mΩ at Vgs = -10V ensures reduced conduction losses, making it ideal for high-efficiency designs. Housed in a TO-252 (DPAK) package, it provides good thermal performance and is suitable for compact surface-mount applications.
Features
- P-Channel MOSFET
- Drain-source voltage up to -60V
- Continuous drain current up to -20A
- Low Rds(on) of 72mΩ @ Vgs = -10V
- Power dissipation up to 40W
- Fast switching performance
- Low gate charge
- TO-252 (DPAK) surface mount package
- High efficiency and low conduction losses
- RoHS compliant
Applications
- Power management circuits
- Battery protection and charging systems
- DC-DC converters
- Load switching applications
- Motor control circuits
- Automotive and industrial electronics
Specification
| Part Number | IRFR5305TRPBF |
| Transistor Type | P-Channel MOSFET |
| Drain-Source Voltage (Vds) | -60V |
| Continuous Drain Current (Id) | -20A |
| Power Dissipation | 40W |
| On-Resistance (Rds(on)) | 72mΩ @ Vgs = -10V, Id = -10A |
| Gate-Source Voltage (Vgs) | ±20V |
| Package | TO-252 (DPAK) |
| Mounting Type | Surface Mount |
| Compliance | RoHS Compliant |
| Operating Temperature | -55°C to +150°C |
