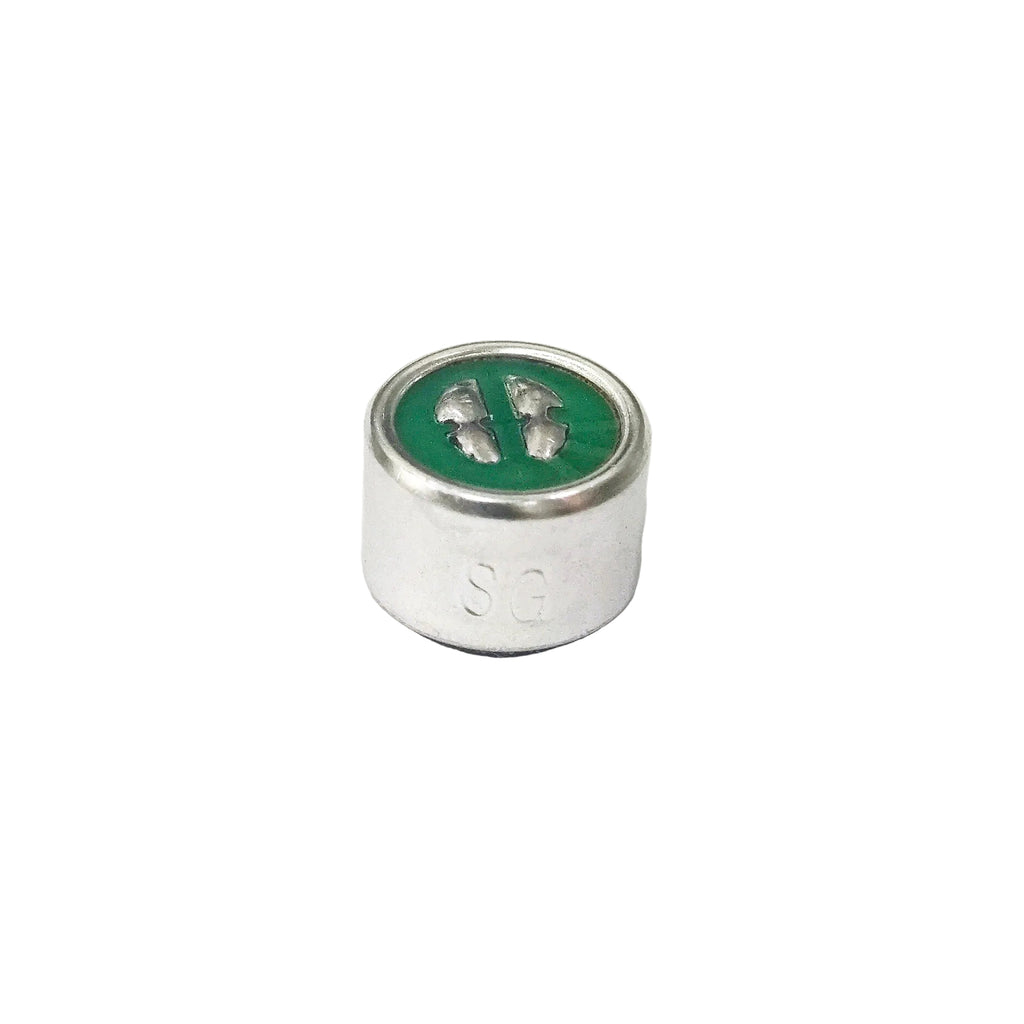

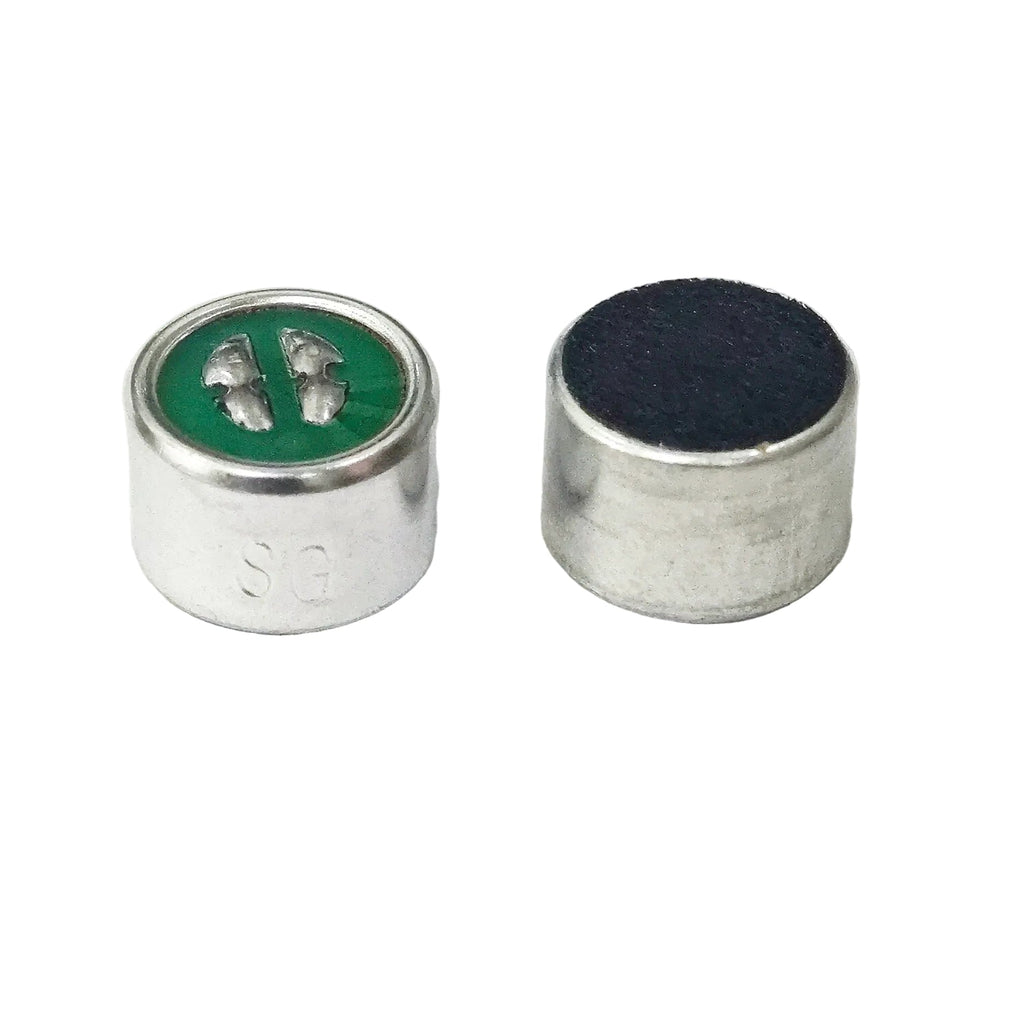

The SG-15E Electret Microphone is a compact 9.7mm SMD microphone designed for high-sensitivity audio pickup in modern electronic devices. Built using electret condenser technology, it delivers clear and stable sound performance, making it ideal for voice capture and audio sensing applications in compact PCB designs.
Features
- Electret condenser microphone with high sensitivity
- Compact 9.7mm SMD package
- Omnidirectional sound pickup
- Low noise and stable performance
- Wide operating voltage range
- Suitable for automated PCB assembly
- Reliable and consistent audio output
Applications
- Mobile phones and communication devices
- Voice recording and audio capture systems
- Intercom and security systems
- Consumer electronics
- IoT and smart devices
Specification
| Model | SG-15E |
| Type | Electret Condenser Microphone |
| Directivity | Omnidirectional |
| Diameter | 9.7mm |
| Mounting Type | SMD |
| Operating Voltage | Typically 2V |
| Sensitivity | Approx. -42 dB |
| Frequency Response | 20Hz – 16kHz (typical) |
| Signal to Noise Ratio | > 58 dB |
