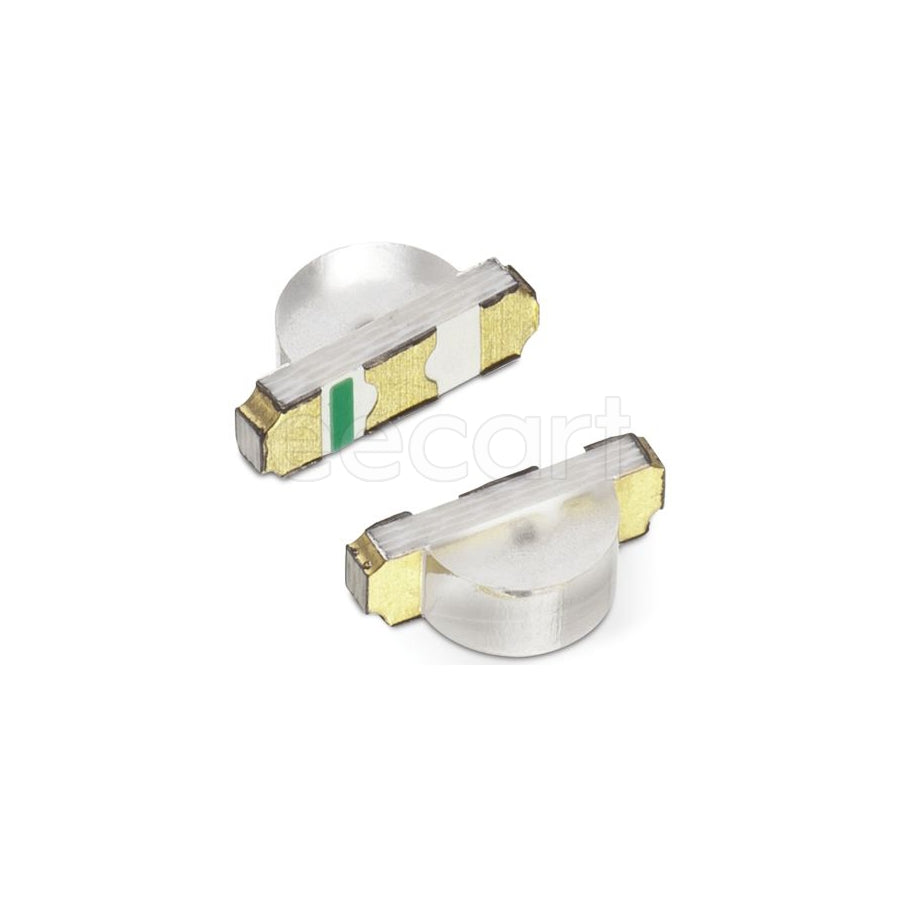

SM1204UWC White SMD LED Right Angle Side View 1204 Package is a compact surface-mount LED designed for side-emitting and edge-lighting applications in space-constrained electronic devices. Featuring a right-angle side-view design, this white LED provides bright illumination, low power consumption, and reliable performance for status indication, backlighting, display edge lighting, and embedded electronic systems. Its 1204 package makes it suitable for automated PCB assembly and compact circuit designs.
Features
- White SMD LED with right-angle side-view emission
- Compact 1204 package for high-density PCB layouts
- Low power consumption with efficient light output
- Wide viewing angle for improved visibility
- Suitable for edge-lighting and backlighting applications
- High reliability and long operational life
- Compatible with automated SMT assembly processes
- Ideal for compact electronic and embedded devices
Applications
- Status indication in electronic equipment
- Edge lighting for displays and light guides
- Backlighting for buttons, switches, and keypads
- Consumer electronics and portable devices
- Industrial control panels and instrumentation
- Wearable electronics and IoT devices
- Networking equipment and communication devices
- Embedded systems and custom PCB designs
Specification
| Part Number | SM1204UWC |
| LED Color | White |
| Package Type | 1204 (3210 Metric) |
| Mounting Type | Surface Mount (SMD) |
| Viewing Direction | Right Angle Side View |
| Forward Voltage | Typical 3.3V |
| Forward Current | 20mA Typical |
| Viewing Angle | 110° |
| Luminous Intensity | Up to 450mcd |
| Operating Temperature | -30°C to +80°C |
