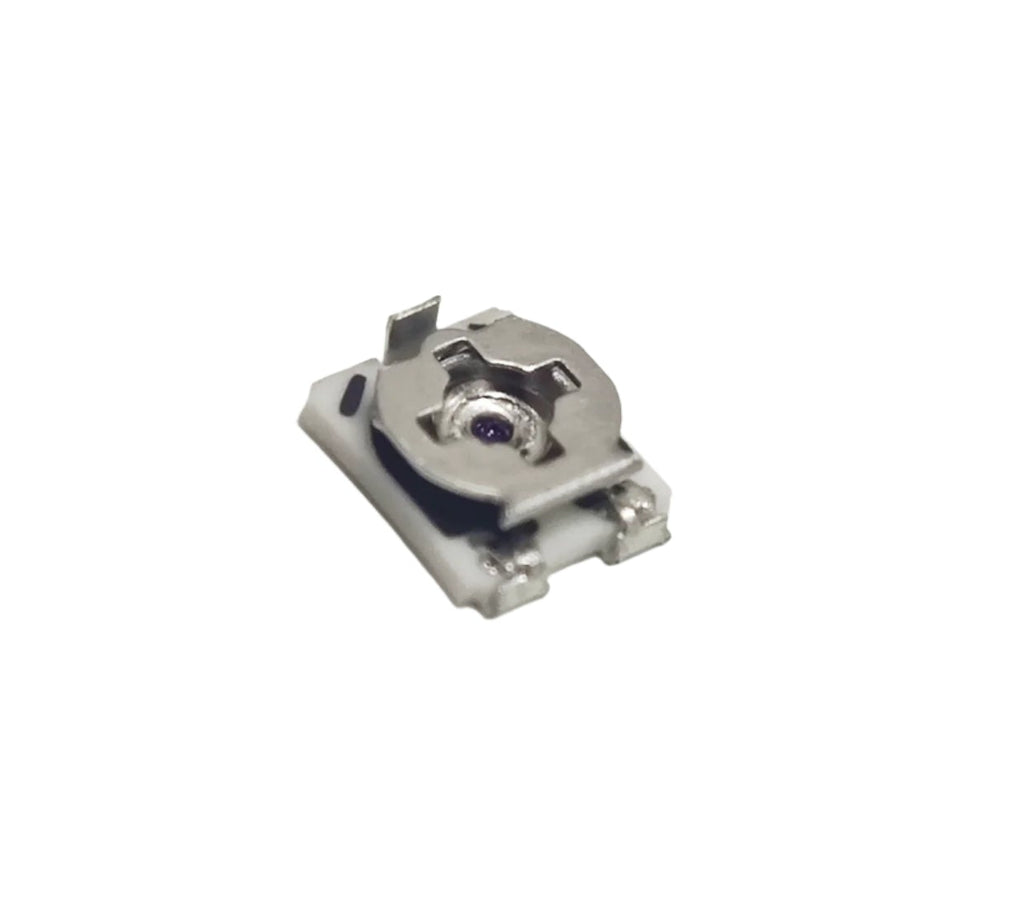

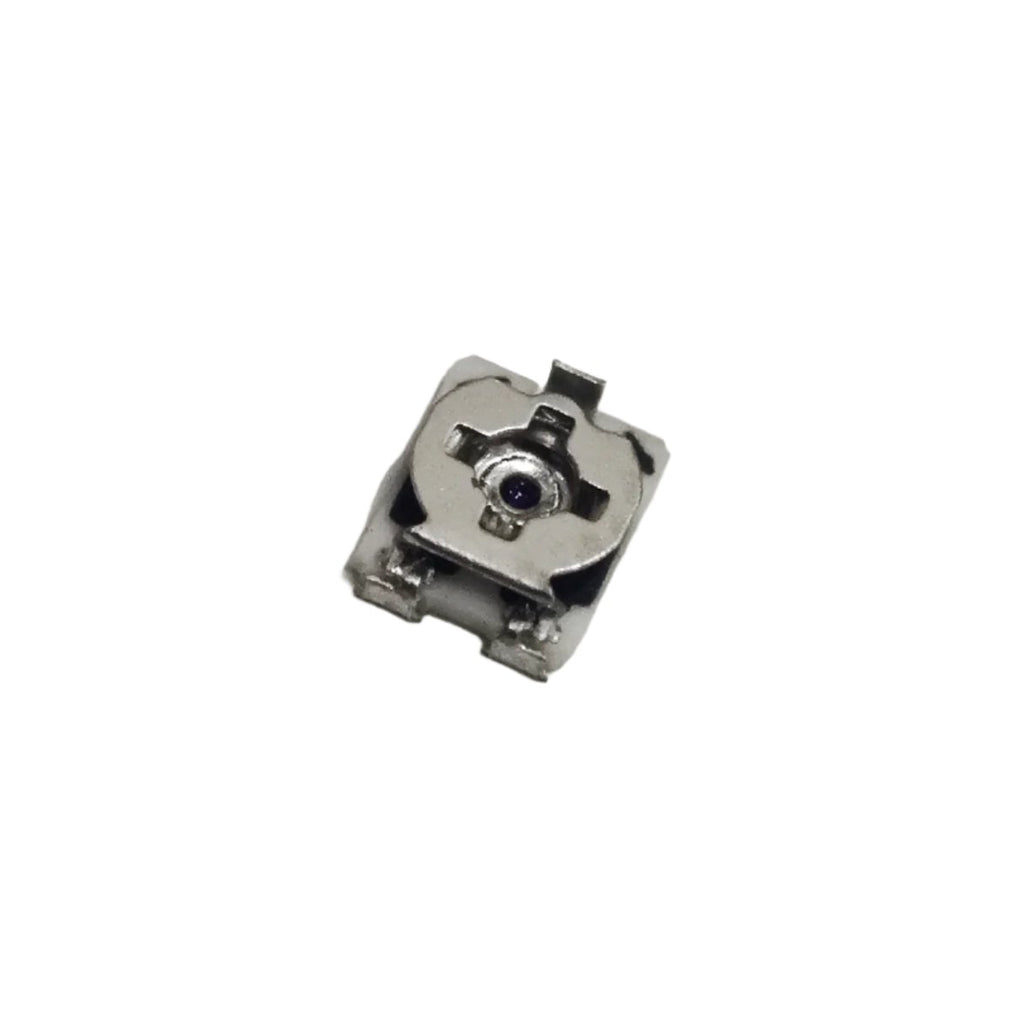

The TC33X-2-103E is a high-reliability surface-mount trimmer potentiometer from Bourns, designed for precision tuning in compact electronic circuits. It offers a resistance of 10k ohms with excellent stability and repeatability.
Features
This trimmer potentiometer offers the following key characteristics:
- 10 kΩ resistance value (marked 103)
- Surface-mount design with compact 3mm square footprint
- Top-adjust type for ease of access during tuning
- Sealed construction for flux and solvent resistance
- Long operational life of minimum 200 cycles
- RoHS compliant and halogen-free
- Excellent temperature stability with ±250 ppm/°C coefficient
Applications
The TC33X-2-103E is commonly used in:
- Analog circuit calibration
- Sensor offset and gain adjustment
- Voltage divider circuits
- Signal conditioning systems
- Consumer electronics, communication devices, and test instruments
Specification
| Parameter | Value |
|---|---|
| Resistance | 10 kΩ |
| Tolerance | ±25% |
| Adjustment Type | Top Adjust |
| Mounting Type | Surface Mount (SMD) |
| Rotational Life | 200 cycles (min.) |
| Power Rating | 0.1 W @ 70°C |
| Temperature Coefficient | ±250 ppm/°C |
| Operating Temperature Range | -55°C to +125°C |
| Package Size | 3 mm x 3.65 mm x 1.65 mm |
