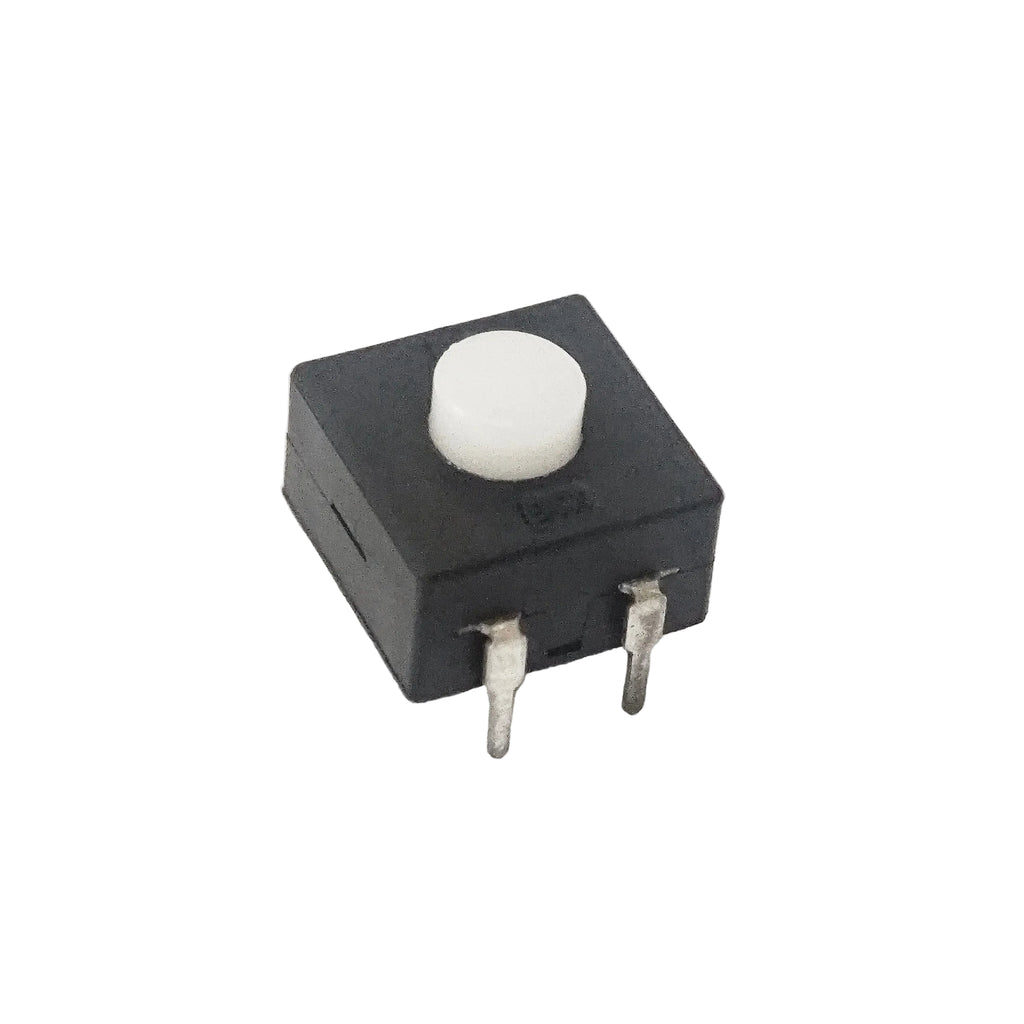

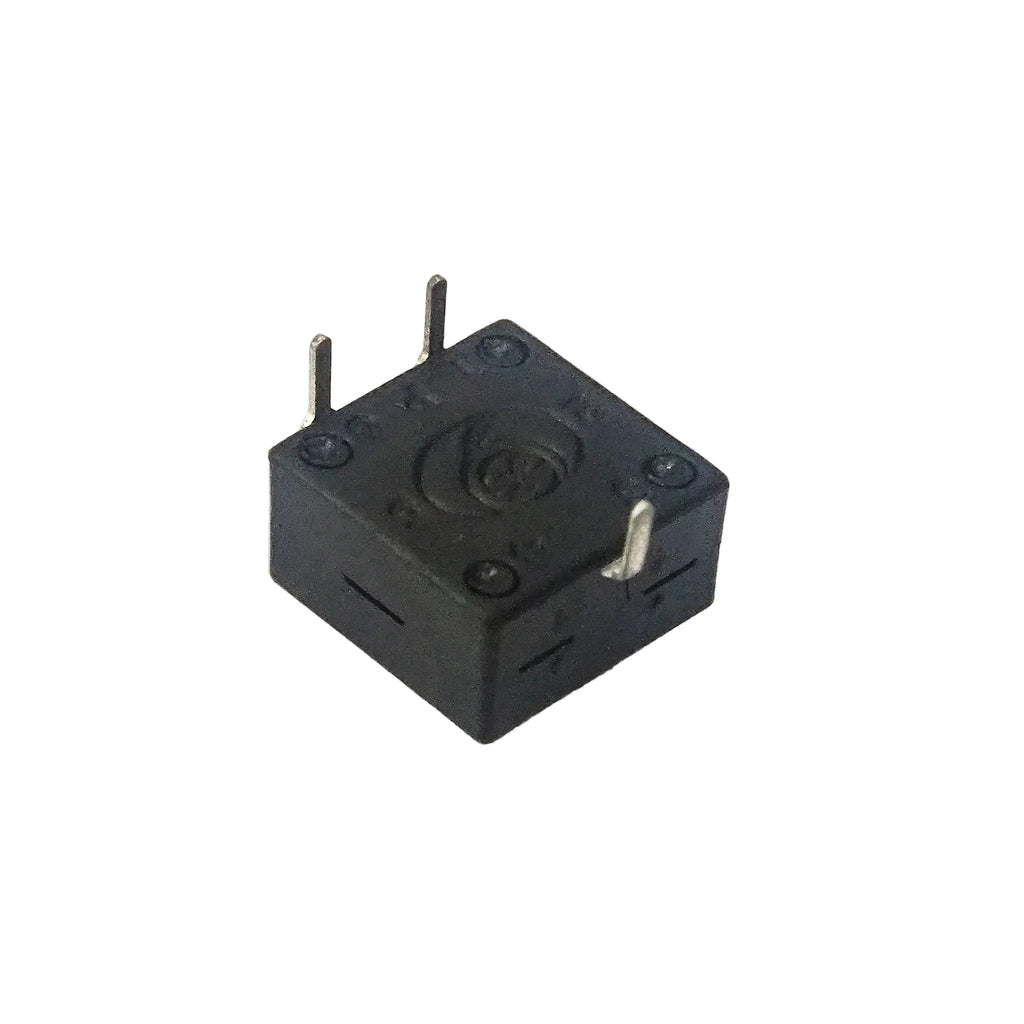

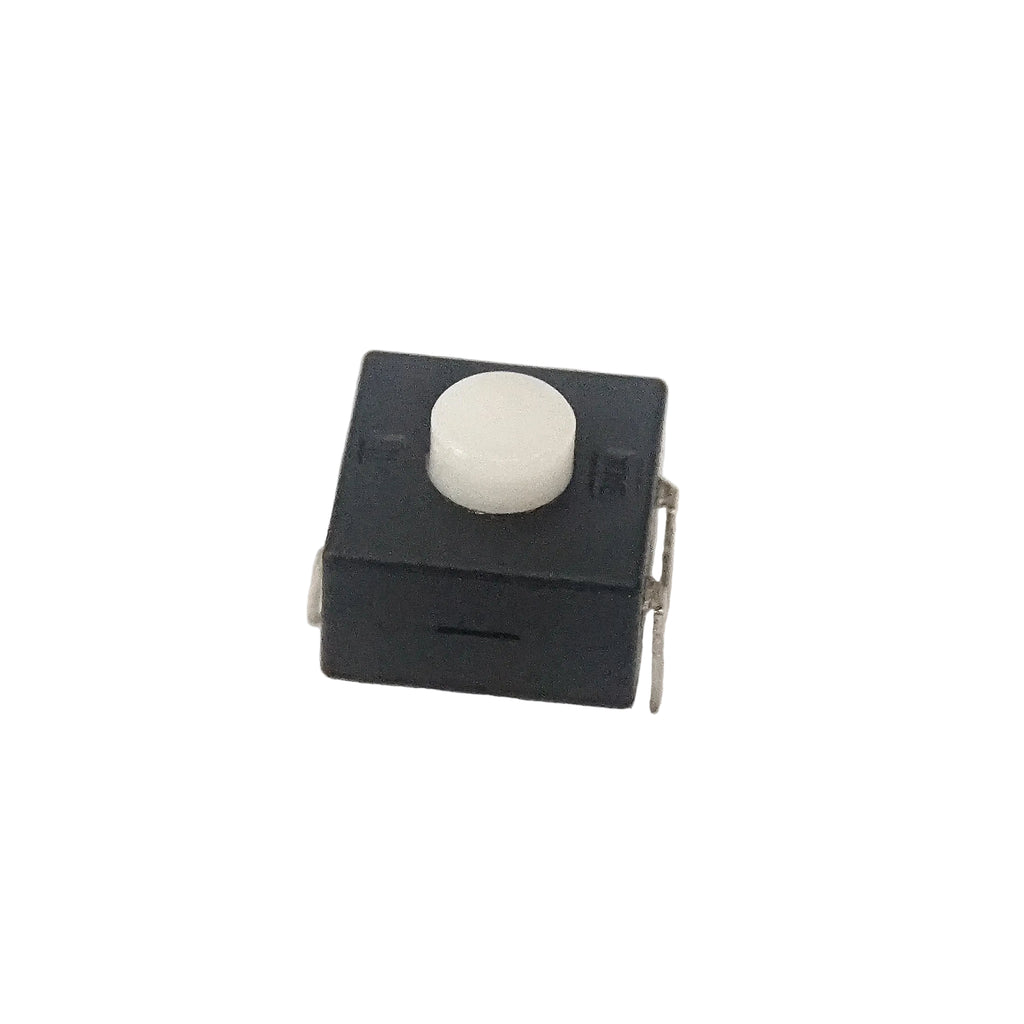

XY1603AA-9.1 ON-ON-OFF 3 Pin Push Button Switch is a compact multi-position push button switch designed for reliable switching operations in electronic circuits and control systems. Featuring ON-ON-OFF functionality with a 3-pin configuration, this switch is suitable for signal selection, mode switching, and control applications in embedded systems, consumer electronics, DIY projects, and industrial equipment.
Features
- ON-ON-OFF switching functionality
- 3-pin compact push button design
- Reliable mechanical switching performance
- Compact size suitable for PCB mounting
- Durable construction for long operational life
- Easy integration into electronic circuits
- Smooth switching action with stable contact performance
- Suitable for low-voltage control applications
Applications
- Embedded systems and control circuits
- Consumer electronics and portable devices
- DIY electronics and prototyping projects
- Mode selection and signal switching applications
- Industrial control panels and equipment
- Automation systems and custom PCB designs
- Battery-operated electronic devices

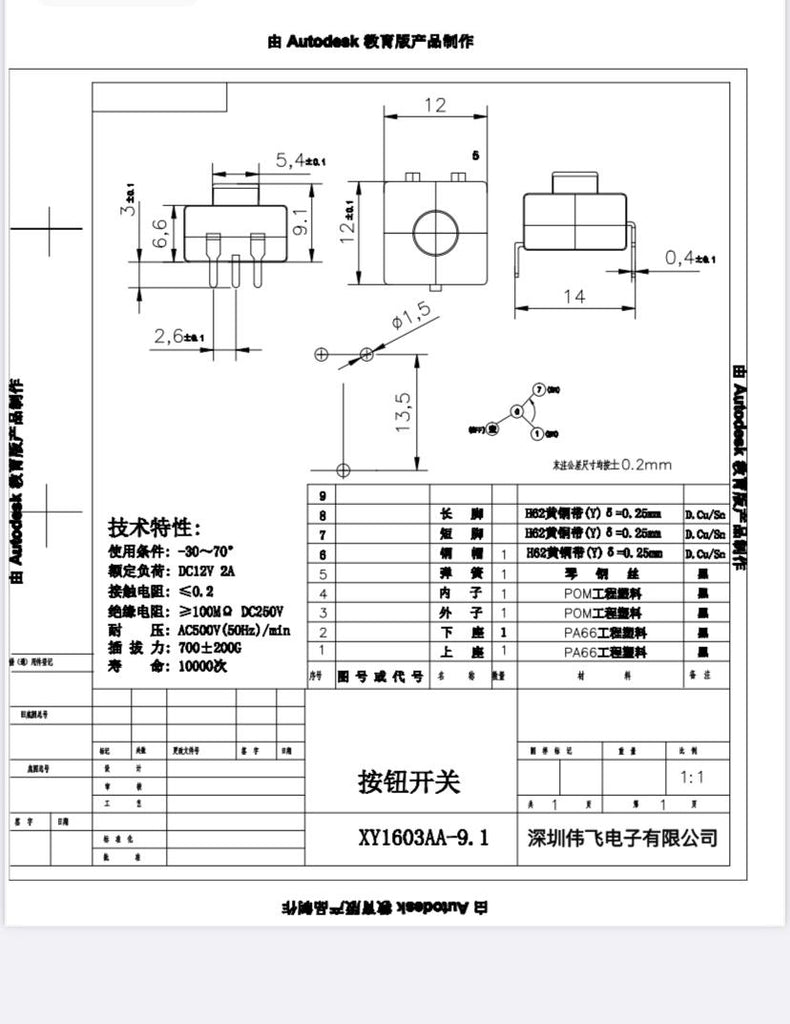

Specification
| Model | XY1603AA-9.1 |
| Switch Type | Push Button Switch |
| Switch Function | ON-ON-OFF |
| Pin Configuration | 3 Pin |
| Mounting Type | PCB Mount |
| Operation Type | Mechanical Switching |
| Contact Type | Multi-position Switching Contact |
| Application | Signal and Mode Selection |
