Description

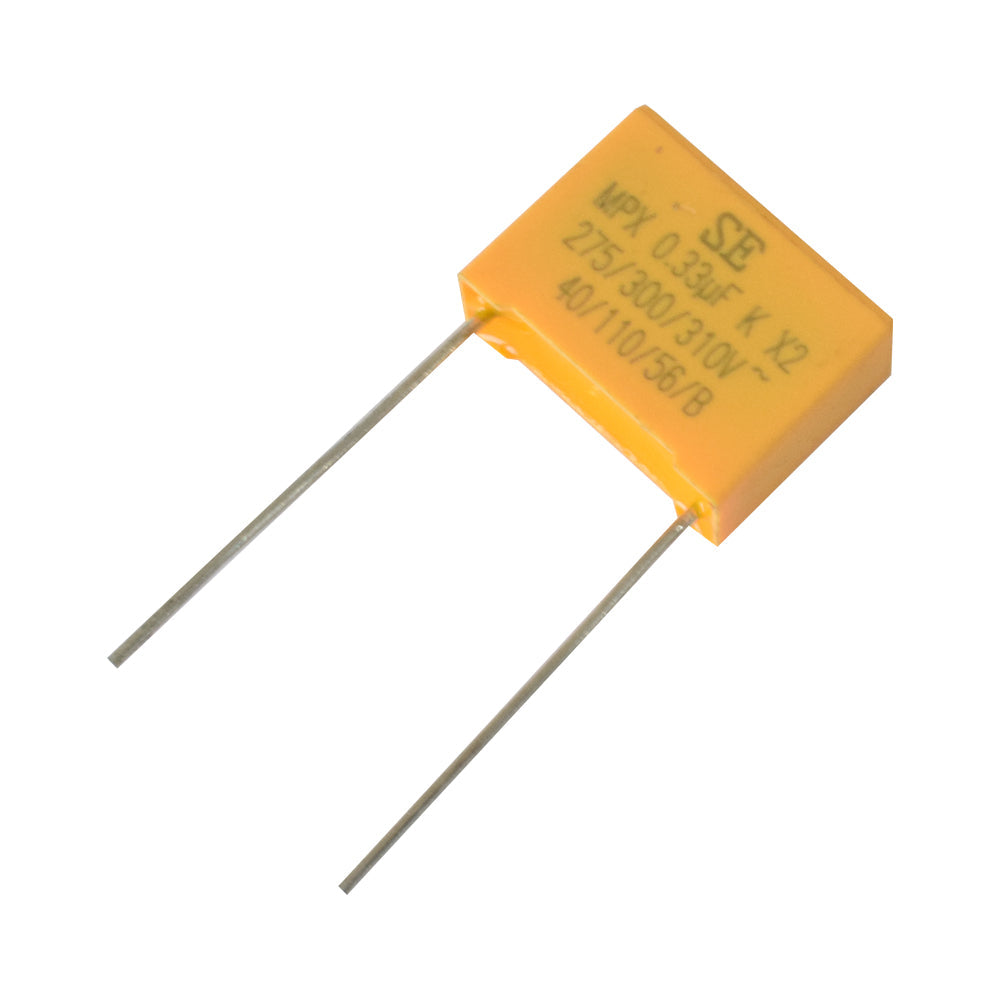

The polyester Film Box type capacitor is made of two metal plates with the polyester film sandwiched between them, or the insulator might be covered with a metalized film.
Polyester is the most widely utilised dielectric material in this capacitor, allowing the capacitor's construction to be simplified. These capacitors are pretty inexpensive and have excellent self-healing properties.
The dielectric & construction of polyester PET capacitors are used in different applications wherever sharp; spikes of quick rise time are there when they contain high dV/dt.
Applications
- This capacitor is used where maximum levels of peak current need to handle
- Used in different low-frequency pulsating & DC circuits
- Used for filtering wherever high levels of tolerance are not necessary.
- Used in the applications of coupling, decoupling & blocking of DC
- Used in power supplies wherever the levels of the highly high capacitance of electrolytic capacitors are not required.
Specification
Capacitor Value | 0.33µF/ 330nF |
Rated Voltage | 310V |
Tolerance | ±5% |
Mounting Type | Through Hole |
Type | Polyester Box Film |
Quantity | 500Pcs |
Pitch | 15mm |
Capacitor Dimension (L*W*D) | 13.5*17.8*7.3 (mm) |
