Seven Segment Display

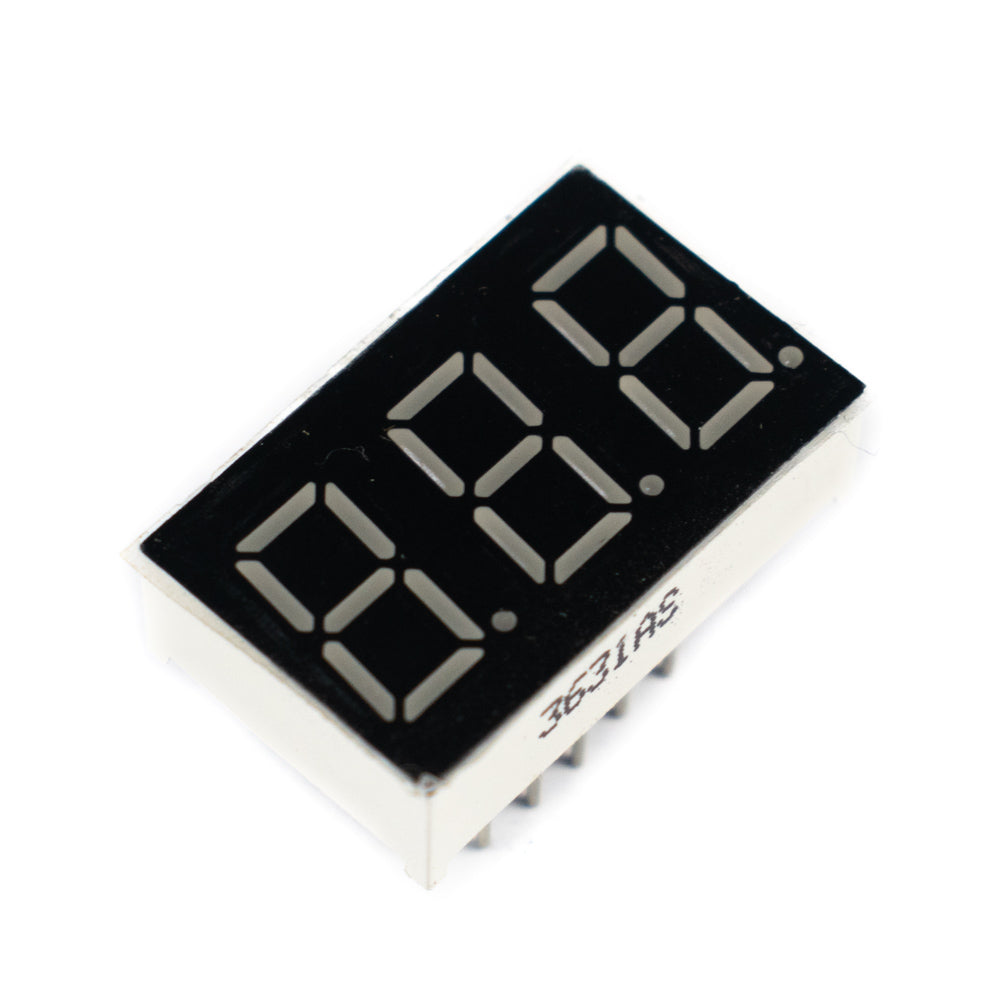

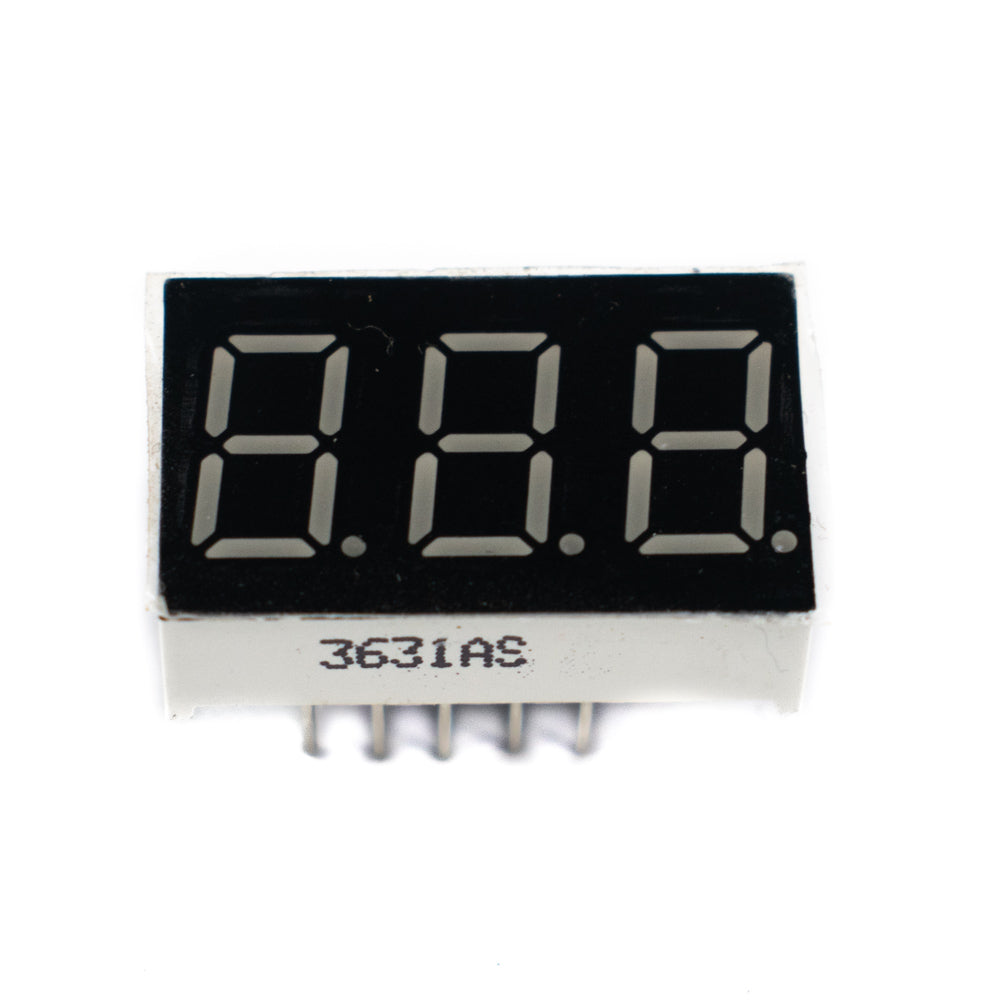

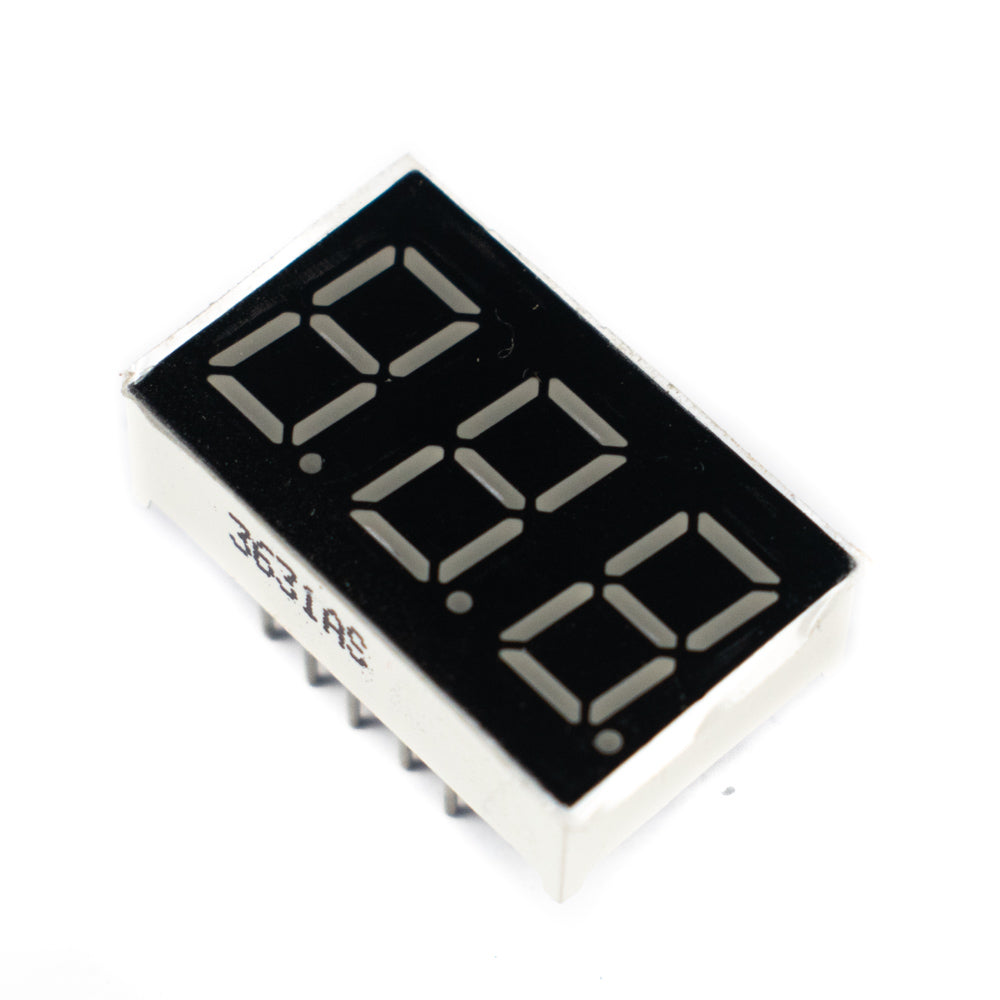

0.36 inch 3 Digit Seven Segment Display-Red (Common Cathode)

0.36 inch 3 Digit Seven Segment Display-Red (Common Cathode)

Regular price Rs. 20.00
Regular price Rs. 25.00 Sale price Rs. 20.00

A seven-segment display (SSD) is a type of electronic display device for displaying decimal numbers that is less complicated than dot matrix displays. The section is made up of seven LED lines or segments. The...


SKU: SSD28
Vendor: electronifyindia

Availability: Low stock


delivery-truck Estimated Delivery Date : 8 - 12 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa

View full details

Description

A seven-segment display (SSD) is a type of electronic display device for displaying decimal numbers that is less complicated than dot matrix displays. The section is made up of seven LED lines or segments. The display's parts light up in various configurations to display numbers from 0 to 9. The code or any encoder-decoder IC that delivers the command to light LEDs to make combinations and display numbers. We've had little 7-segment displays and large 7-segment displays for a long time, but now we have something in the middle. The 3 × 7-segment digits on these common-anode displays include one decimal point per digit. The LEDs have a maximum forward current of 20mA and a forward voltage of 1.9VDC. Many modern consumer gadgets, such as microwave ovens, washing machines, and air conditioners, employ seven section displays. They are a simple but effective way to display numerical data like time or quantity. Since they are made out of LEDs, they are a low-cost option for displaying information. They are widely appreciated for their features like accuracy, clarity, and optimum functionality.

Features:

  • Bright Red LED chip
  • Type: Common Cathode
  • Low Current Consumption
  • High Brightness
  • Easy to Use with PCB Mounting as well as on Breadboard
Specifications
Colour Red
Operating Current 10mA
Type Common Cathode
No. of Pins 11
Display Size 0.36 inch
Number of Digits 3
Size 22.7*14.0*13.5mm
