TL074C 074C Low Noise JFET Quad Operational Amplifier

TL074C 074C Low Noise JFET Quad Operational Amplifier

SKU Code: # CC115

Tax included. Shipping calculated at checkout.

In stock

View full details

Description

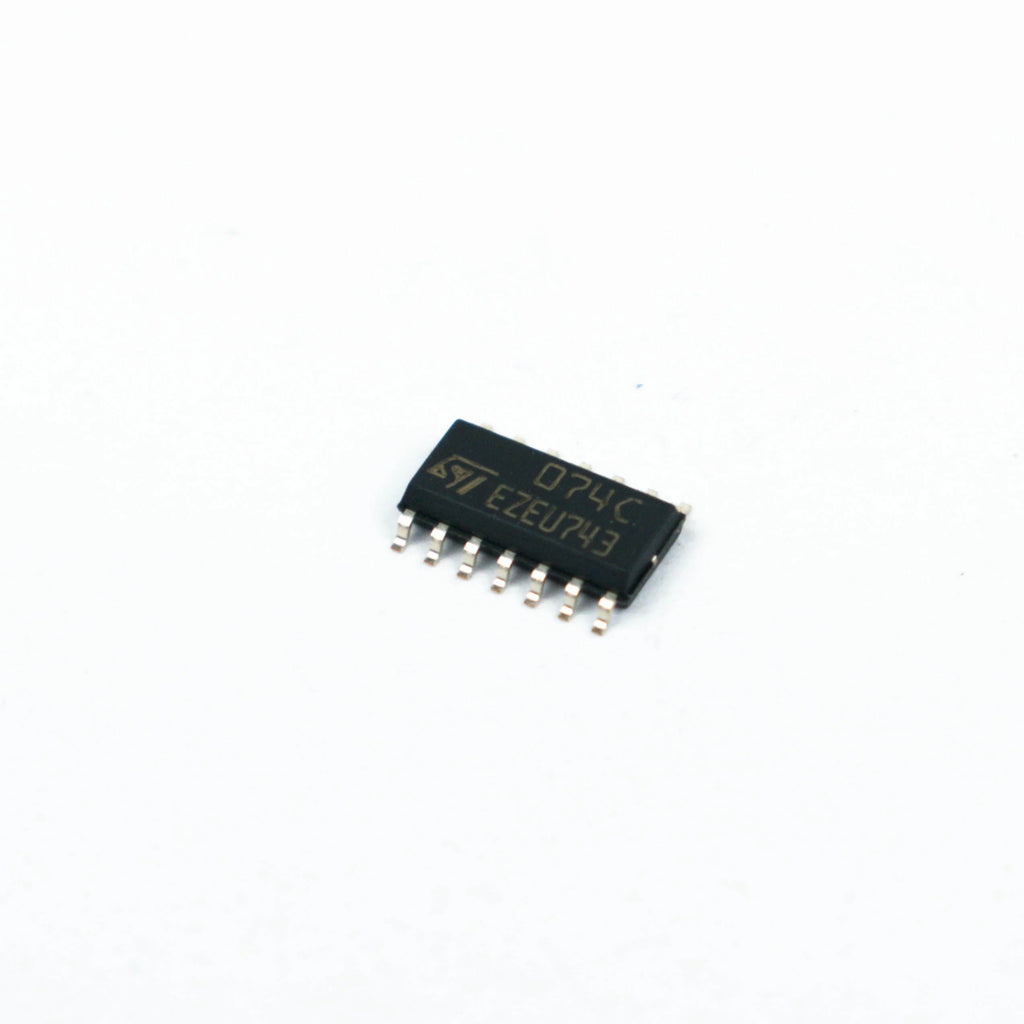

STMicroelectronics TL074C is a low-noise JFET quad operational amplifier. This device is a high slew rate(13-V/µs), low input bias, low offset current, and low offset voltage temperature coefficient. It is a high voltage JFET and bipolar transistors in a monolithic integrated circuit. It is a surface mount(SMD) SO14 package active component with 14-pins. It has four op-amps inside it and Each op-amp can function independently.

Datasheet

Features

  • Low input bias and offset current
  • Output short-circuit protection
  • Wide common-mode (up to VCC+) and differential voltage range
  • High input impedance JFET input stage
  • Low harmonic distortion: 0.01% (typical)
  • Latch-up free operation
Specifications
 Model TLO74C
 Brand STMicroelectronics
 Supply Voltage (VCC) 6-36V
 Input Voltage (VI) ±15V
 Differential input voltage (VID) ±30V
 Power Dissipation (PTOT) 680mW
 Operating Free-Air Temperature range  0~70°C
 Storage Temperature Range -65~150°C
 Mounting Type SMD
 Slew Rate (Type) 13 V/µs
 No. of Channel 4
