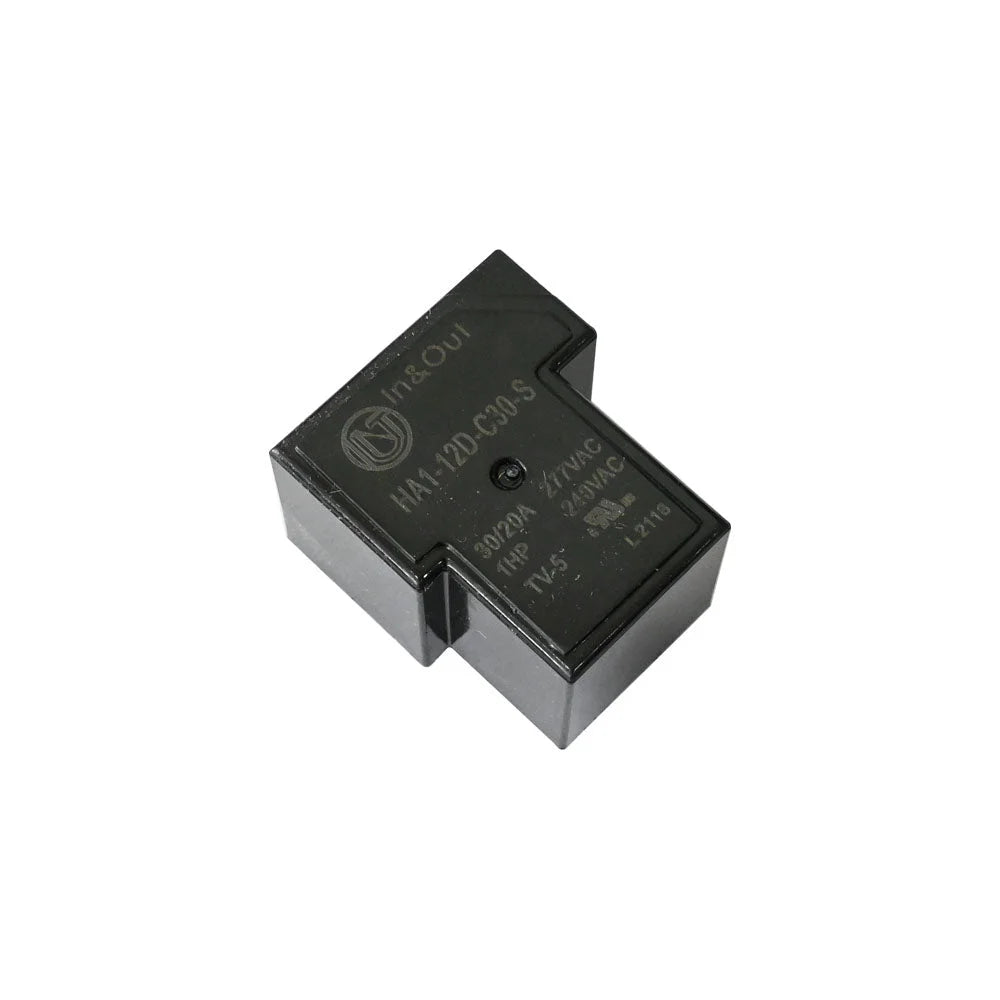

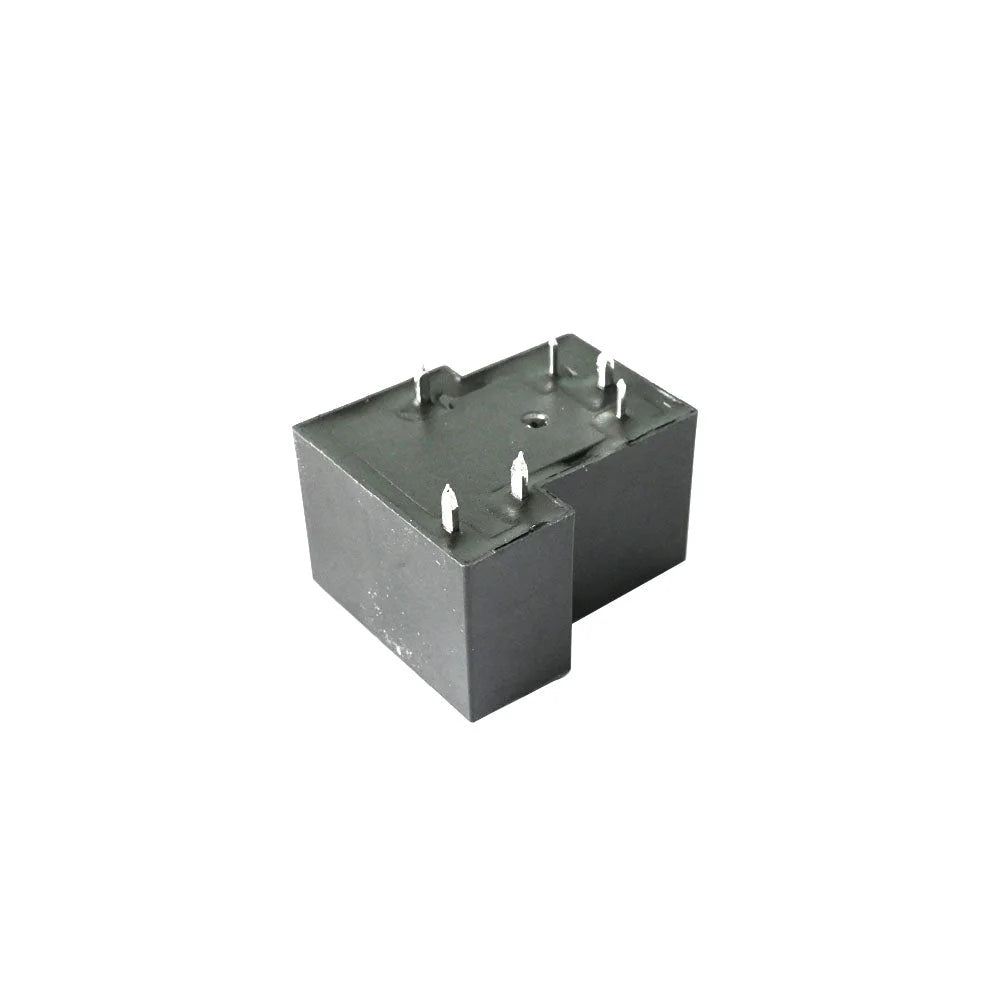

HA1-12D-C30-S 12-24V DC 30A High Current Power Relay

HA1-12D-C30-S 12-24V DC 30A High Current Power Relay


It's a  T-Shape general-purpose Relay 12-24V DC 30A. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control...


SKU: HH256
Vendor: ElectronifyIndia

Availability: In stock


delivery-truck Estimated Delivery Date : 8 - 12 December, 2024

Return rules summary

  • Returns accepted for 7 days
  • Free return shipping
  • No restocking fee

Safe checkout

Shopify Secure Amazon Pay Amex Diners Club Discover Google Pay Visa

View full details

Description

It's a  T-Shape general-purpose Relay 12-24V DC 30A. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.

Applications:

  • Relays are electrically operated switches
  • It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
  • Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
  • The operating voltage of a relay is generally in DC.
Specification
Model HA1-12D-C30-S
Type High Current Power Relay
Operating Voltage  12-24V DC
AC Coil Voltage  277V AC/ 30A
AC Coil Voltage
240V AC/ 20A
Mounting Type Through Hole
Size (L,W,H) 32 x 27 x 20 mm
No. of Terminals  6 Pin
Quantity  2
