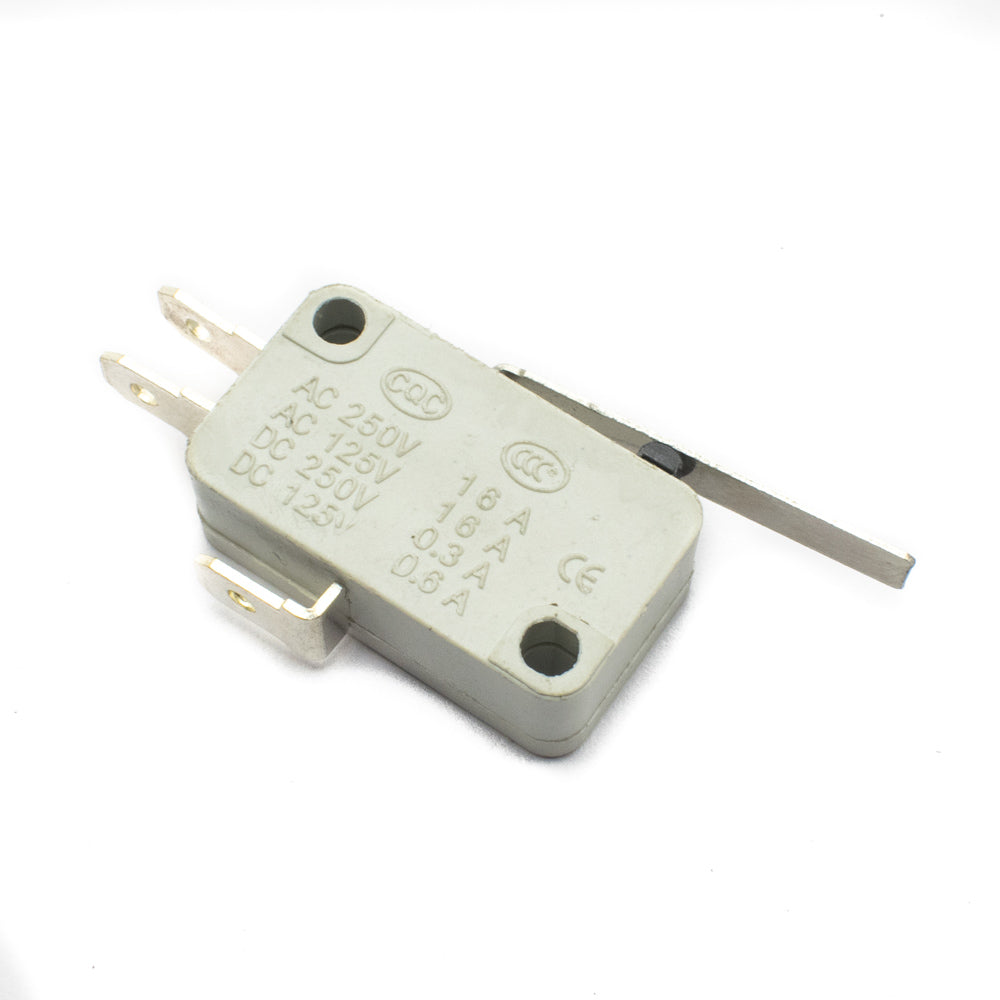

16A 250V Micro Limit Lever Push Button Switch

16A 250V Micro Limit Lever Push Button Switch

SKU Code: # LA03

Rs. 19.00
Rs. 19.00
Tax included. Shipping calculated at checkout.

In stock
View full details

Description

This 16A 250V Micro Limit Lever Push Button Switch uses a physical lever to actuate and operate the switch. lever switches function as simple on/off switches that operate using a lever or handle to toggle the switch between the two positions. This Single Pole Double Throw (SPDT) is a micro switch that needs a very less amount of force to operate. They are very reliable, fast and efficient to use. This switch can be configured into NO or NC (normally open -Normally closed) configuration.

Specifications

AC Current ratings

250V - 16A, 125V - 16A

DC Current ratings

250V - 0.3A, 125V - 0.6A

Insulation Resistance

50MΩ 500V DC

No. of pins

3
Type SPDT

Configuration

NO and NC (Normally open- Normally closed)

Lever Size

27.6mm

L*B*H

48.1*20.9*21.3mm
