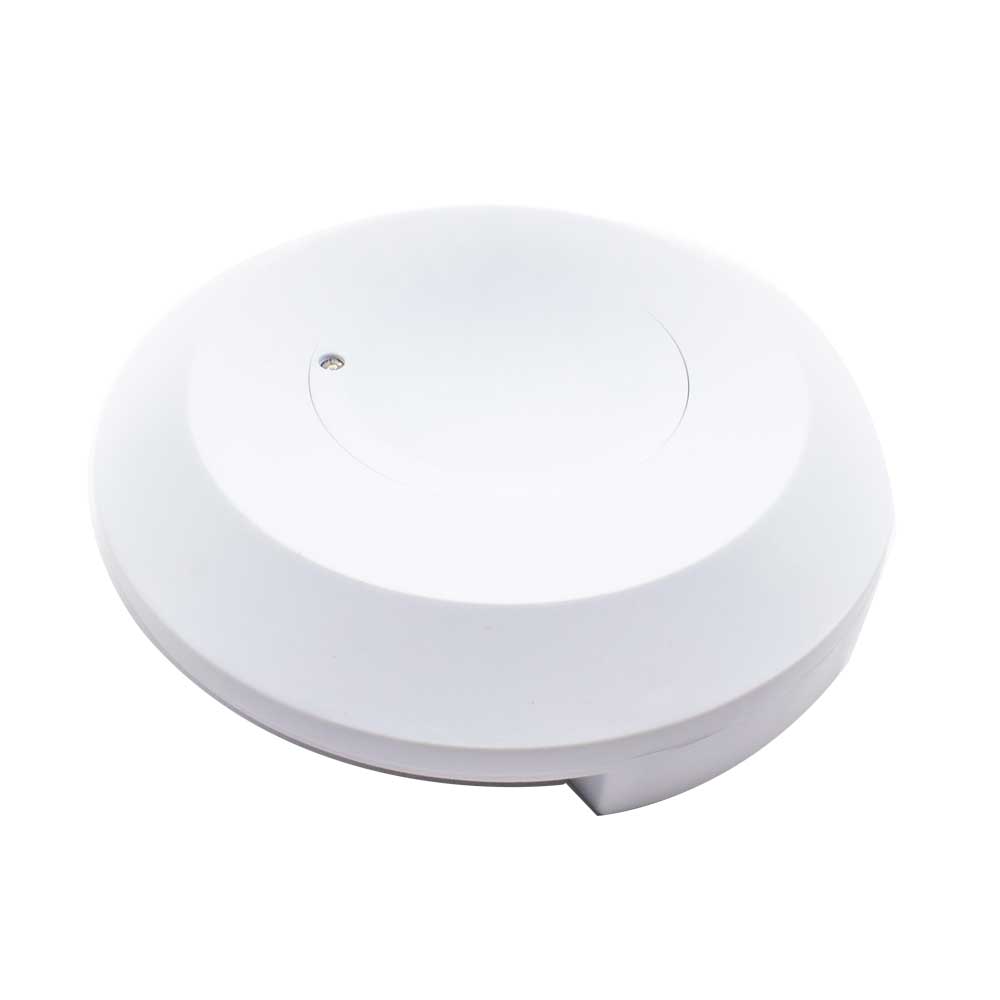

220V-240V AC Microwave Radar Sensor Light Switch

220V-240V AC Microwave Radar Sensor Light Switch

SKU SKU Code: # UPS03

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

In stock

View full details


This product is a new energy-saving device that uses a microwave sensor mould and an integrated circuit with a high-frequency electromagnetic wave (5.8GHz). It combines functions such as automation, convenience, safety, energy conservation, and practicality. Detectors are responsible for the wide detecting field. It functions by detecting human movement. When one reaches the detection field, the load can begin immediately and automatically recognize day and night. Its setup is simple, and it has a wide range of applications. Doors, panes of glass, and thin walls can all be penetrated for detection. Microwave Sensor detects human movements over a large field of view. This microwave Sensor, with 360-degree motion detection capabilities, keeps your home and office secure by generating an alarm as soon as it detects any human motion.


  • Can identify day and night: It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light of less than 3 LUX when it is adjusted to the "3" position (min). As for the adjustment pattern, please refer to the testing pattern.
  • Sensitivity Adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 1 meter and high sensitivity could be 8m.
  • Time Delay Retrigger: When it receives the second induction signal within the first induction, it will restart to time from the moment.
  • Time-Delay Adjustable: Minimum time is 10sec±3sec, Maximum time is 12min±1min.


  • Microwave Base
  • LUX, Sensitivity adjustable
  • Highly Sensitive
  • Time-Delay is adjustable
Voltage 220-240V AC
Detection Range 360°
Detection Distance 1-8m
Power frequency 50/60Hz
Ambient Light 3~2000 LUX
Time Delay Min. 10sec±3sec, Max. 12min±
Rated Load 800W
HF System 5.8GHz CW radar, ISM band
Transmission Power <0.2mW
Installing Height 2-6 Meter
Power Consumption 0.9W
Detection Motion Speed 0.6-1.5m/s
