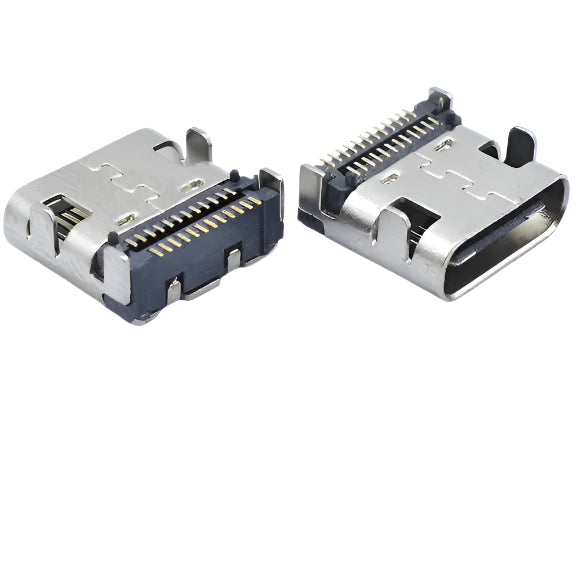

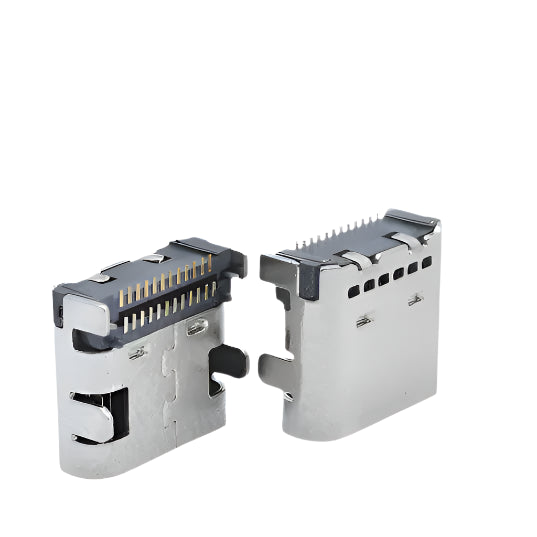

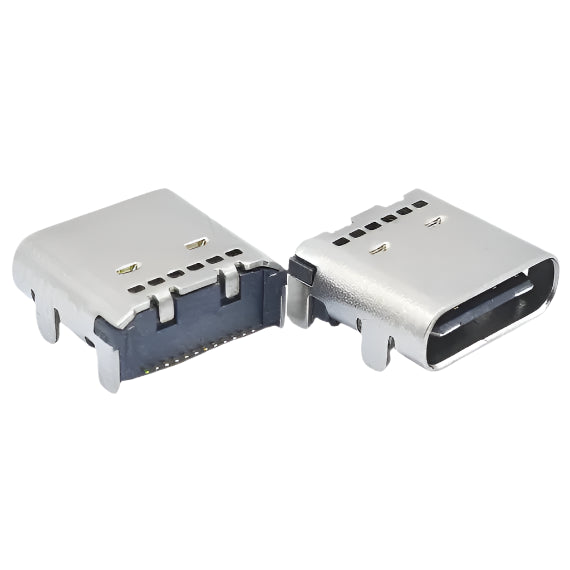

The 24-Pin USB Type-C SMD Connector Female is a next-generation interface designed for compact, high-speed, and power-efficient applications. This connector supports USB 3.1 and USB Power Delivery (USB PD) standards, enabling faster data transfers and higher power delivery capabilities. With its Surface Mount Device (SMD) design, it is ideal for integration into a wide range of modern electronic devices.
Features
- Connector Type: USB Type-C, Female.
- Pin Count: 24 pins for full-featured USB communication.
- Mounting Style: Surface Mount Device (SMD) for efficient PCB integration.
- Reversible Design: Supports plug-in from both directions.
- USB Standards: Compatible with USB 2.0, 3.1, and USB Power Delivery.
- High Power Delivery: Supports up to 100W (20V/5A).
- Durability: Withstands up to 10,000 plug-and-unplug cycles.
- Compact Design: Perfect for space-constrained applications.
Applications
- Smartphones and tablets.
- Laptops and ultrabooks.
- Power banks and charging devices.
- IoT and embedded systems.
- Automotive electronics.
- Consumer electronics such as headphones and wearable devices.
Specification
| Parameter | Value |
|---|---|
| Connector Type | USB Type-C, Female |
| Pin Count | 24 |
| Mounting Style | Surface Mount Device (SMD) |
| USB Standard | USB 2.0, USB 3.1, USB Power Delivery (PD) |
| Power Delivery | Up to 100W (20V, 5A) |
| Data Transfer Rate | Up to 10Gbps (USB 3.1 Gen 2) |
| Durability | 10,000 plug cycles |
| Operating Temperature | -25°C to 85°C |
| Material | High-quality metal and plastic |

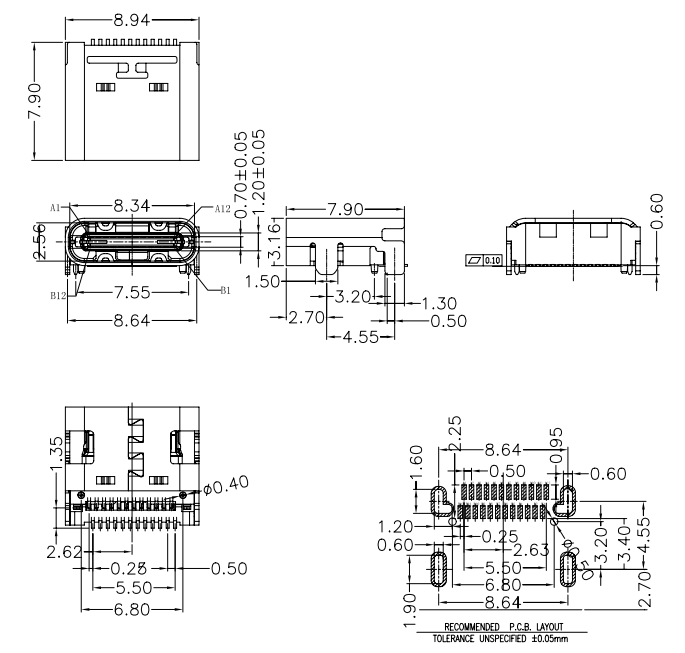

| Dimensions | Standard USB Type-C footprint |
