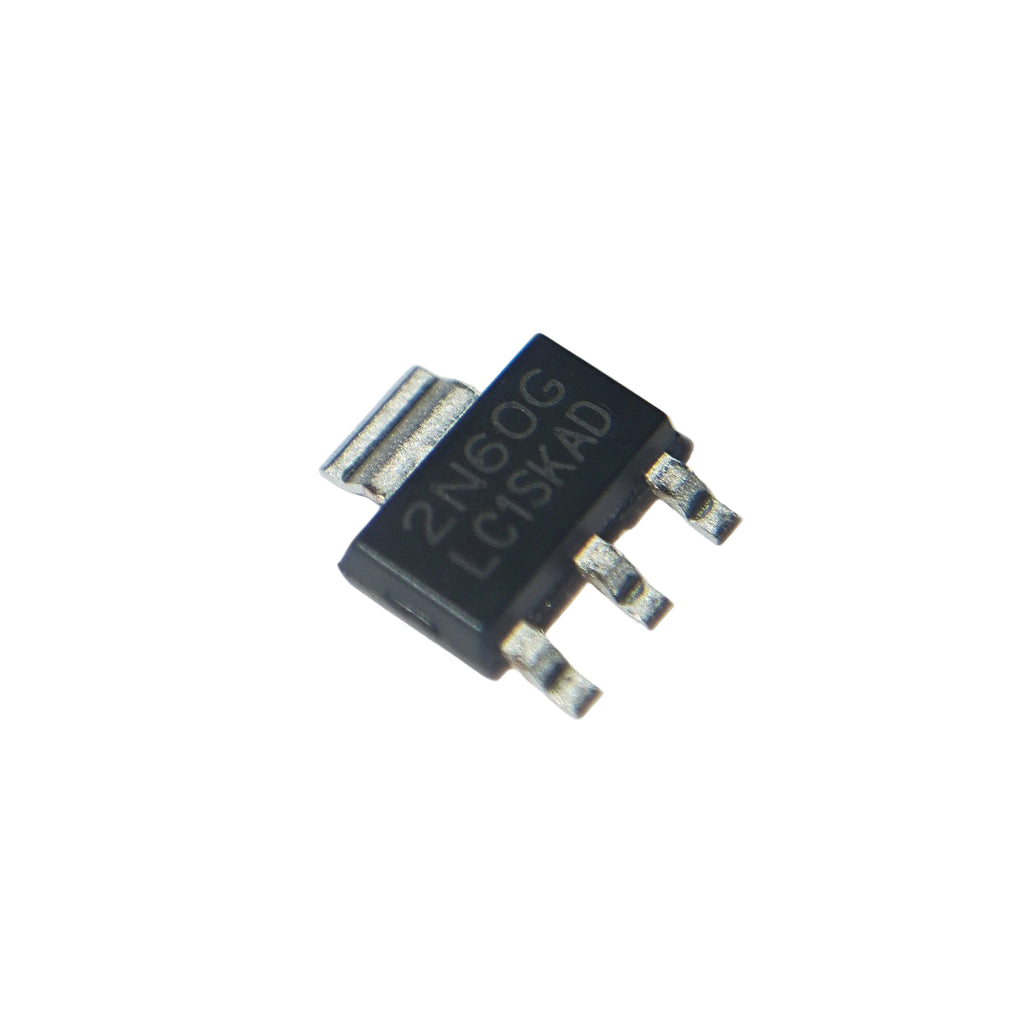

The 2N60G is a high-voltage N-Channel Power MOSFET designed for efficient switching applications in power supplies, LED drivers, battery chargers, and industrial control circuits. With a maximum drain-source voltage of 600V and a continuous drain current of 2A, this MOSFET delivers low switching losses, fast switching performance, and excellent reliability. Housed in a compact SOT-223 surface-mount package, the 2N60G is ideal for space-saving PCB designs and automated SMT assembly.
Features
- N-Channel enhancement mode Power MOSFET.
- 600V drain-source voltage (VDSS).
- 2A continuous drain current.
- Low gate charge for fast switching.
- Low ON resistance for improved efficiency.
- High avalanche energy capability.
- Compact SOT-223 surface-mount package.
- Suitable for high-frequency switching.
- Excellent thermal performance.
- RoHS compliant.
Applications
- Switch-mode power supplies (SMPS).
- LED driver circuits.
- AC-DC power converters.
- Battery chargers.
- Power management systems.
- Industrial automation equipment.
- DC-DC converter circuits.
- Home appliances.
- Electronic ballasts.
- General-purpose power switching.
Specification
| Parameter | Value |
| Part Number | 2N60G |
| Device Type | N-Channel Power MOSFET |
| Package | SOT-223 (SMD) |
| Drain-Source Voltage (VDSS) | 600V |
| Continuous Drain Current (ID) | 2A |
| Gate-Source Voltage (VGS) | ±30V |
| RDS(on) | Low On-Resistance |
| Mounting Type | Surface Mount (SMD) |
| Operating Temperature | -55°C to +150°C |
| RoHS Compliance | Yes |
