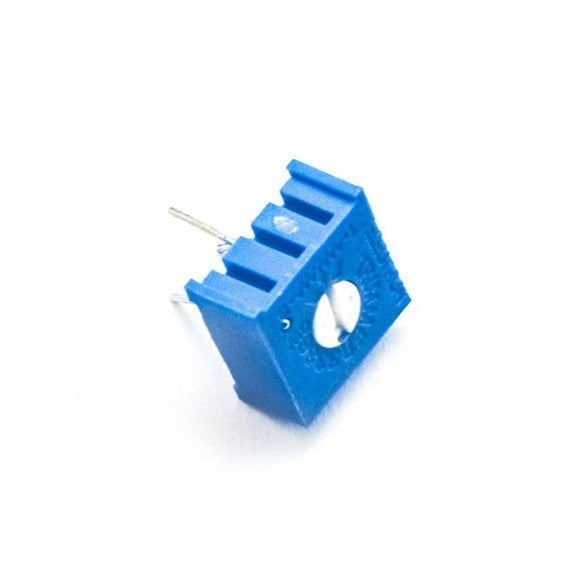

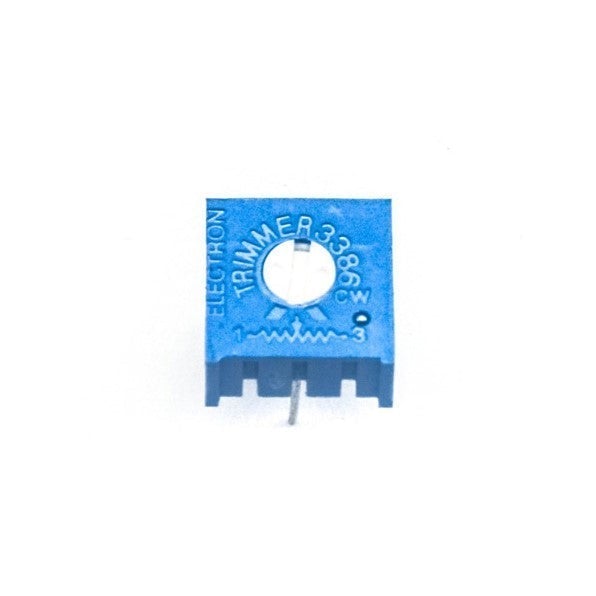

500k Ohm (504) Trimpot Trimmer Potentiometer 3386 Package

500k Ohm (504) Trimpot Trimmer Potentiometer 3386 Package

SKU SKU Code: # TRP05

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

In stock

View full details


A general-purpose board-mountable preset is also known as potentiometers, trimpots, and other names, but it is essentially simply a variable resistor. Trimmer/Trimpots is a high-accuracy variable resistor with three terminal pins that can be mounted on a PCB. As the trimpot is rotated, the voltage between the terminals changes. It is used to change different parameters in an electronic circuit, such as voltage, current, and so on. The outer two pins are attached to Vcc and 0V, respectively, while the centre pin outputs a variable voltage between 0v and Vcc as the rotary cermet rotates. The potentiometer is simple to install on a PCB and adjust with a screwdriver.

Resistance 500kΩ (504)
Turn 270°
Tolerance 10%
Number of Pins 3
Power 500mW
Dimension 9.5x9.5x5mm
