5mm Piranha LED is a type of high-power LED known for its brightness and durability. Unlike standard 5mm LEDs, Piranha LEDs have a wider base and are often used in
Features
of 5mm Piranha LEDs:-
High Brightness: Piranha LEDs typically emit brighter light compared to standard 5mm LEDs, making them suitable for high-visibility
Applications
- Automotive Lighting: Brake lights, turn indicators, and dashboard lights.
- Backlighting: Displays, panels, and signage.
- Decorative Lighting: Decorative displays and signs that require bright, wide-angle lighting.
- Traffic Signals and Outdoor Displays: For high visibility even in daylight.
Pin Configuration:

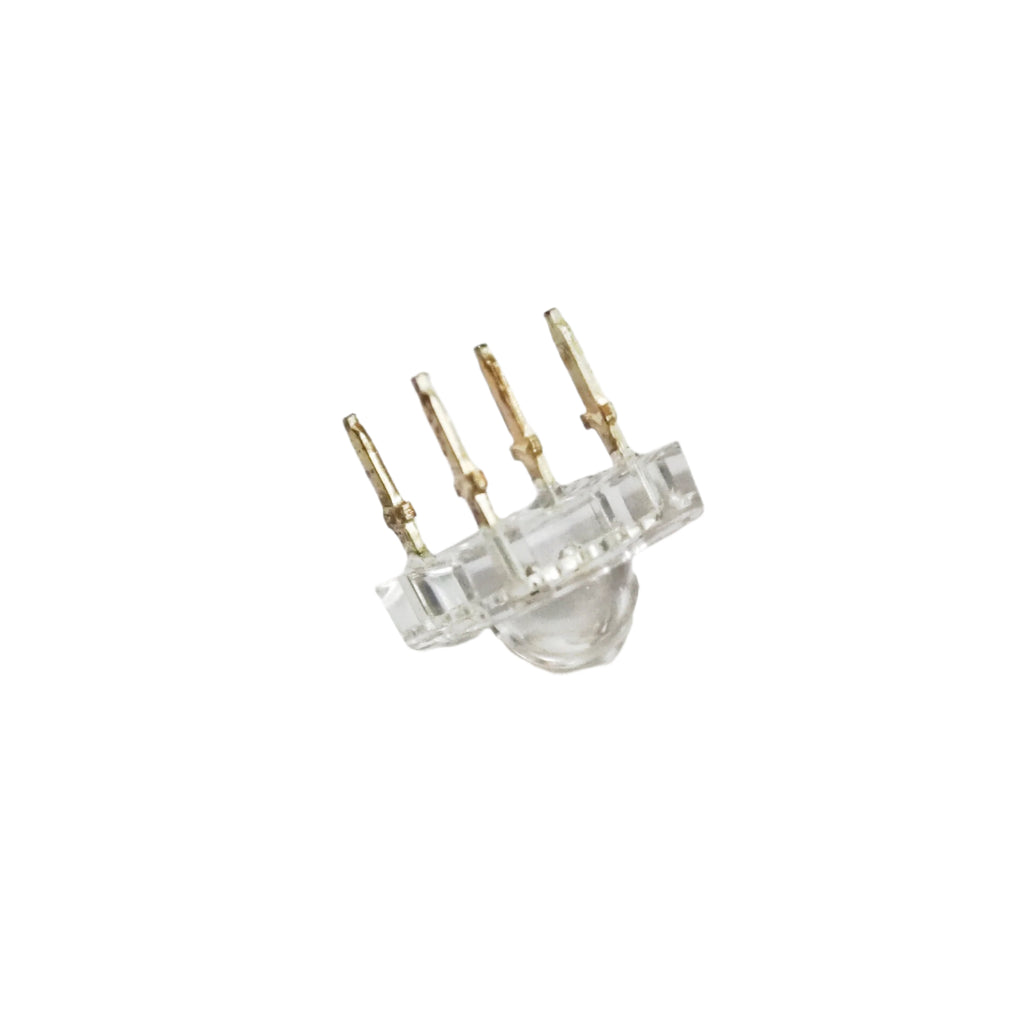

- 4-Pin Design: The Piranha LED has a square-like shape with four pins (two for the anode and two for the cathode), which provides mechanical stability and ensures better heat dissipation compared to traditional two-pin LEDs.
How to Use a 5mm Piranha LED:
-
Current-Limiting Resistor: Ensure you use a current-limiting resistor to prevent burning out the LED. The value of the resistor will depend on the LED's forward voltage and current rating.
-
Power Supply: Check the operating voltage (usually 2V-3.6V depending on the color) and current rating (usually 20-30mA).
-
Connection: Connect the anode (positive) pin of the LED to the positive terminal of the power source, and the cathode (negative) pin to the ground, ensuring the current-limiting resistor is in place.
Specification
| Parameter | Value |
|---|---|
| LED Type | 5mm Piranha LED (White) |
| Emitting Color | White |
| Lens Type | Clear or Diffused |
| Forward Voltage (Vf) | 3.0V - 3.6V |
| Forward Current (If) | 20mA - 30mA |
| Luminous Intensity | 15,000 - 25,000 mcd (millicandela) |
| Viewing Angle | 120° - 140° |
| Wavelength (CCT) | 6000K - 7000K (Cool White) |
| Power Dissipation | Typically 0.06W - 0.1W |
| Reverse Voltage | Max 5V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Lifespan | 50,000+ hours |
| Dimensions | 5mm diameter, square base with 4 pins |
| Pins | 4 (2 anode, 2 cathode for better stability and heat dissipation) |
| Material | InGaN (Indium Gallium Nitride) for white LEDs |
