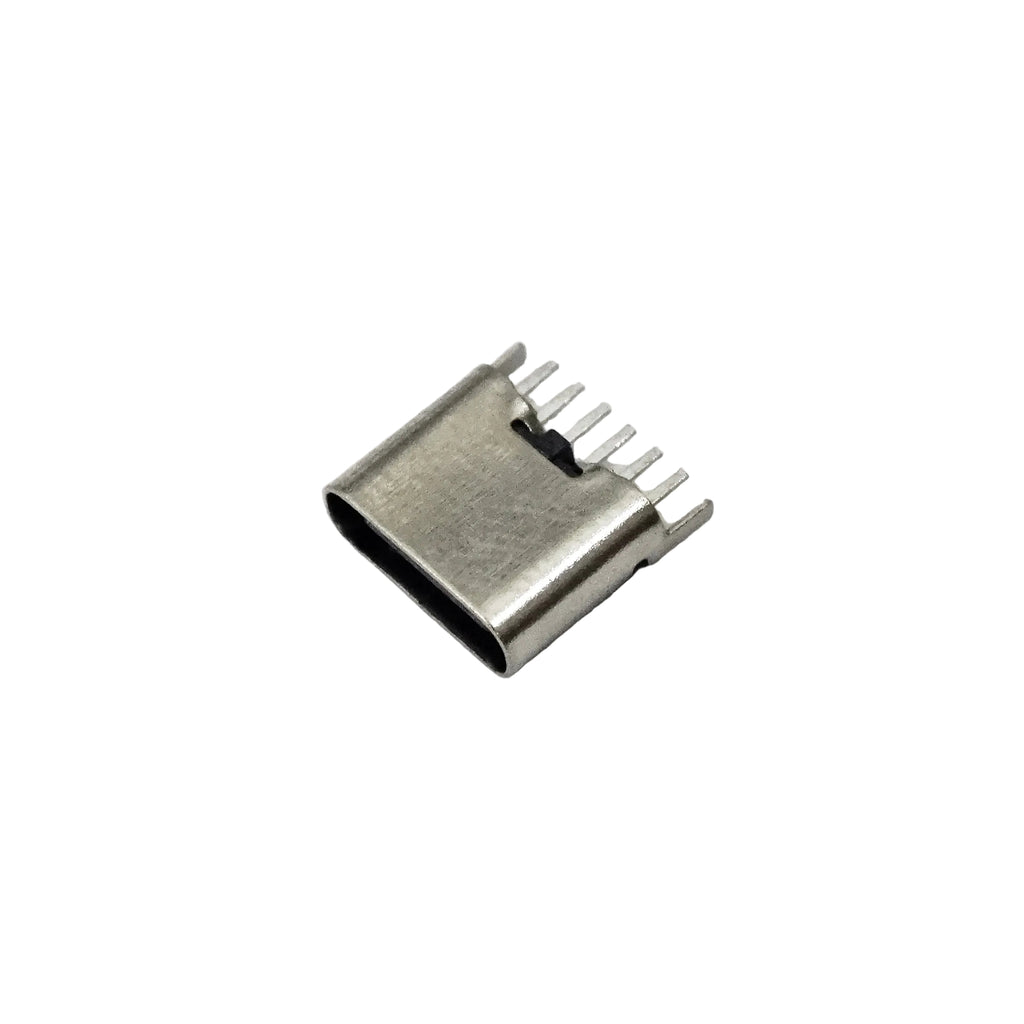

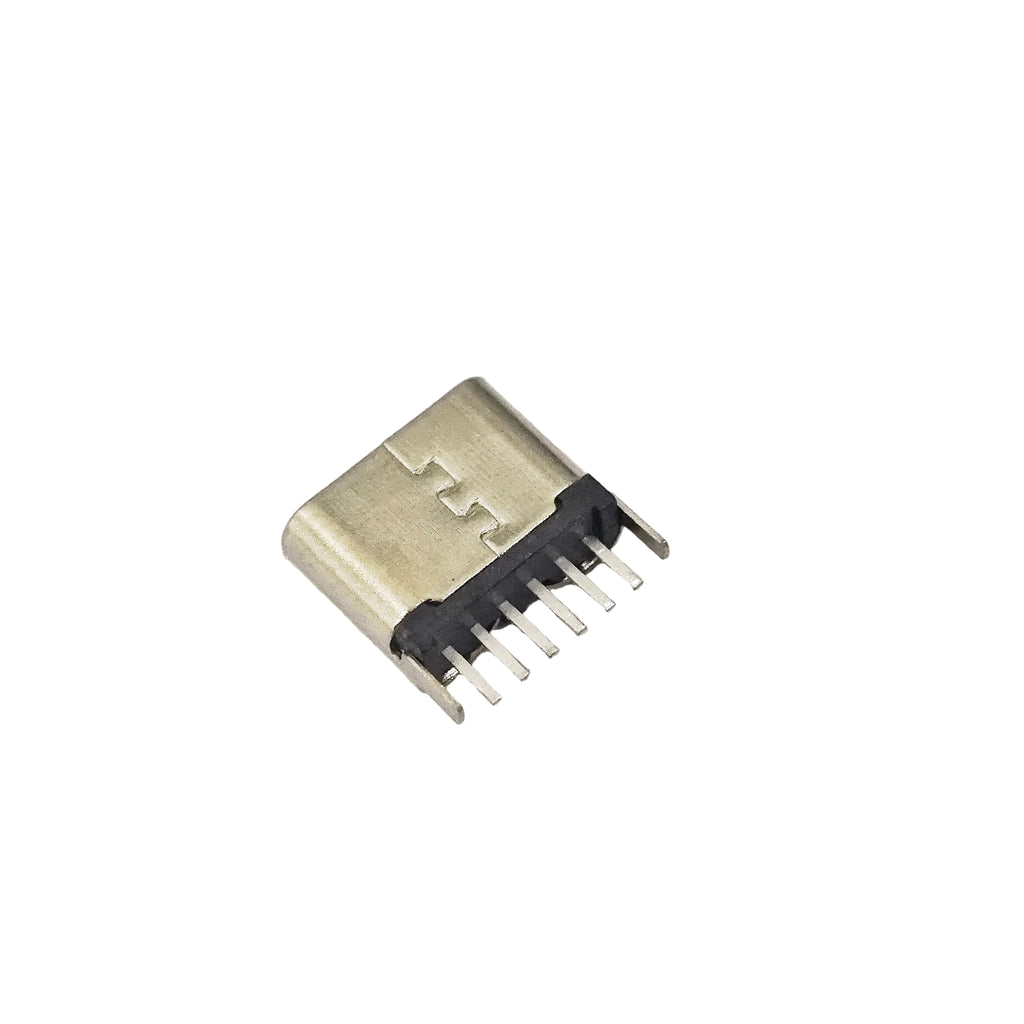

6.8mm Type C Vertical Connector is a compact USB Type-C female connector designed for PCB mounting in embedded systems, charging circuits, and custom electronic projects. Featuring a vertical mounting orientation and 1.6mm PCB pin compatibility, this connector provides reliable power and data connectivity while ensuring secure attachment to circuit boards. It is widely used in mobile devices, IoT hardware, charging modules, and DIY electronics.
Features
- USB Type-C female connector with vertical mounting design
- Compatible with 1.6mm PCB thickness
- Compact structure suitable for space-constrained PCB layouts
- Supports stable power and data transmission
- Durable metal shell for improved mechanical strength
- Reliable contact pins ensure secure connectivity
- Suitable for repeated plug-in and removal cycles
- Ideal for embedded electronics and charging applications
Applications
- Mobile charging and power supply circuits
- Custom PCB design and embedded systems
- IoT devices and development boards
- DIY electronics and prototyping projects
- Battery charging modules and portable devices
- Consumer electronics and repair applications
- USB Type-C interface implementation on PCBs

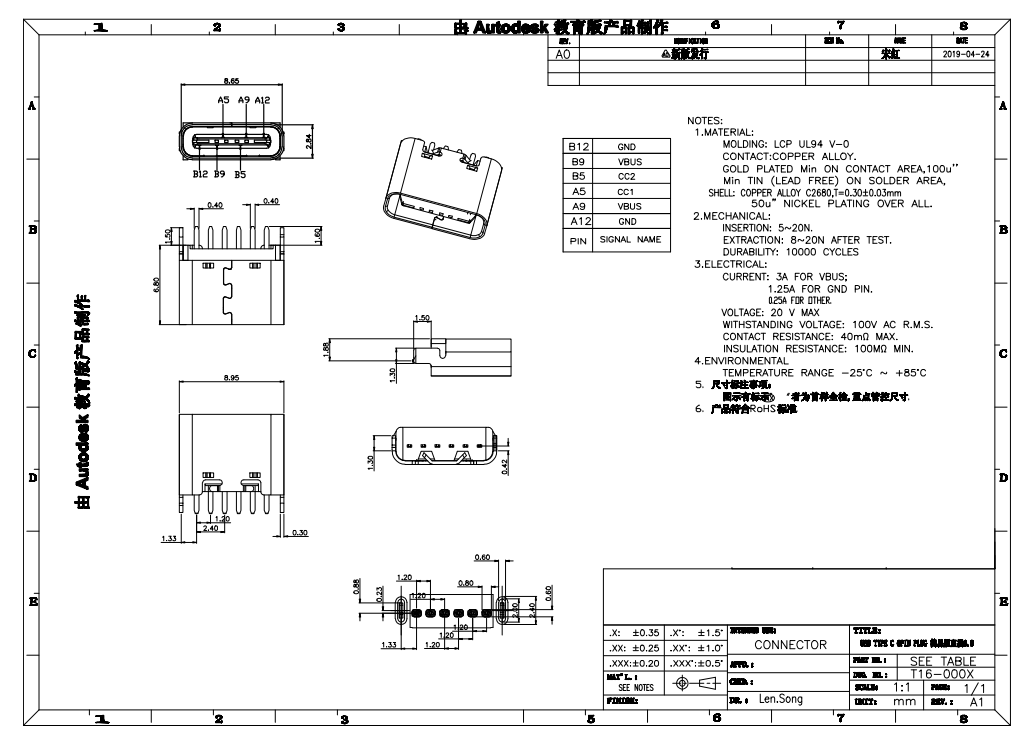

Specification
| Connector Type | USB Type-C Female Connector |
| Mounting Orientation | Vertical |
| PCB Thickness Compatibility | 1.6mm |
| Connector Width | 6.8mm |
| Mounting Type | Through Hole / PCB Mount |
| Application | Power Supply and Data Transfer |
| Housing Material | Metal Shield with Insulated Base |
| Compatible Devices | Embedded Boards, Charging Circuits, Custom PCBs |
