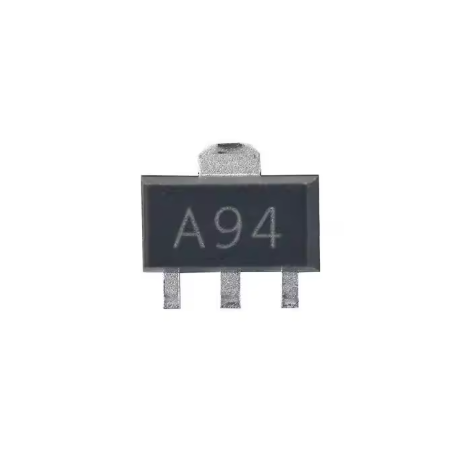

The A94 is a high-voltage PNP bipolar junction transistor (BJT) designed for switching and amplification applications requiring high collector-emitter voltage capability. Featuring a maximum collector-emitter voltage of 400V and a collector current of 200mA, this transistor is housed in a compact SOT-89 surface-mount package, making it suitable for space-constrained PCB designs. The A94 is commonly used in power supplies, LED drivers, switching circuits, industrial controls, and general-purpose electronic applications.
Features
- PNP bipolar junction transistor (BJT).
- High collector-emitter voltage rating of 400V.
- Maximum collector current of 200mA.
- Compact SOT-89 surface-mount package.
- Low saturation voltage.
- High switching performance.
- Suitable for high-voltage applications.
- Reliable thermal performance.
- Compatible with automated SMT assembly.
- RoHS compliant.
Applications
- Switch-mode power supplies (SMPS).
- LED driver circuits.
- High-voltage switching applications.
- Industrial control systems.
- Power management circuits.
- Signal amplification.
- Battery-powered equipment.
- Consumer electronics.
- General-purpose electronic switching.
- Embedded electronic designs.
Specification
| Parameter | Value |
| Part Number | A94 |
| Transistor Type | PNP BJT |
| Package | SOT-89 |
| Collector-Emitter Voltage (VCEO) | 400V |
| Collector Current (IC) | 200mA |
| Power Dissipation | Approximately 1W (Package Dependent) |
| Mounting Type | Surface Mount (SMD) |
| Application | Switching and Amplification |
| Operating Temperature | -55°C to +150°C |
| RoHS Compliance | Yes |
