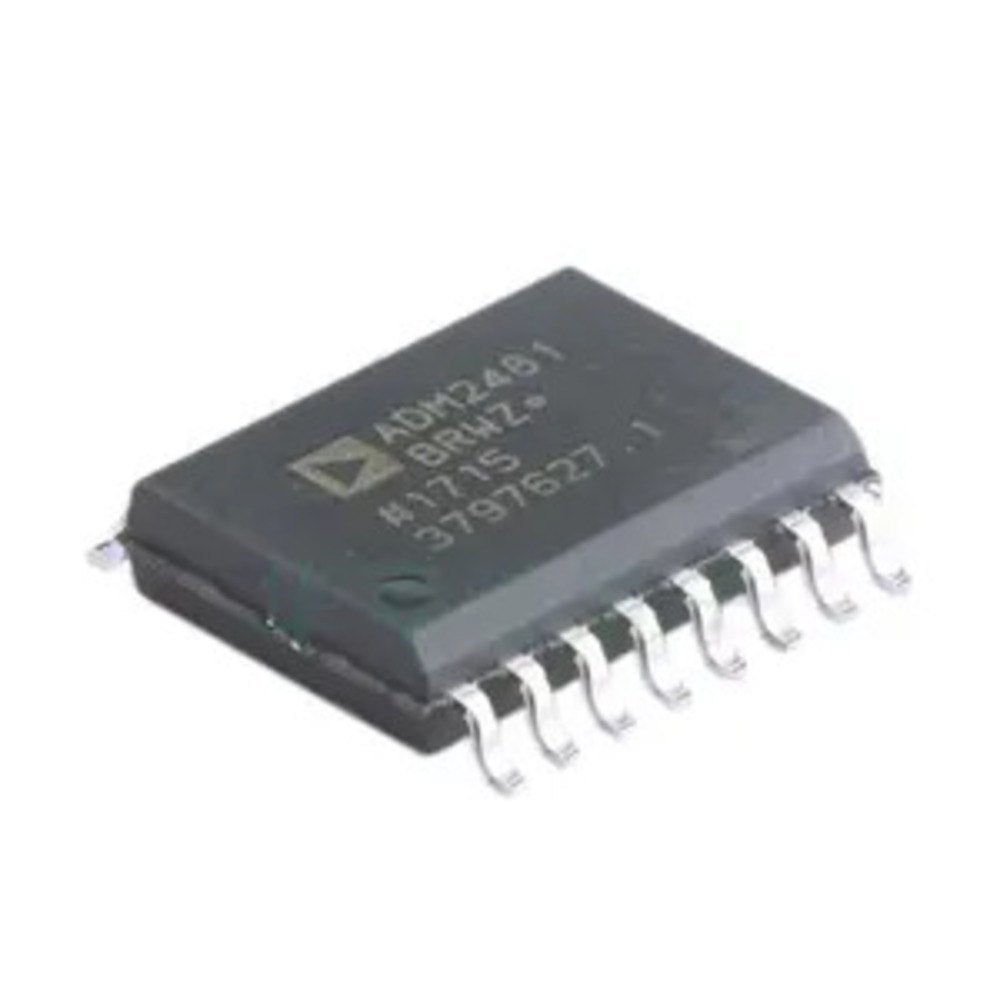

ADM2481BRWZ SO16WB RS-485 Transceiver with Digital Isolation is a fully integrated isolated data transceiver designed for reliable RS-485 and RS-422 communication in industrial and automation applications. Combining a high-speed differential transceiver with integrated digital isolation, the device helps protect sensitive circuitry from high-voltage transients, ground loops, and electrical noise. The SO16WB package makes it suitable for compact PCB designs requiring robust communication and isolation performance.
Features
- Integrated RS-485/RS-422 transceiver with digital isolation
- Half-duplex communication interface
- High common-mode transient immunity
- Excellent protection against ground loop issues
- Reliable data transmission in electrically noisy environments
- Integrated isolation reduces external component count
- Low power consumption design
- Compact SO16WB surface-mount package
Applications
- Industrial automation systems
- PLC and process control equipment
- RS-485 communication networks
- Building automation systems
- Smart energy meters and monitoring equipment
- Data acquisition systems
- Motor control and industrial drives
- Embedded communication interfaces
Specification
| Part Number | ADM2481BRWZ |
| Manufacturer | Analog Devices |
| Device Type | Isolated RS-485/RS-422 Transceiver |
| Communication Mode | Half Duplex |
| Interface Standard | RS-485 / RS-422 |
| Isolation Type | Integrated Digital Isolation |
| Package Type | SO16WB |
| Mounting Type | Surface Mount |
| Data Rate | Up to 500 kbps |
| Application | Industrial Communication and Isolation |
