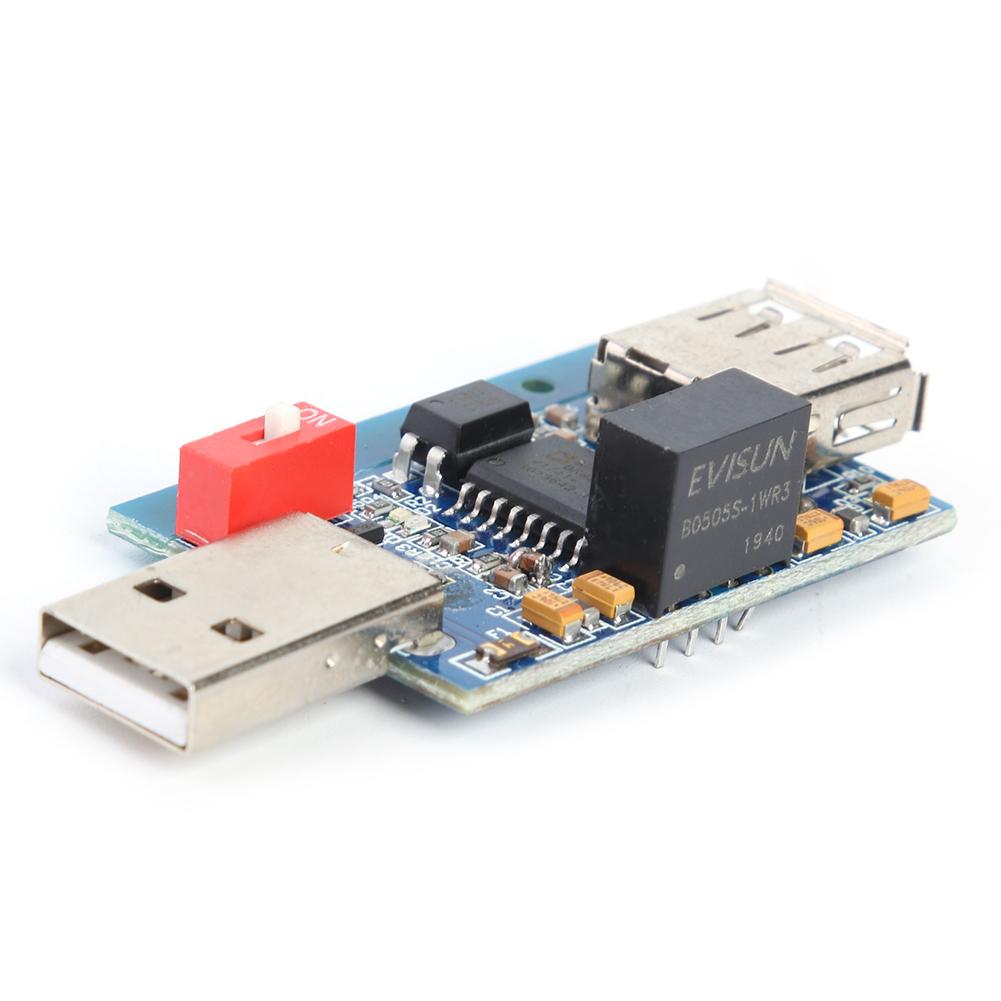

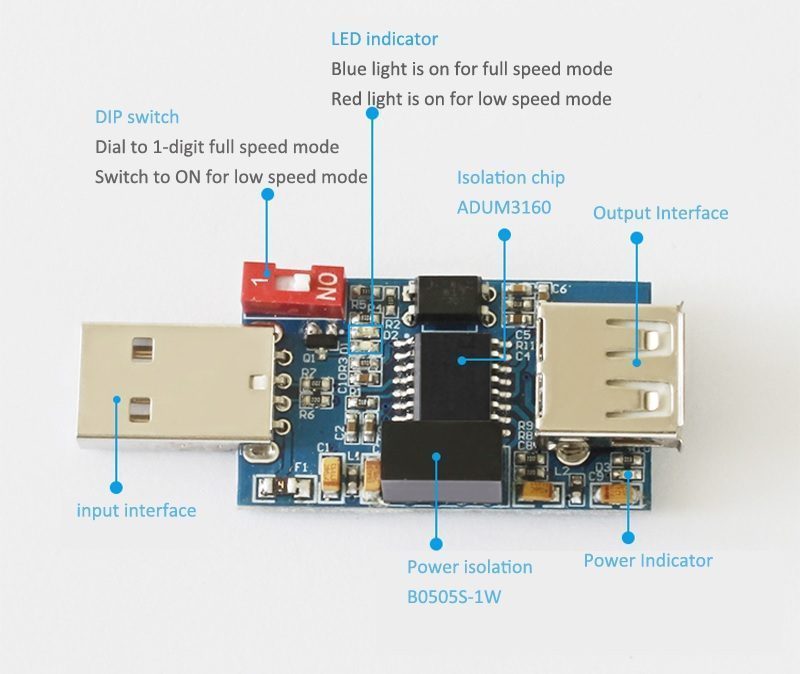

The ADUM3160 USB Isolator Module is a high-performance 1-channel USB-to-USB digital isolator based on Analog Devices’ ADuM3160 chip. It provides up to 1500V isolation between USB host and device, ensuring safe communication and protection from ground loops, noise, and unwanted voltage spikes. This module supports Low-Speed (1.5 Mbps) and Full-Speed (12 Mbps) USB data transfer rates, making it ideal for protecting sensitive equipment, industrial interfaces, and embedded development tools.
Features
- ADuM3160 digital isolator IC for reliable signal isolation
- 1500V isolation between USB host and device
- Supports Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) USB modes
- Protects from ground loops, surges, and electrical noise
- Plug-and-play USB Type-A to USB Type-A interface
- Ideal for isolating oscilloscopes, analyzers, and USB-powered instruments
- Stable operation with onboard power regulation
Applications
- USB isolation for test & measurement equipment
- Protection of microcontroller boards (Arduino, ESP32, STM32)
- Industrial communication and data acquisition
- Breaking ground loops in sensitive audio or instrumentation circuits
- Medical equipment USB interface isolation
- USB debugging tools and development devices
Specification
| Model | ADUM3160 USB Isolator Module |
| Isolation Voltage | 1500V |
| USB Speed Support | 12 Mbps (Full-Speed), 1.5 Mbps (Low-Speed) |
| Channel Count | 1 Channel USB Isolation |
| Input/Output | USB Type-A to USB Type-A |
| Chipset | Analog Devices ADuM3160 |
| Power Supply | USB Powered |
| Application Type | Signal Isolation & Equipment Protection |
