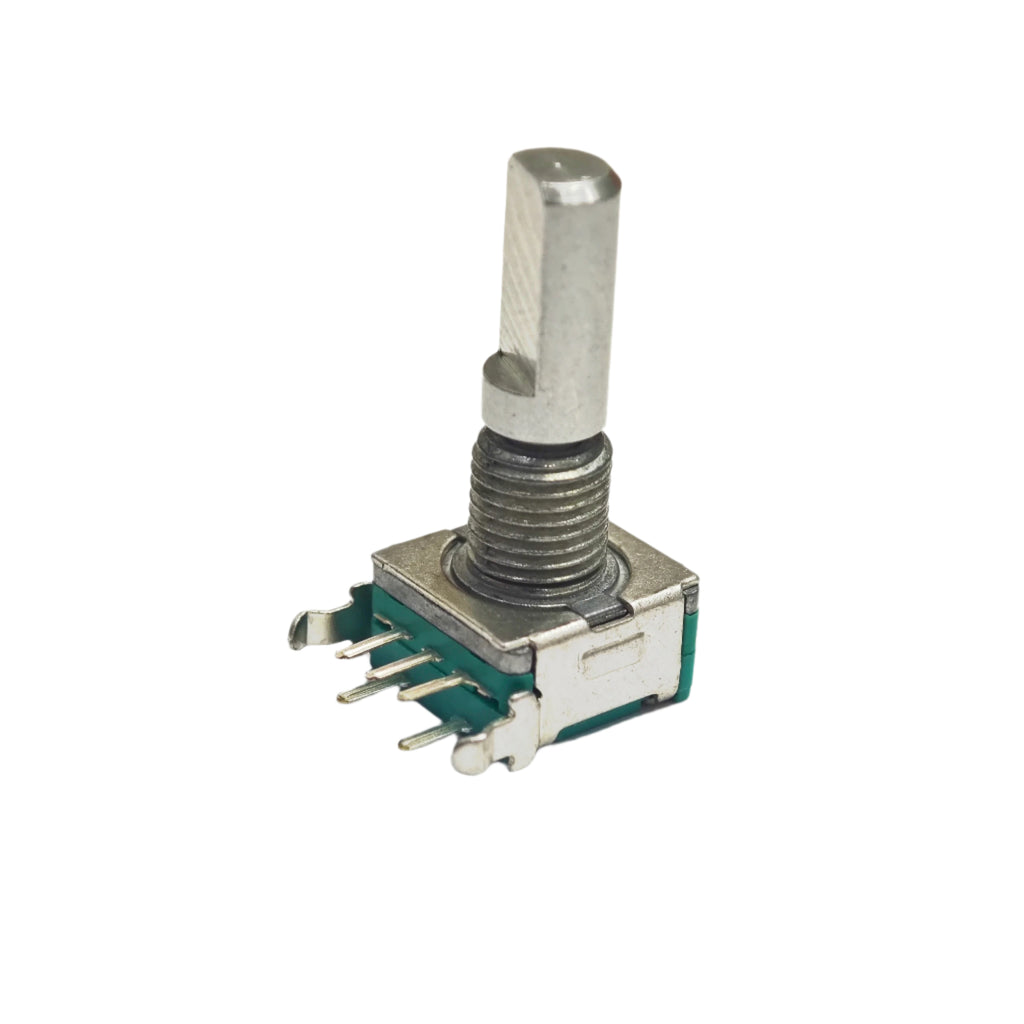

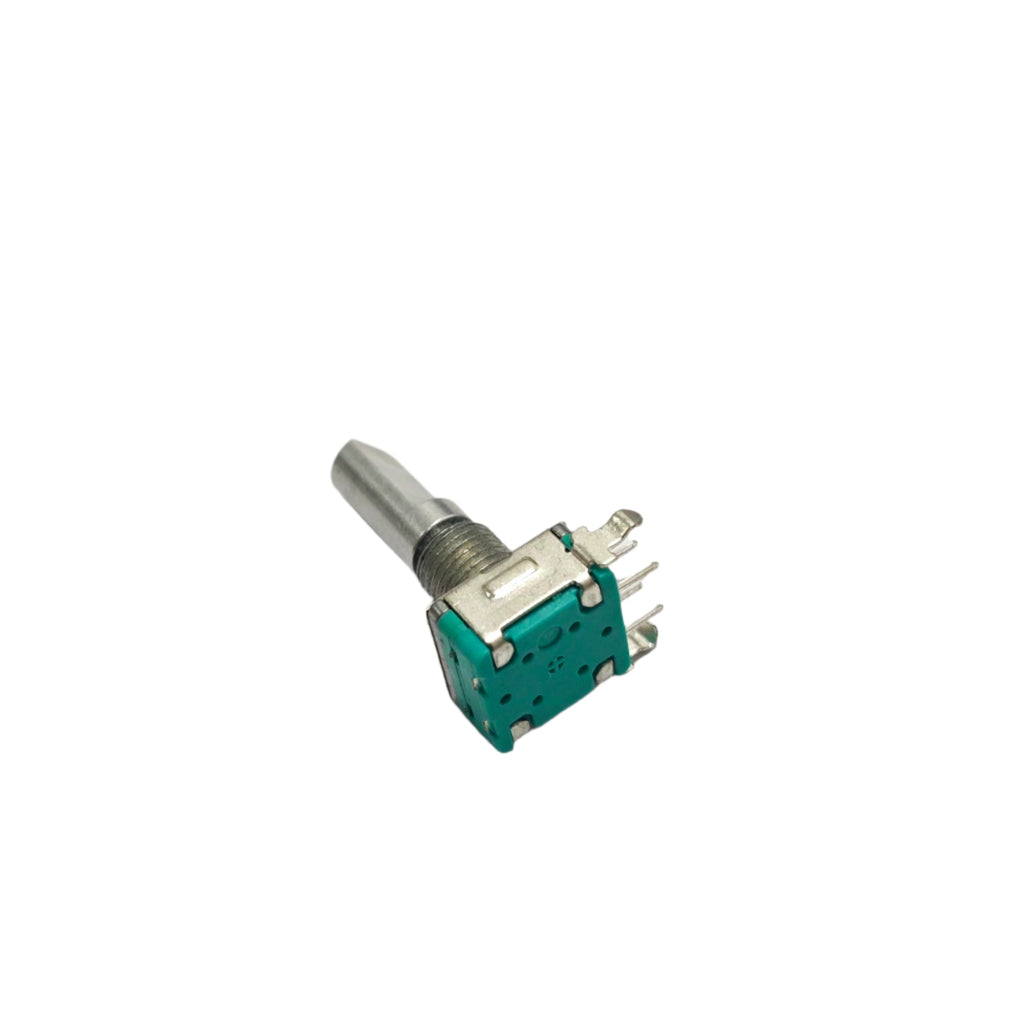

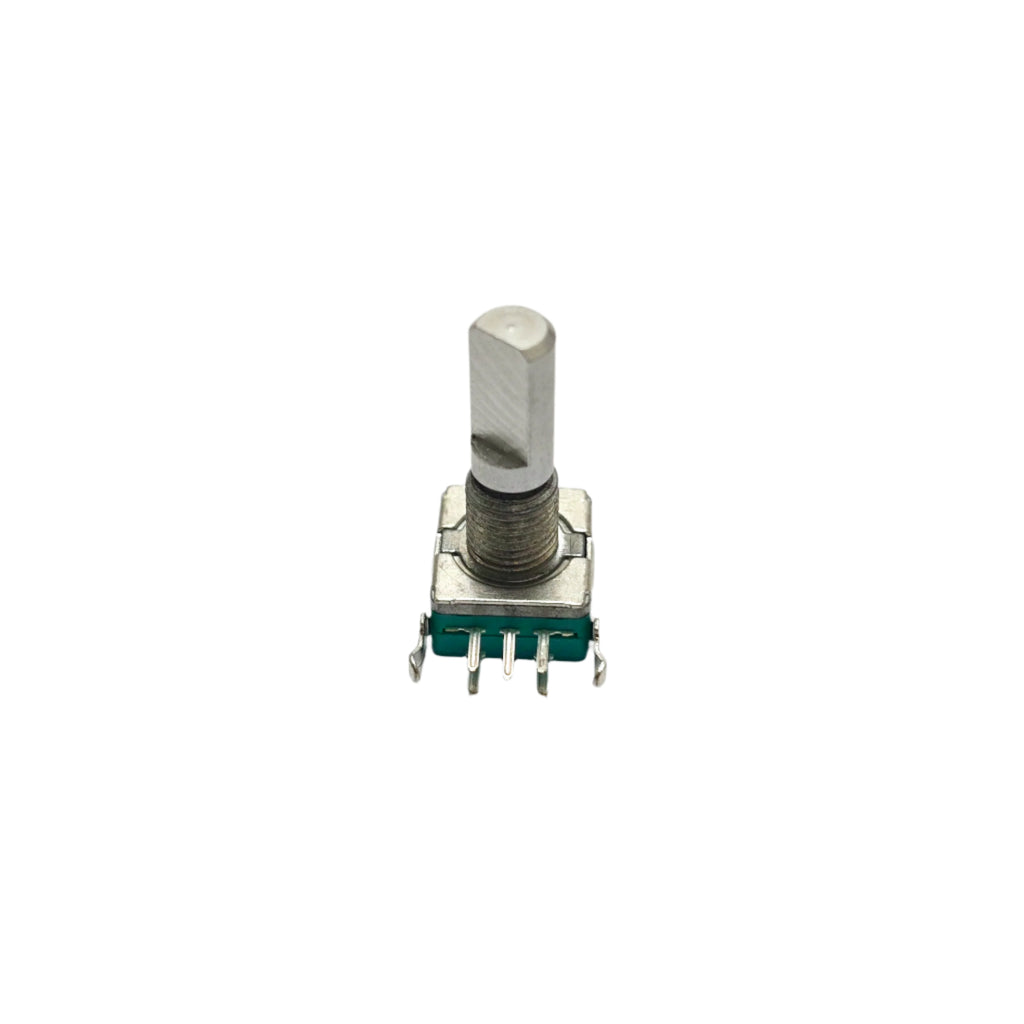

The B103 Rotary Encoder is a compact and precise control component designed for volume adjustment, user interface control, and position sensing applications. With a 12mm D-type shaft, it ensures a firm grip for smooth and precise adjustments. This horizontal mount rotary encoder is ideal for audio equipment, industrial control panels, and embedded systems.
Features
- 10KΩ Resistance (B103) – Provides stable and accurate signal output.
- 12mm D-Type Shaft – Ensures a secure fit for knobs and prevents slipping.
- Horizontal Mount Design – Space-saving and easy to integrate onto PCBs.
- Incremental Rotary Encoder – Outputs digital signals for position tracking.
- Smooth Rotational Feel – Ideal for precise volume and parameter adjustments.
- Long Lifespan – Built for durability in high-usage environments.
Applications
- Audio Equipment – Used for volume and tone control.
- Industrial Control Panels – Adjusts machine settings with precision.
- Embedded Systems – Interfaces with microcontrollers for user input.
- Automotive Electronics – Suitable for dashboard controls and infotainment systems.
- DIY Electronics & Prototyping – Ideal for custom control projects.
Specification
| Parameter | Value |
|---|---|
| Model No. |
EC11B22M-KBP15
|
| Model Name | B103 Rotary Encoder |
| Resistance | 10KΩ |
| Mounting Type | Horizontal |
| Shaft Type | 12mm D-Type Shaft |
| Encoder Type | Incremental |
| Output Signal | Digital Pulses |
| Rotation Angle | 360° Continuous |
| Lifespan | High Durability |
| Application | Audio, Industrial, Automotive |
