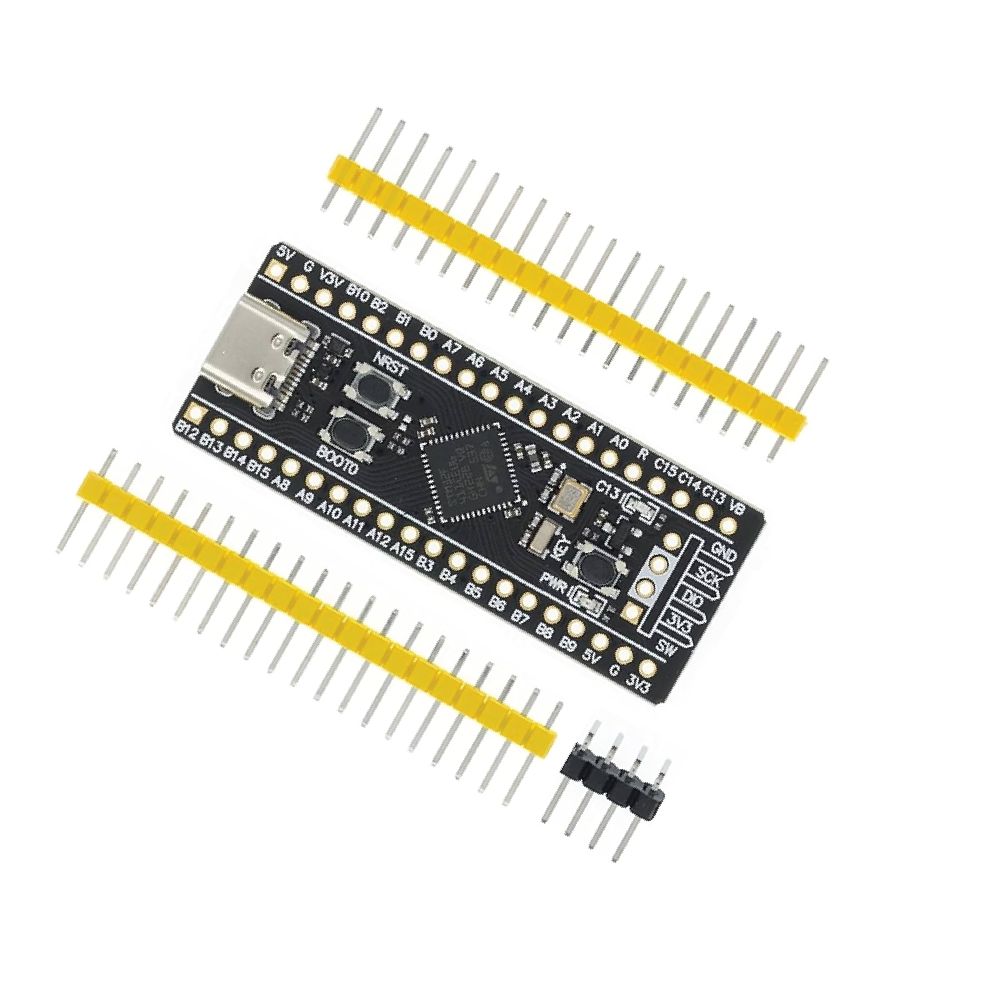

The Black Pill STM32F411 Development Board is a compact and high-performance development platform based on the STM32F411CEU6 microcontroller featuring a 32-bit ARM Cortex-M4 core with hardware floating-point unit (FPU). Running at up to 100MHz with 512KB Flash and 128KB SRAM, it offers excellent performance for embedded systems, robotics, IoT, and industrial control applications. Equipped with a USB Type-C interface, multiple communication peripherals, and extensive GPIO support, this board is compatible with STM32CubeIDE, Arduino IDE, MicroPython, and other popular development environments.
Features
- Powered by STM32F411CEU6 ARM Cortex-M4 microcontroller.
- 100MHz CPU with integrated Floating Point Unit (FPU).
- 512KB Flash memory and 128KB SRAM.
- USB Type-C connector for programming and power.
- Supports STM32CubeIDE, Arduino IDE, and MicroPython.
- Multiple communication interfaces including UART, SPI, I2C, USB OTG, and I2S.
- 25MHz high-speed and 32.768kHz RTC crystal oscillators.
- BOOT, RESET, and User buttons onboard.
- Compact breadboard-friendly design.
- Suitable for professional and hobby embedded development.
Applications
- Embedded system development.
- Internet of Things (IoT) projects.
- Industrial automation and control.
- Robotics and autonomous systems.
- Motor control applications.
- Data acquisition systems.
- USB communication devices.
- Digital signal processing (DSP).
- Smart home and automation projects.
- Educational and research applications.
Specification
| Parameter | Value |
| Board Name | Black Pill STM32F411 Development Board |
| Microcontroller | STM32F411CEU6 |
| Core | 32-bit ARM Cortex-M4 with FPU |
| Maximum Clock Speed | 100MHz |
| Flash Memory | 512KB |
| SRAM | 128KB |
| USB Interface | USB Type-C |
| Communication Interfaces | UART, SPI, I2C, USB OTG, I2S |
| Operating Voltage | 3.3V |
| Programming Support | STM32CubeIDE, Arduino IDE, MicroPython, CMSIS-DAP |
