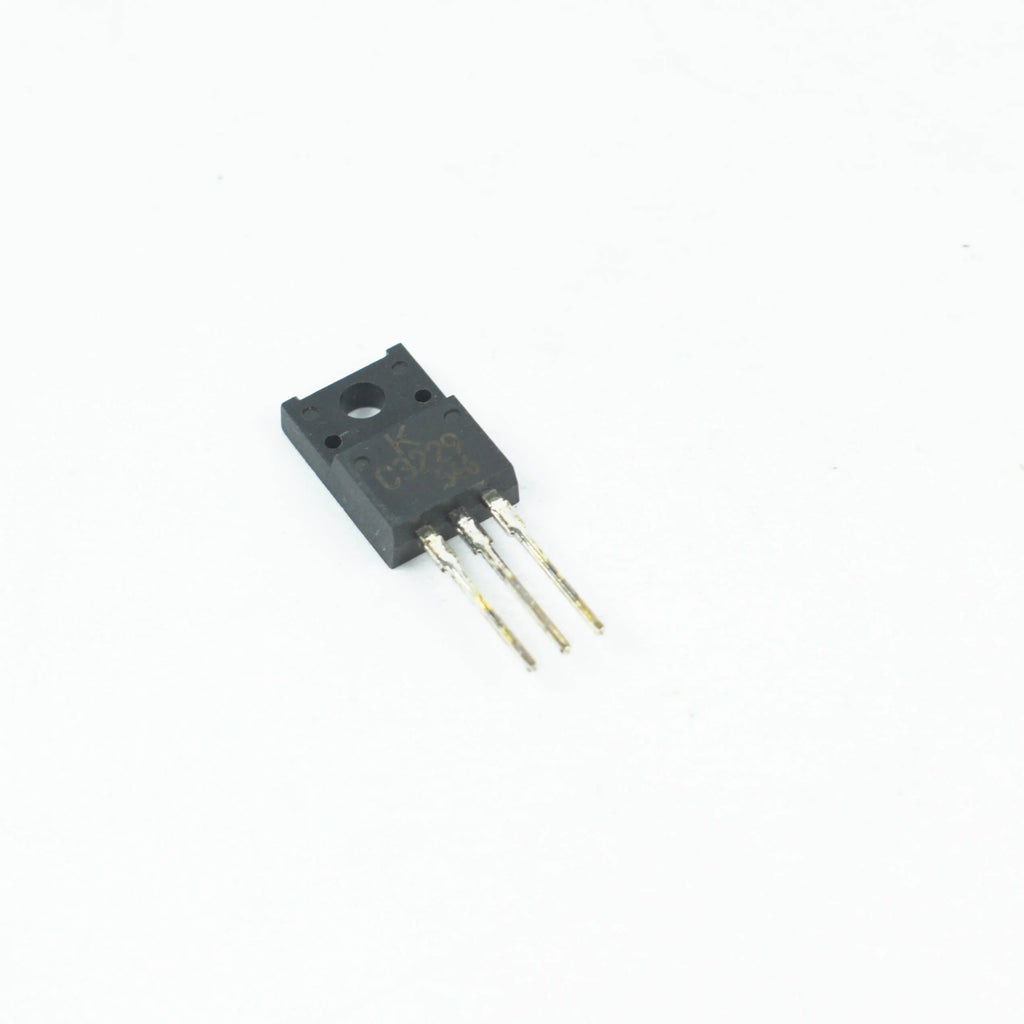

C3229 300V, High Voltage NPN Transistor (Pack of 5)

C3229 300V, High Voltage NPN Transistor (Pack of 5)

SKU Code: # CA207

Rs. 109.00
Rs. 109.00
Tax included. Shipping calculated at checkout.

Low stock
View full details

Description

C3229 is a High Voltage NPN Power Transistor, It is Through Hole active component which consist three terminals Base, Collector and Emitter. It consist of a layer P-type of semiconductor between two layer of N-type doped.

Datasheet

Feature

  • High Breakdown Voltage
  • Small Collector Output Capacitance

Application

  • Color TV Chrome Output application
  • AF Amplifier application
  • Switching application
Specification
Model C3229
Brand Korea
Type NPN Transistor
Collector-Base Voltage (VCBV) 300V
Collector-Emitter Voltage (VCEO) 300V
Emitter-Base Voltage (VEBO) 5V
Collector Current (Ic) 0.1A
Collector Power Dissipation (Pc) 2W
Junction Temperature 150 (Degree C)
Storage Temperature -55~150 (Degree C)
Base Current (IB) 20 mA
