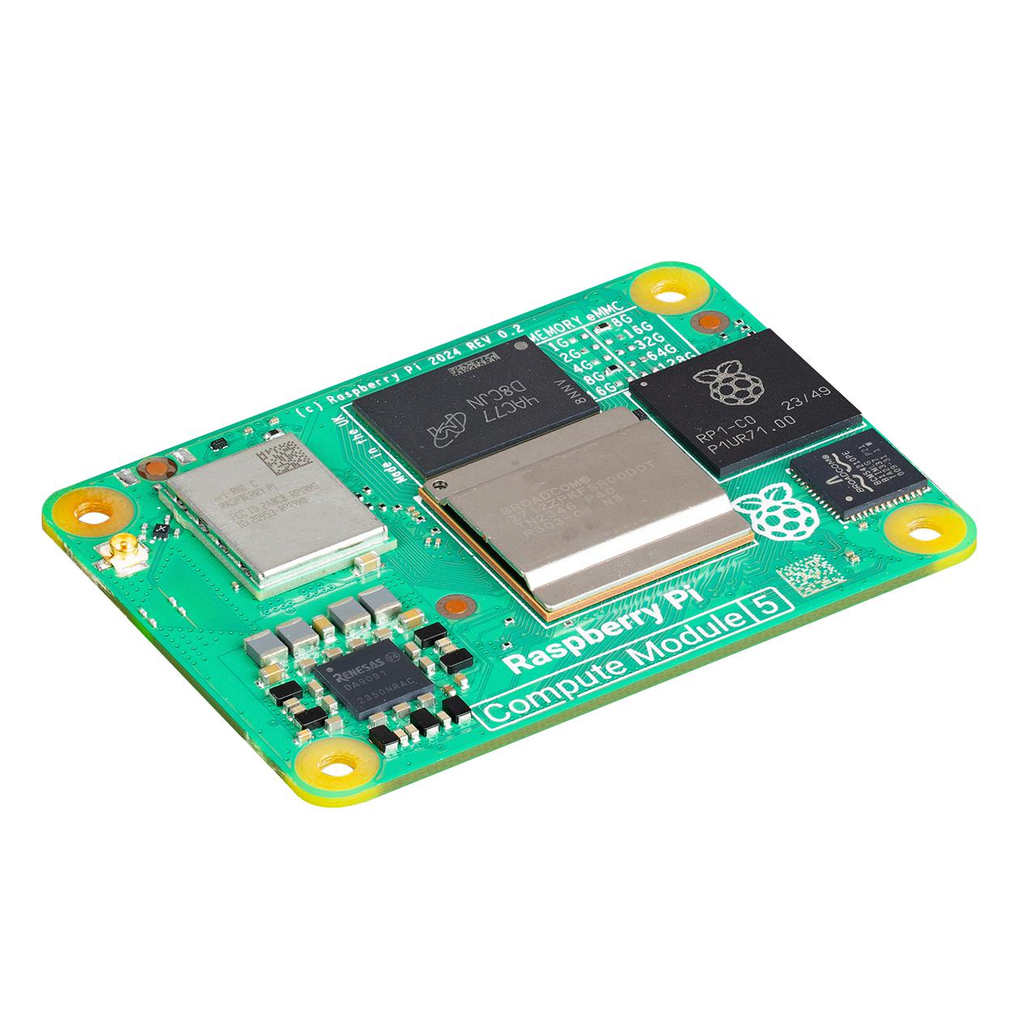

CM5104016 Raspberry Pi Compute Module 5 is a compact and high-performance System-on-Module (SoM) designed for industrial automation, embedded systems, robotics, and IoT applications. Powered by the Broadcom BCM2712 quad-core Cortex-A76 processor, this module includes 4GB LPDDR4 RAM and 16GB onboard eMMC storage, delivering Raspberry Pi 5-level computing performance in a small form factor suitable for custom carrier boards and embedded product development.
Features
- Powered by Broadcom BCM2712 quad-core Cortex-A76 processor
- 4GB LPDDR4 RAM for efficient multitasking and embedded processing
- 16GB onboard eMMC storage for faster boot and reliable data storage
- Compact Compute Module form factor for custom hardware integration
- Supports PCIe, USB, HDMI, GPIO, UART, SPI, and I2C interfaces
- Designed for industrial and commercial embedded applications
- Suitable for edge computing, automation, and AI processing
- Low-power operation with high computational performance
Applications
- Industrial automation and machine control
- IoT gateways and smart devices
- Robotics and autonomous systems
- Edge computing and AI applications
- Digital signage and multimedia systems
- Medical devices and monitoring equipment
- Custom embedded product development
- Networking and communication systems
Specification
| Model | CM5104016 |
| Product Type | Raspberry Pi Compute Module 5 |
| Processor | Broadcom BCM2712 Quad-core Arm Cortex-A76 |
| CPU Speed | Up to 2.4GHz |
| RAM | 4GB LPDDR4 |
| Storage | 16GB eMMC |
| GPU | VideoCore VII |
| Interfaces | GPIO, UART, SPI, I2C, USB, HDMI, PCIe, PWM |
| Operating Voltage | 5V DC |
| Module Size | Approx. 55mm × 40mm |
| Operating Temperature | -20°C to +85°C |
