Digital Volt Meter AMP Meter DC 10A 0-100V

Digital Volt Meter AMP Meter DC 10A 0-100V

SKU SKU Code: # DD63

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

Low stock

View full details

Description

Its digital voltmeter, Voltmeter” is an instrument used for measuring voltage (V), that is the potential difference present between any two points within a circuit.
Features:
  •  0.28’’ device with 5 wires divided into 2 sets.
  • Black, Red are for the power supply and 3 wires to measure the Voltage and Current.
  • Very small and lightweight voltmeter module.
  • Very handy and easy to use.
Specifications
Voltage supply range 4.5V to 24V
Voltage measurement range 0-100V
Current measurement range  0-10A
Voltage error ±0.1%
Current error ±1%
Working temperature -10℃ to 65℃. Blue
Display   Voltage(V)=Red, Current(A) = Blue.
Dimension 48mm x 29mm x 22mm



Further Info

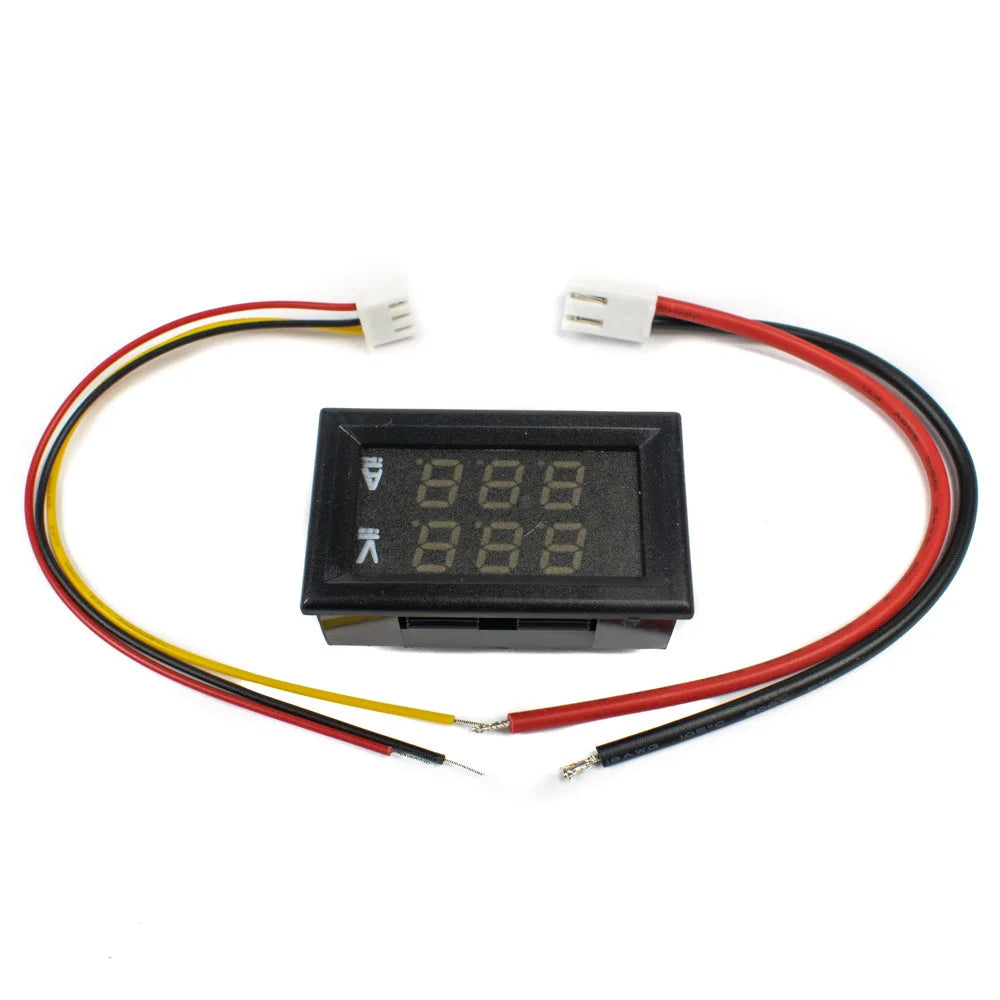

This Digital Volt and Amp meter device can measure current from 0 to 10A and voltage from 0 to 100V. It is a 0.28’’ device with 5 wires divided into 2 sets where thin Black and red are to power the module and the other 3 wires to measure the voltage and current. The yellow wire is used to measure the voltage whereas thick black and red wires are used to measure the current. Read more
