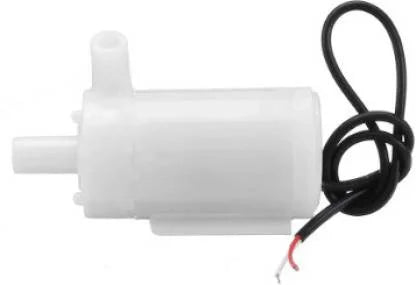

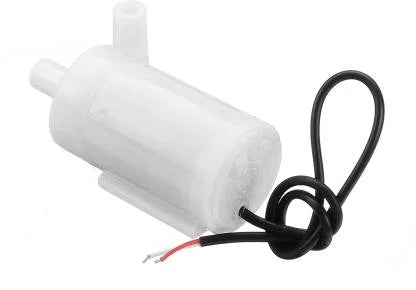

This is a low-cost mini submersible water pump that operates on 3-6V DC power. It is extremely simple and straightforward to use. This pump has a single inlet valve and a single outlet valve. To begin pumping water, connect the inlet valve to your water source and the outlet valve to your desired location, and power the motor with 3-6V. This motor is compact, lightweight, and small. It can be controlled by a microcontroller/Arduino through the use of our DC Motor Drivers or one of our Relay Boards. This pump can be powered by our 5V SMPS Power Supply Adapter. You can also use our 6V Solar Panel in conjunction with a 6V voltage regulator to power the pump. This pump can be used under submersible and non-submersible conditions. Good product for science projects, fire extinguishers, fire fighting robots, fountains, waterfalls, plant watering systems, and so on.
Specification
Operating Voltage | DC 2.5V~6V |
Water Lift Height | 40-110 cm |
Flow Rate | 80-120 L/H |
Water Outlet Diameter (Outer) | 7.6mm |
Water Outlet Diameter (Inner) | 4.8mm |
Wire Length | 16cm |
