Dual Axis XY Joystick Module

Description

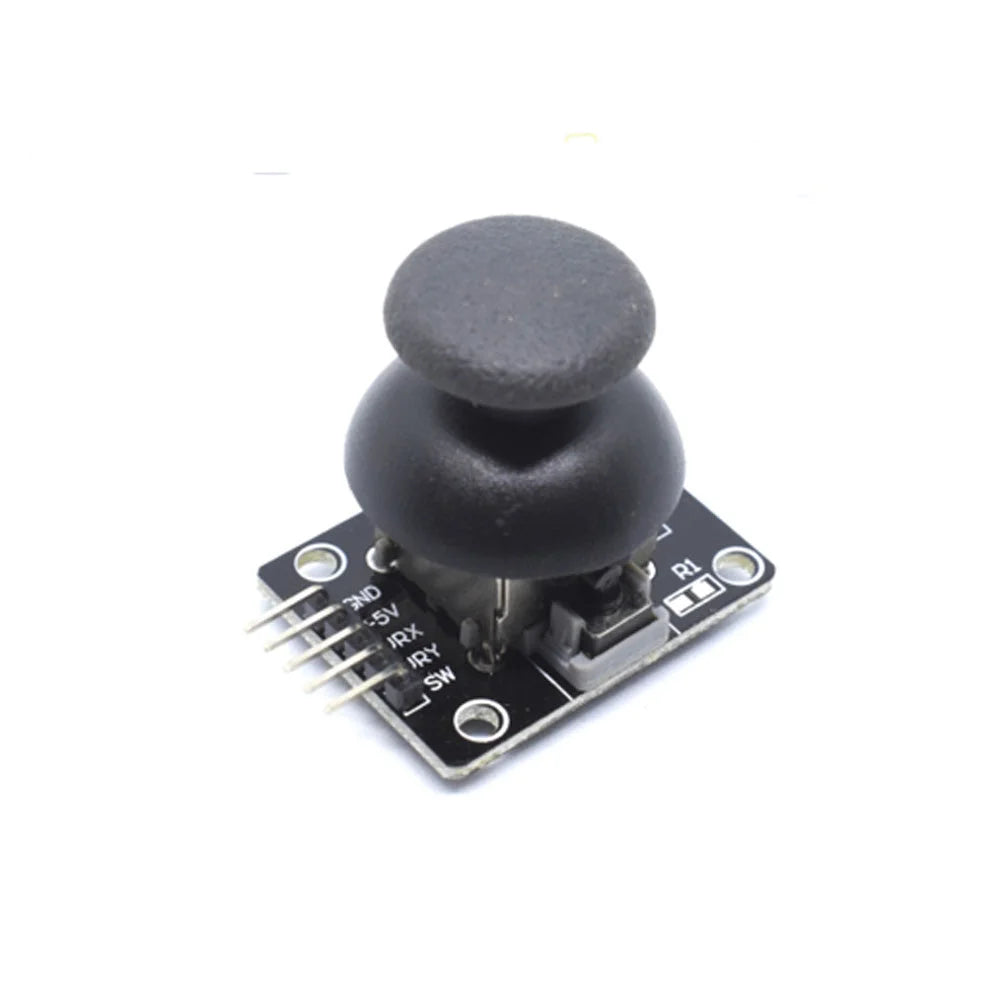

The dual Axis XY Joystick module uses two potentiometers (one for each direction) to detect the directional movement. Both the potentiometers are of value 10K and can move in any direction independently. There is a push-button also in the module which can be used by pressing down the joystick.

Dual Axis Joystick module has 5 pins i.e, GND, Vcc, VRx, VRy and SW. GND pin is connected to the ground of the circuit whereas Vcc is connected to the power supply. VRx and VRy pins are used to retrieve analog signal which contains position coordinates of X-axis and Y-axis respectively. SW is connected to the push button. This Joystick Module uses pin interface leads of 2.54mm. The operating voltage for the module is 5V. The main application of the Two-Axis Joystick module is controlling robots, pan control for the camera, game controllers, etc.

Specifications
