The L78 series of three-terminal positive regulators is useful in a variety of

Features

  • Output current up to 1.5 A
  •  Thermal overload protection
  •  Short circuit protection
  •  Output transition SOA protection
  •  2 % output voltage tolerance (A version)
  •  Guaranteed in extended temperature range (A version)

Applications

because it comes in TO-220, TO-220FP, D2PAK, and DPAK packages with a number of set output voltages.
By providing local on-card regulation, these regulators can do away with the distribution issues brought on by single point regulation. Each type has safe area protection, thermal shut-down, and internal current limiting, making it virtually unbreakable. They can deliver more over 1 A of output current if sufficient heat sinking is offered. Despite being primarily intended to regulate fixed voltage, these devices can be used in conjunction with external components to produce adjustable voltage and currents.

Features

  • Output current up to 1.5 A
  •  Thermal overload protection
  •  Short circuit protection
  •  Output transition SOA protection
  •  2 % output voltage tolerance (A version)
  •  Guaranteed in extended temperature range (A version)

Specification

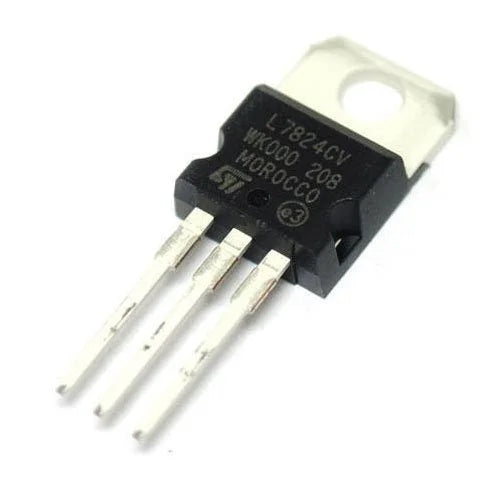

Model L7824CV
Type Linear Voltage Regulator
Package Style TO-220-3
Output voltage 24V
Quiescent current 8mA
Output resistance 28m‚¬ž¦
Short circuit current 0.15A
