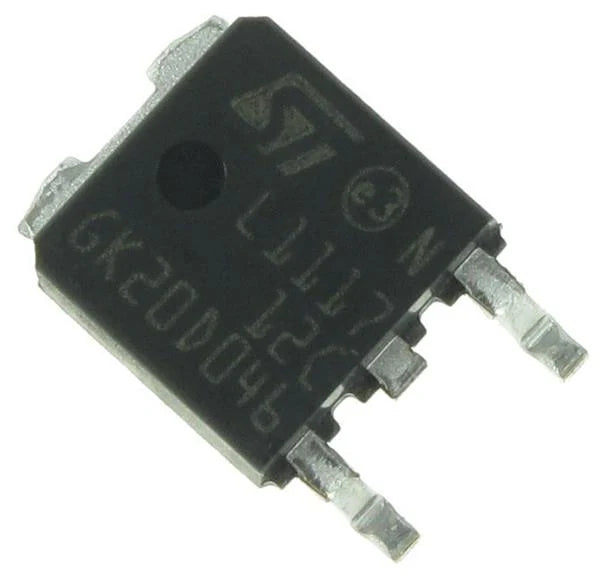

The LD1117DT12CTR is a low dropout (LDO) linear voltage regulator designed to deliver a stable 12V output for a wide range of electronic applications. Featuring reliable performance and good thermal characteristics, this regulator supports output currents up to 800mA with low dropout voltage. The device is available in the D-PAK surface mount package, making it suitable for compact PCB designs in industrial, consumer, and embedded electronic systems.
Features
Applications
- Microcontroller and embedded system power supplies
- Industrial control circuits
- Consumer electronics
- Communication equipment
- Power management modules
- Voltage regulation for electronic devices
Specification
| Part Number | LD1117DT12CTR |
| Regulator Type | Low Dropout Linear Regulator |
| Output Voltage | 12V (Fixed) |
| Output Current | Up to 800mA |
| Dropout Voltage | Typically 1.1V at 800mA |
| Input Voltage | Up to 15V |
| Package | D-PAK |
| Mounting Type | Surface Mount |
| Protection Features | Thermal Shutdown, Current Limiting |
| Operating Temperature | -40°C to +125°C |
