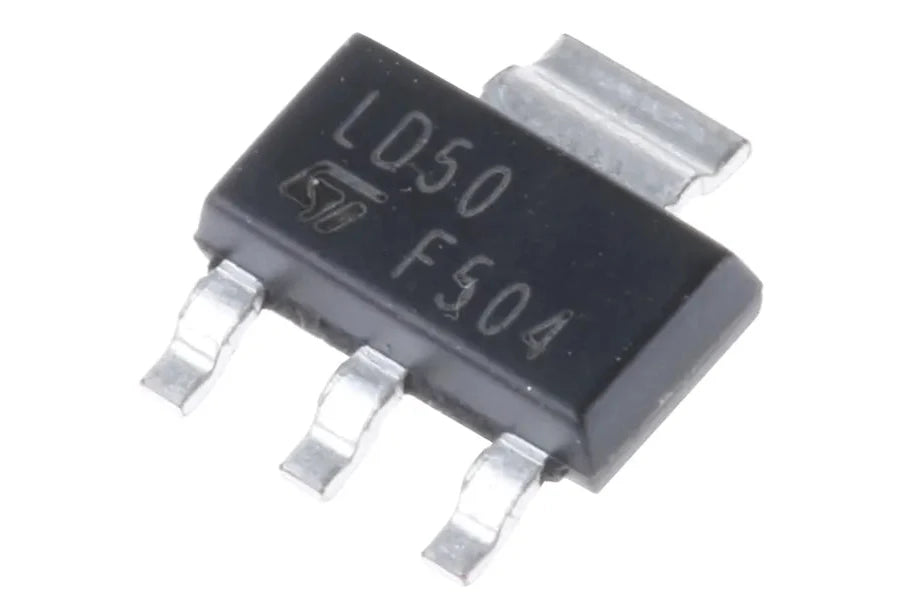

The LD1117S50CTR is a 5V fixed-output Low Dropout (LDO) voltage regulator, providing a stable and efficient 5V output for a wide range of electronic devices. It supports up to 1A of output current, making it suitable for medium power
Features
- Fixed 5V Output: Provides a stable 5V output voltage.
- Low Dropout Voltage: Minimizes the difference between input and output voltages for efficient regulation.
- Output Current: Supports up to 1A of current.
- Thermal and Short-Circuit Protection: Built-in safety features ensure reliable operation.
- Compact Package: Available in the space-saving TO-252 (DPAK) SMD package.
Applications
in consumer electronics, power supply circuits, and embedded systems. Its low dropout voltage allows for efficient operation even when the input voltage is close to the output voltage, optimizing performance in battery-powered or low-voltage systems. The LD1117S50CTR is available in a compact TO-252 (DPAK) surface-mount package, perfect for space-constrained designs.Features
- Fixed 5V Output: Provides a stable 5V output voltage.
- Low Dropout Voltage: Minimizes the difference between input and output voltages for efficient regulation.
- Output Current: Supports up to 1A of current.
- Thermal and Short-Circuit Protection: Built-in safety features ensure reliable operation.
- Compact Package: Available in the space-saving TO-252 (DPAK) SMD package.
Specification
| Parameter | Value |
|---|---|
| Output Voltage | 5V |
| Input Voltage Range | 6.5V to 15V |
| Maximum Output Current | 1A |
| Dropout Voltage | 1.1V (at full load, 1A) |
| Quiescent Current | 5mA (typical) |
| Output Voltage Tolerance | ±1% |
| Thermal Shutdown | Yes |
| Short-Circuit Protection | Yes |
| Operating Temperature Range | -40°C to +125°C |
| Package | TO-252 (DPAK) SMD |
