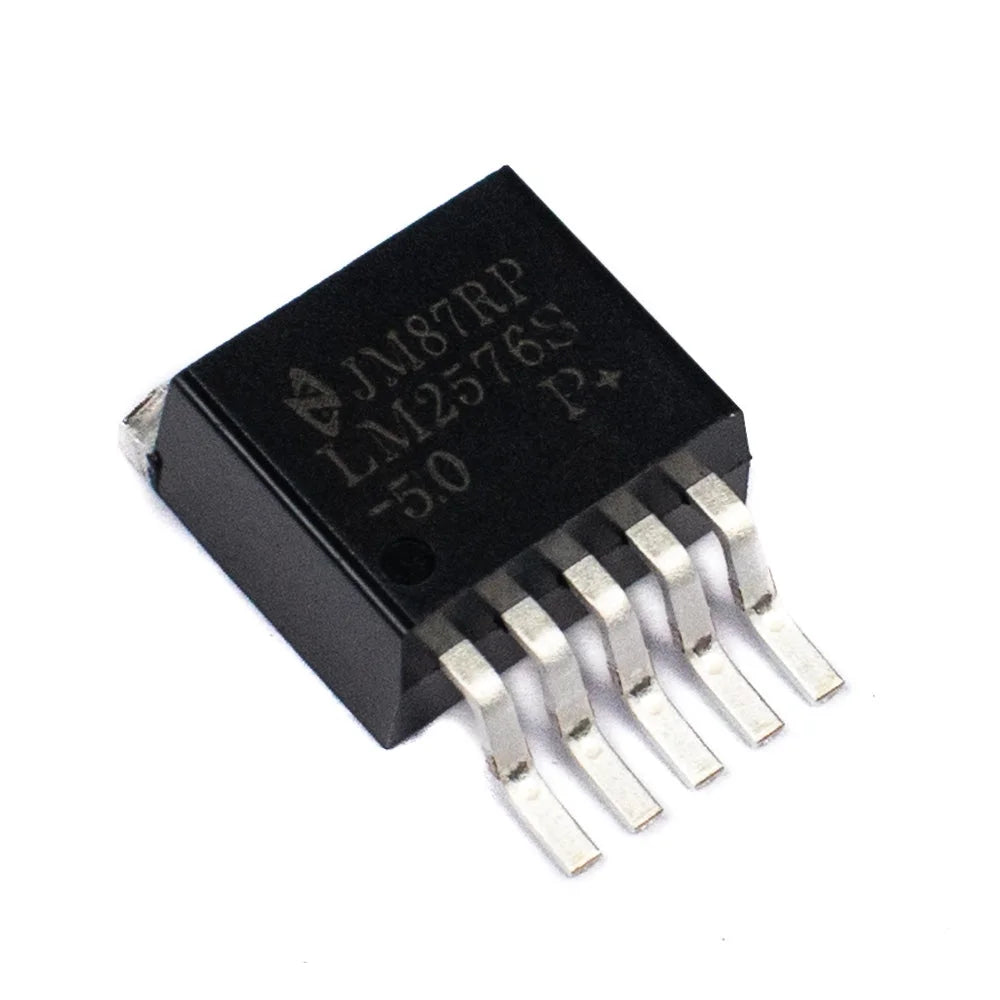

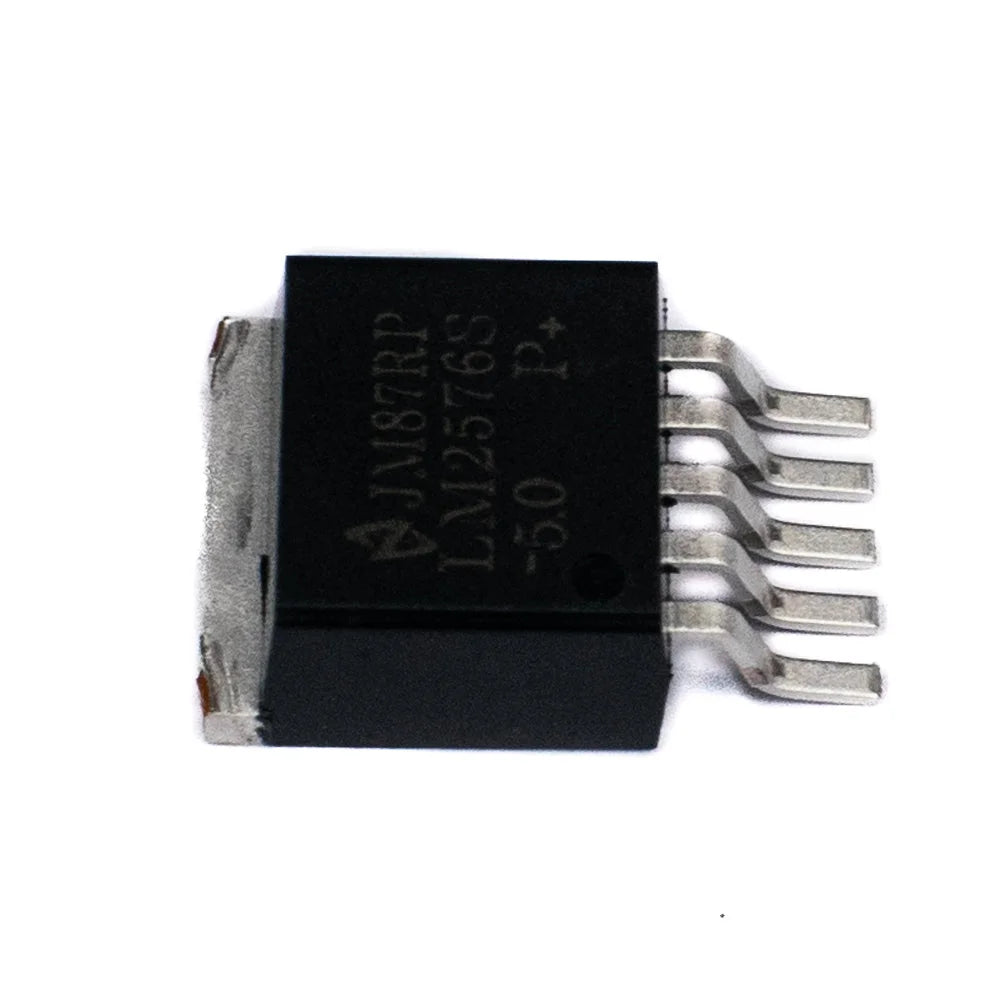

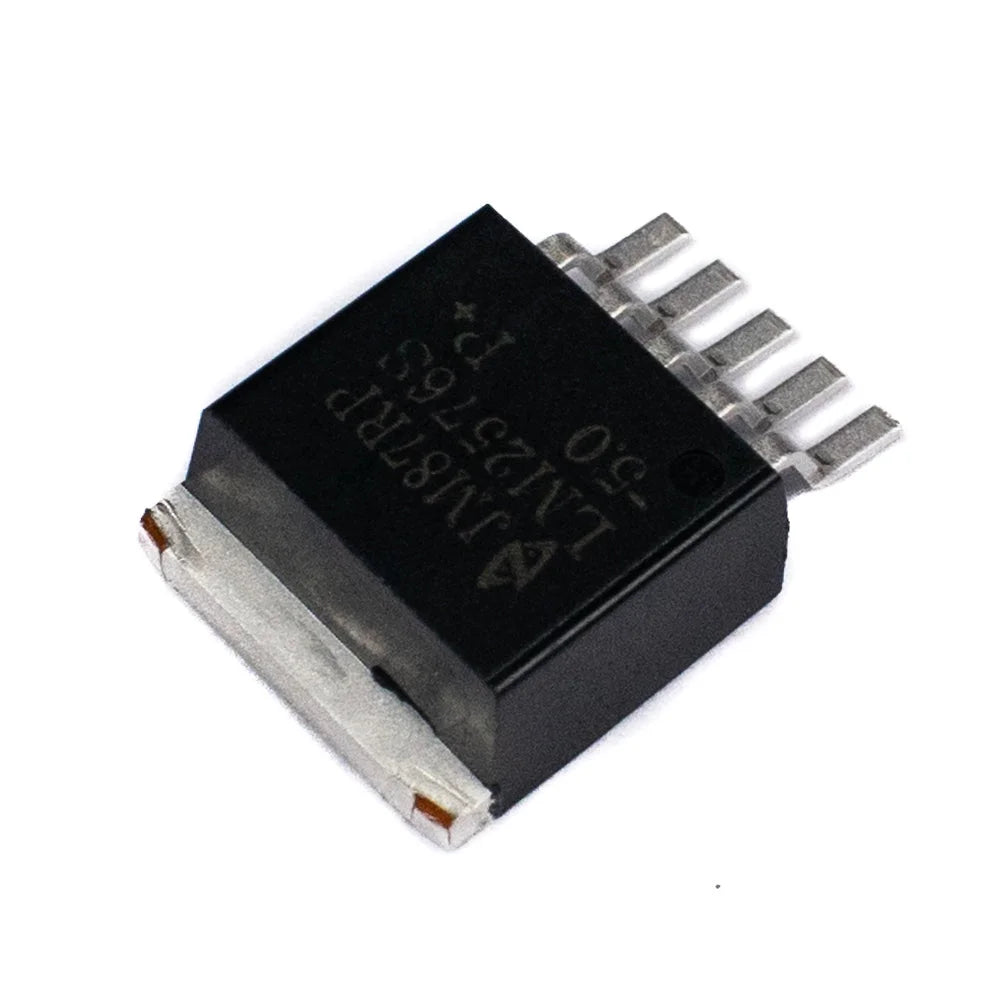

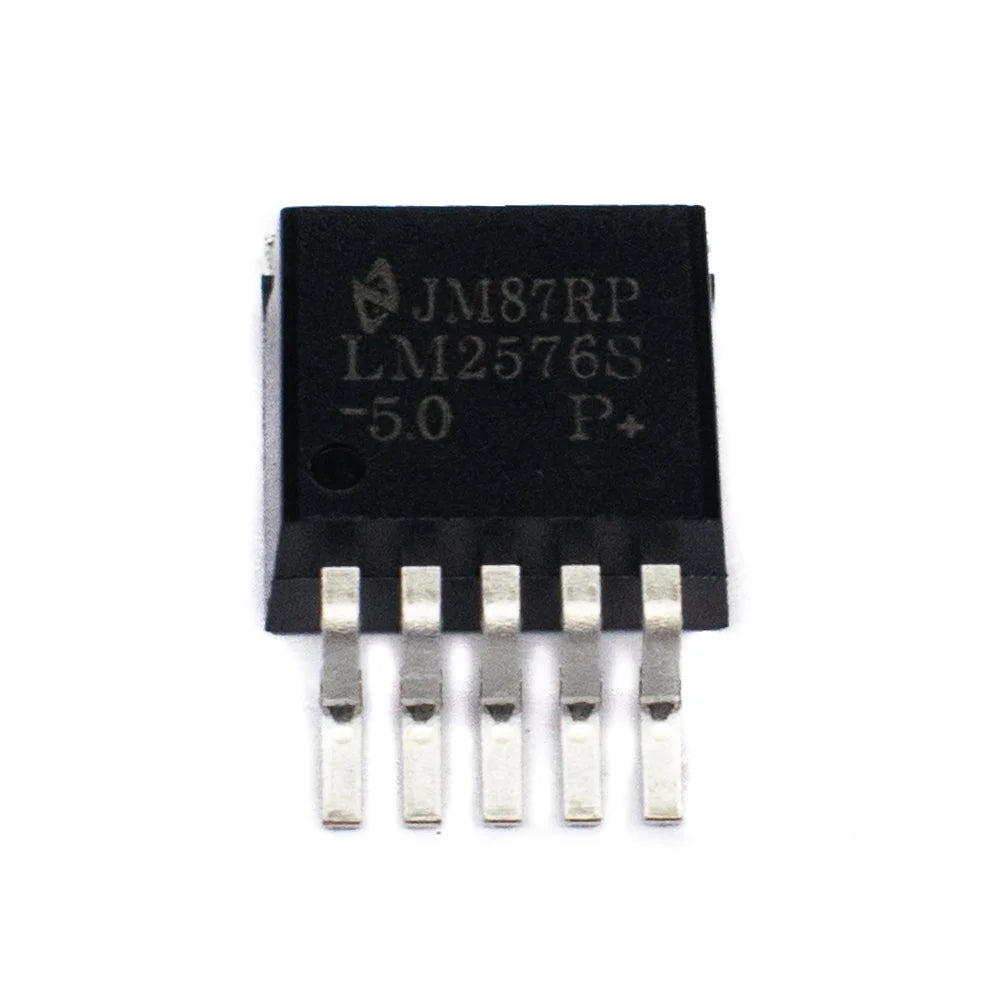

The LM2576 regulators are monolithic integrated circuits ideally suited for the easy and convenient design of a step€š¬‚¬œdown switching regulator (buck converter). The circuit is capable of driving a 3.0 A load with excellent line and load regulation. The device is available in an adjustable output version. The regulator is designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2576 are offered by several different inductor manufacturers. Since the LM2576 converter is a switch-mode power supply, its efficiency is significantly higher in comparison with the popular three-terminal linear regulators, especially with higher input voltages.
Pin Configuration
Pin Number |
Pin Name |
Description |
1 |
VIN |
The voltage which has to be regulated is provided as input to this pin |
2 |
Output |
The regulated output can be obtained through this pin |
3 |
Ground |
Connected to system ground |
4 |
Feedback |
This pin is provided with the feedback voltage based on which the output is regulated |
5 |
ON/OFF |
Connect to ground to activate regulator or connect to Vcc to disable the regulator. |
Features
- Over Line and Load Conditions
- Guaranteed 3.0 A Output Current
- Wide Input Voltage Range
- Requires Only 4 External Components
- 52 kHz Fixed Frequency Internal Oscillator
- TTL Shutdown Capability, Low Power Standby Mode
- High Efficiency
- Uses Readily Available Standard Inductors
- Thermal Shutdown and Current Limit Protection
Applications
- Simple High€š¬‚¬œEfficiency Step€š¬‚¬œDown (Buck) Regulator
- Efficient Pre€š¬‚¬œRegulator for Linear Regulators
- On€š¬‚¬œCard Switching Regulators
- Positive to Negative Converter (Buck-Boost)
- Negative Step-Up Converters
- Power Supply for Battery Chargers
Specification
Maximum Supply Voltage | 45V |
Saturation Voltage | 5V |
Current Limit | 3A |
Efficiency | 82% |
Feedback Voltage | 1.217 - 1.243V |
Storage Temperature Range | -65 to + 150°C |
Oscillator Frequency | 52KHz |
Type | SMD |
Package | TO-263 |
