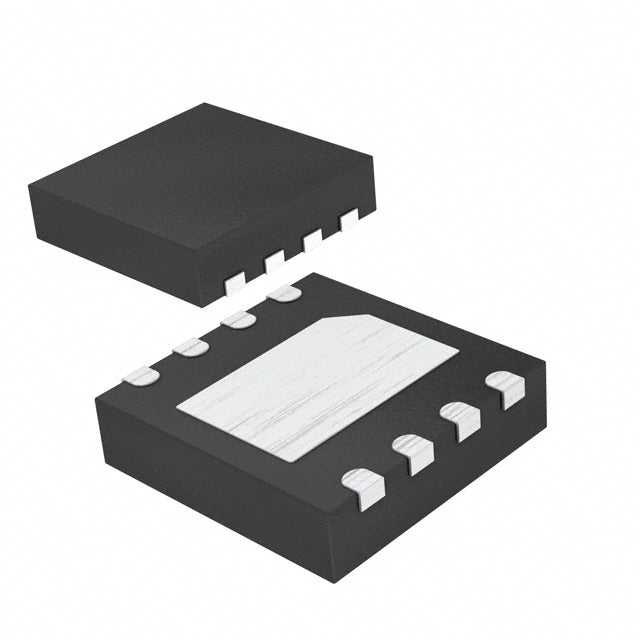

The MAX14575AETA+T is a current-limited power switch designed to protect USB and other power-distribution systems. This device features an adjustable current limit, low on-resistance, and thermal shutdown. Housed in a compact 8-pin TDFN package, it integrates a slew-rate controlled switch and an active-low fault output to signal overcurrent or thermal events, making it ideal for USB host ports, embedded power control, and hot-swap applications.
Features
- Adjustable current limit from 0.1A to 1.2A
- Low RDS(ON) switch (70mΩ typical)
- Thermal shutdown and short-circuit protection
- Slew-rate controlled turn-on for inrush current control
- Active-low FAULT output for system diagnostics
- Compact 8-pin TDFN package
Applications
- USB host and hub power control
- Hot-swap power management
- Notebook and tablet power distribution
- General-purpose power switching
- Industrial and consumer embedded systems
Specification
| Part Number | MAX14575AETA+T |
| Function | Current-Limit Power Switch |
| Package | 8-TDF |
