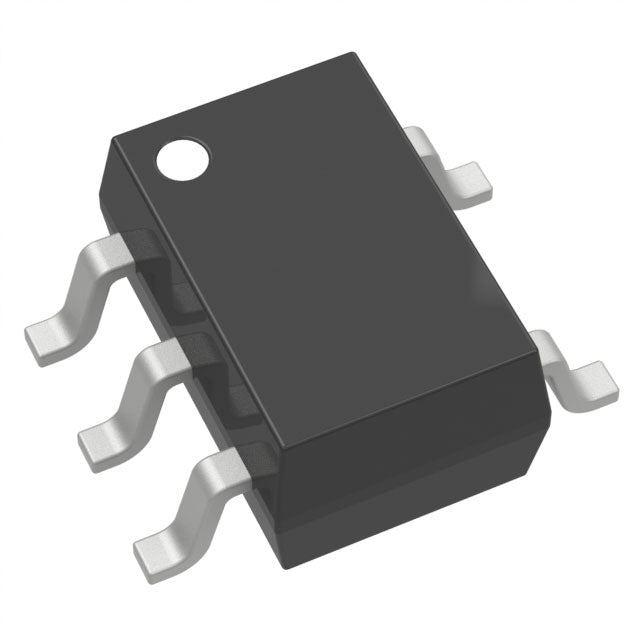

The MAX9914EXK+T is an ultra-low power, high-precision operational amplifier from Analog Devices (formerly Maxim Integrated), housed in a compact SC70-5 package. Designed for space-constrained and battery-powered applications, this op-amp delivers exceptional performance with a typical supply current of just 4µA. With rail-to-rail output and low offset voltage, it's ideal for use in portable medical instruments, sensor interfaces, and industrial monitoring equipment.
Features
- Extremely low quiescent current 4µA (typical)
- Low offset voltage ±300µV (maximum)
- Operates from a single supply 1.8V to 5.5V
- Rail-to-rail output for maximum signal swing
- Unity-gain stable
- Compact SC70-5 package for space-critical designs
Applications
- Battery-powered equipment
- Portable medical devices
- Environmental and temperature sensors
- Current and voltage monitoring systems
- Low-power analog signal conditioning
Specification
| Part Number | MAX9914EXK+T |
| Package | SC70-5 |
| Supply Voltage Range | 1.8V to 5.5V |
| Quiescent Current | 4µA (typical) |
| Input Offset Voltage | ±300µV (maximum) |
| Gain Bandwidth Product | 50kHz (typical) |
| Output Type | Rail-to-Rail |
| Operating Temperature Range | -40°C to +125°C |
