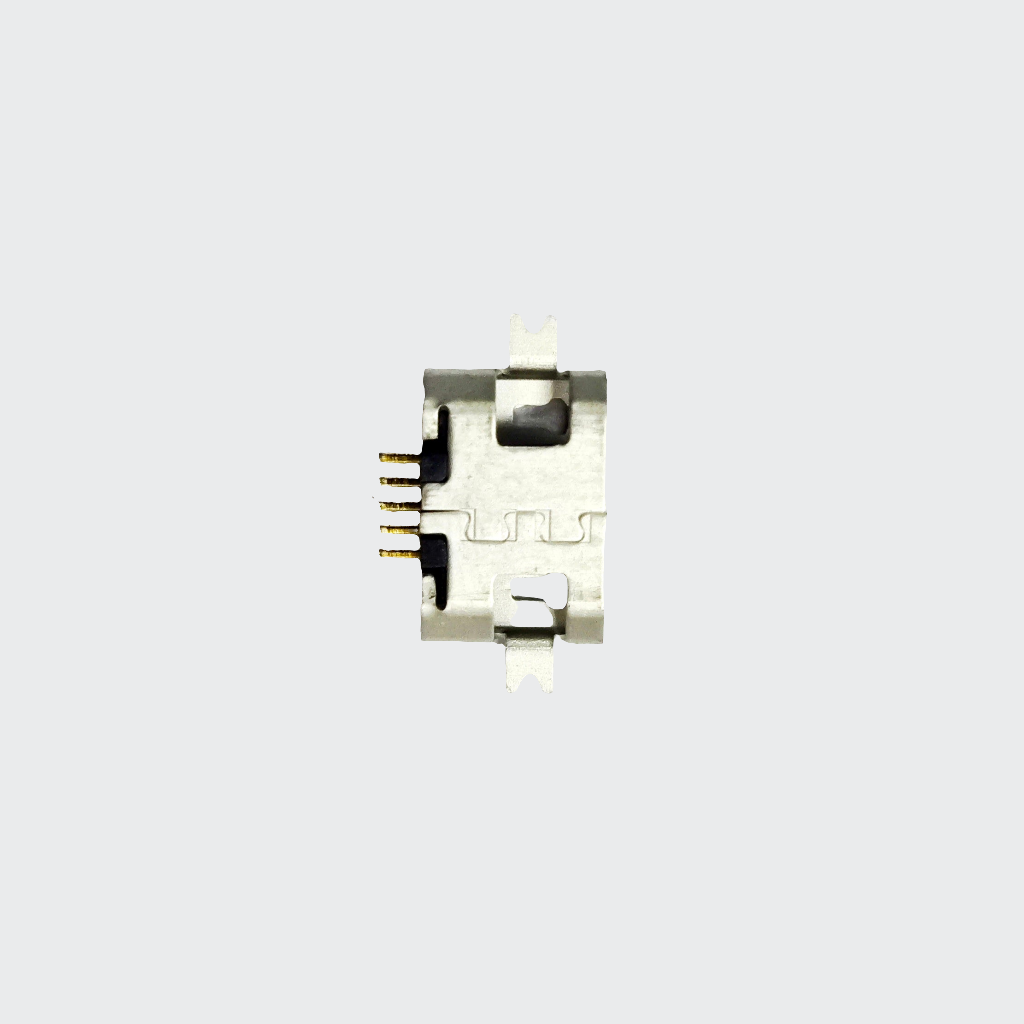

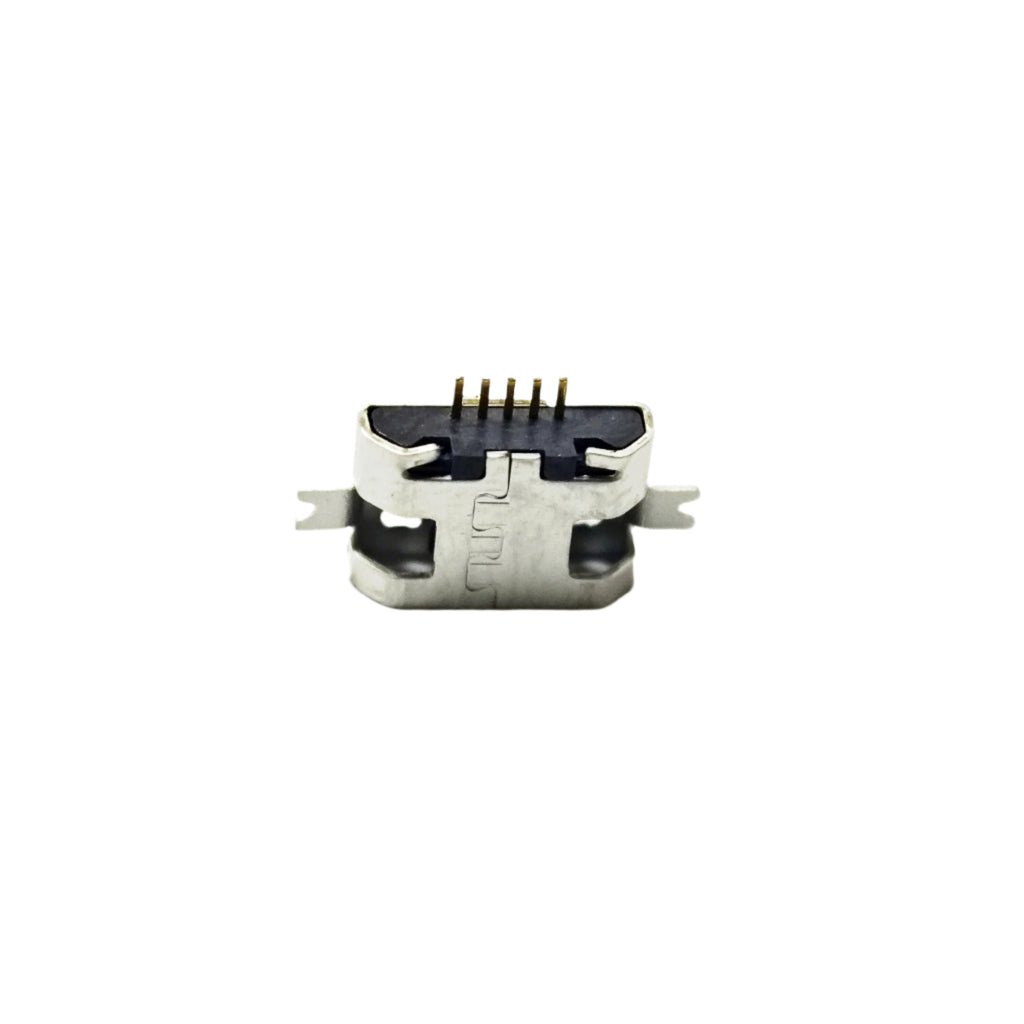

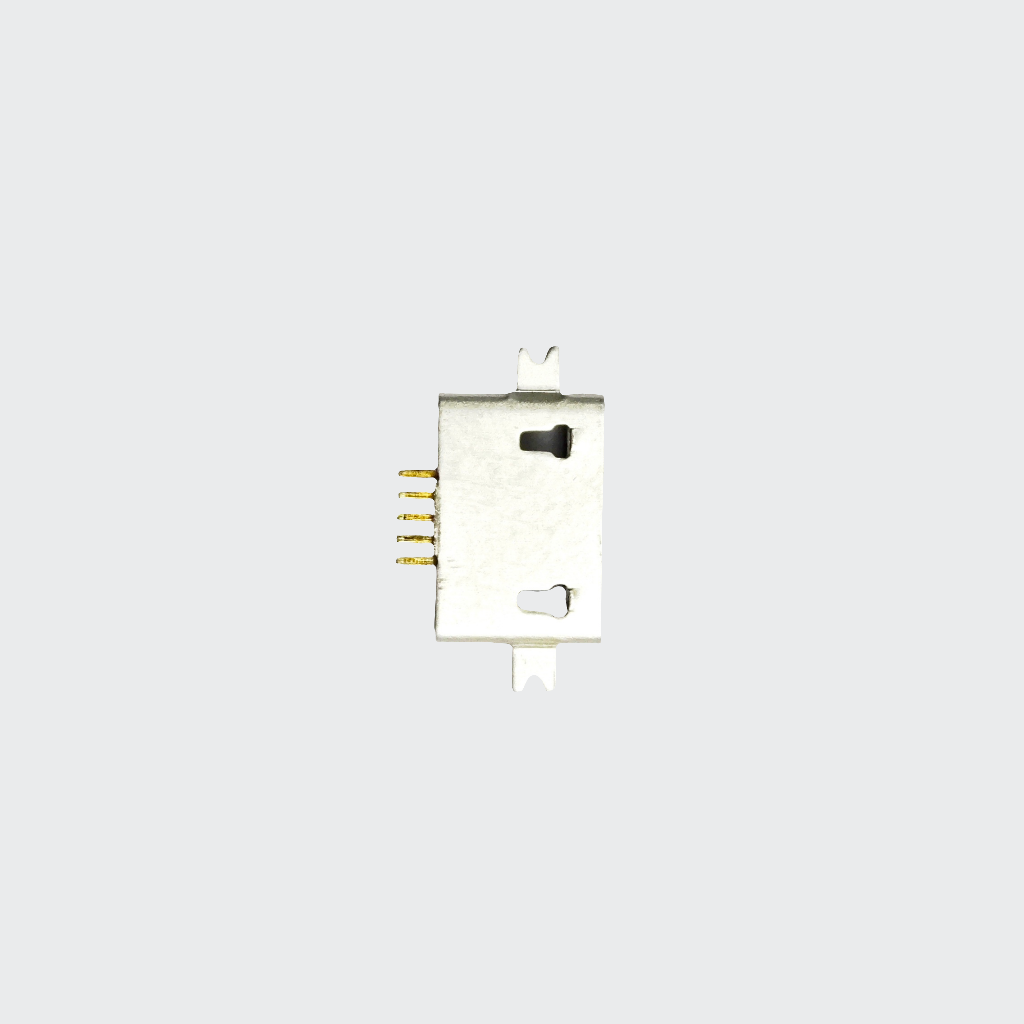

The Micro USB Type B 5-Pin SMD Connector Female is a compact and versatile connector designed for USB 2.0 applications, providing reliable data transfer and charging solutions. With its Surface Mount Device (SMD) design, it ensures efficient integration into PCBs for compact electronic devices. This connector is crafted for durability and stable performance, making it an essential component for a wide range of applications.
Features
- Compact Design: Ideal for devices with limited space.
- SMD Mounting: Ensures easy integration and secure connection to PCBs.
- 5-Pin Configuration: Fully compliant with USB 2.0 standards for data and power.
- Durability: High-quality materials for long-lasting performance.
- Wide Compatibility: Supports various electronic devices and applications.
Applications
- Mobile phones and tablets.
- Power banks and portable chargers.
- IoT devices and embedded systems.
- Audio players and cameras.
- Wearable devices.
Specification
| Parameter | Value |
|---|---|
| Connector Type | Micro USB Type B Female |
| Pin Count | 5 |
| Mounting Style | Surface Mount Device (SMD) |
| USB Standard | USB 2.0 |
| Voltage Rating | 5V |
| Current Rating | Up to 1.8A |
| Operating Temperature | -25°C to 85°C |
| Material | High-quality plastic and metal contacts |
| Durability | 10,000 mating cycles |

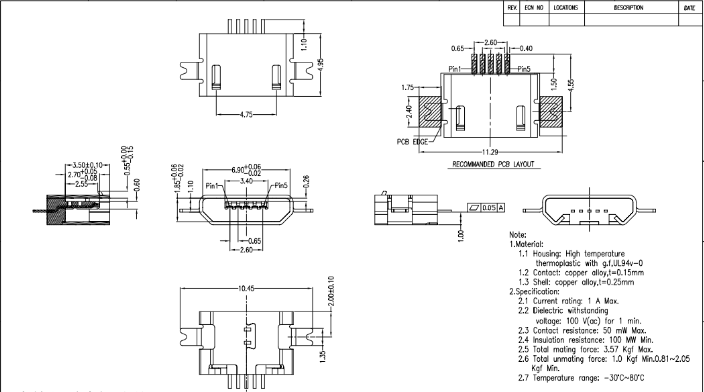

| Dimensions | As per datasheet |
