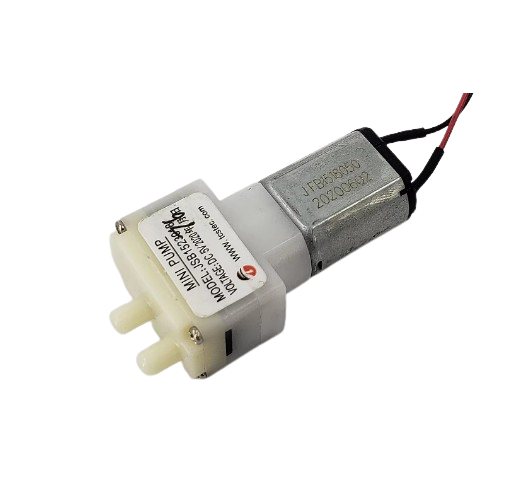

Mini Air Pump JSB1523018 5V Operated

Description

The JSB1523018 mini air pump is a compact, low-power device designed for applications requiring air movement, such as in medical devices, air circulation systems, or small gadgets. Below are the specifications for the 5V DC version:

Key Specifications:

• Model: JSB1523018
• Pump Type: Mini DC Diaphragm Air Pump
• Operating Voltage: 5V DC
• Operating Current: Typically around 200 mA to 350 mA
• Max Flow Rate: 1-2 L/min (Liters per minute)
• Max Pressure: 150 kPa (~1.5 bar)
• Noise Level: Low-noise operation (under 60 dB)
• Power Consumption: ~1W to 1.75W depending on load
• Lifespan: Approximately 5,000 to 10,000 hours
• Size: Very compact, suitable for portable or space-constrained applications
• Operating Temperature: 0°C to 40°C
• Usage: Typically designed for continuous or intermittent use

Applications:

• Medical devices (such as CPAP machines, nebulizers, or portable ventilators)
• Air circulation in small enclosed spaces
• Aeration for small fish tanks or hydroponic systems
• Portable air pumps for inflating small objects or air sampling equipment
