Description
This is a High-Quality Green Colour SMD LED. These LEDs consume very low power and generally produce a wide angle of light disbursement which can be narrowed through the use of external lenses. The Forward Voltage is 3.0-3.2 volt and the wavelength is 520-530nm.
SMD LEDs are substantially smaller than lead frame type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. Just like the other LED’s SMD LED has two pins, an anode and a cathode for powering the LED. The most common application of these LEDs is as a Power, indicator purpose, pin status, blinky display, etc.
Pin Configuration
Pin Name |
Description |
Anode |
Positive terminal |
Cathode |
Negative terminal |

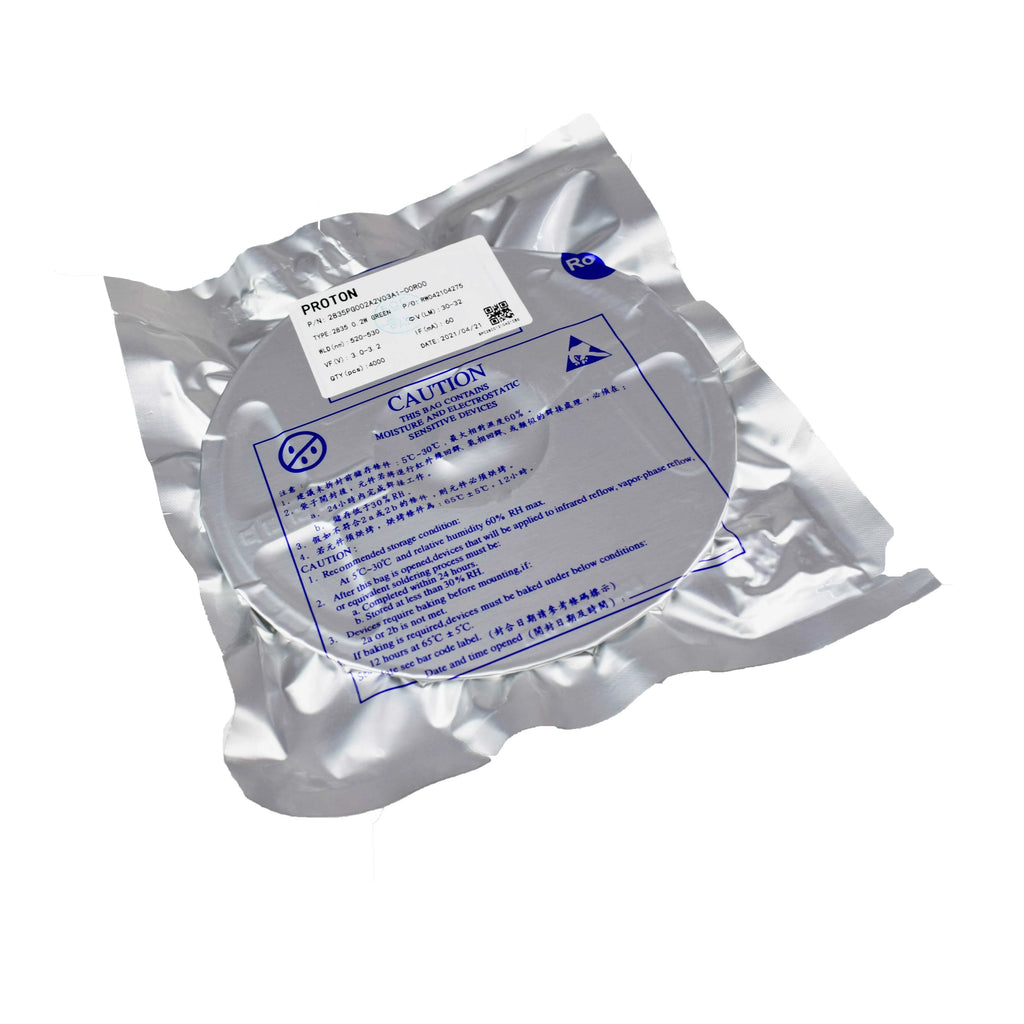

Caution
- Recommended Storage Condition:
At 5°C ~30°C and Relative humidity of 60% RH max.
- After this bag is opened, devices that will be applied to infrared reflow, vapour-phase reflow, or equivalent soldering process must be:
a. Completed within 24 hours.
b. Stored at less than 30% RH.
- Devices require baking before mounting, if:
2a or 2b is not met.
- If baking is required, devices must be baked under the below conditions:
12 hours at 65°C ±5°C.
Specifications
Brand | Proton |
Product |
2835 0.2W Green LED |
Power Consumption |
0.2 Watt |
Led Shape |
Rectangle |
Colour |
Green |
Forward Voltage(VF) |
3.0V-3.2VDC |
Wavelength(nm) |
520-530nm |
Forward Current(IF) |
60mA |
Lumens(LM) | 30-32 |
Mounting |
SMD |
Dimensions(LxB) | 3.5mm x 2.8mm |
Quantity | Pack of 4000Pcs in 1 Pack |
