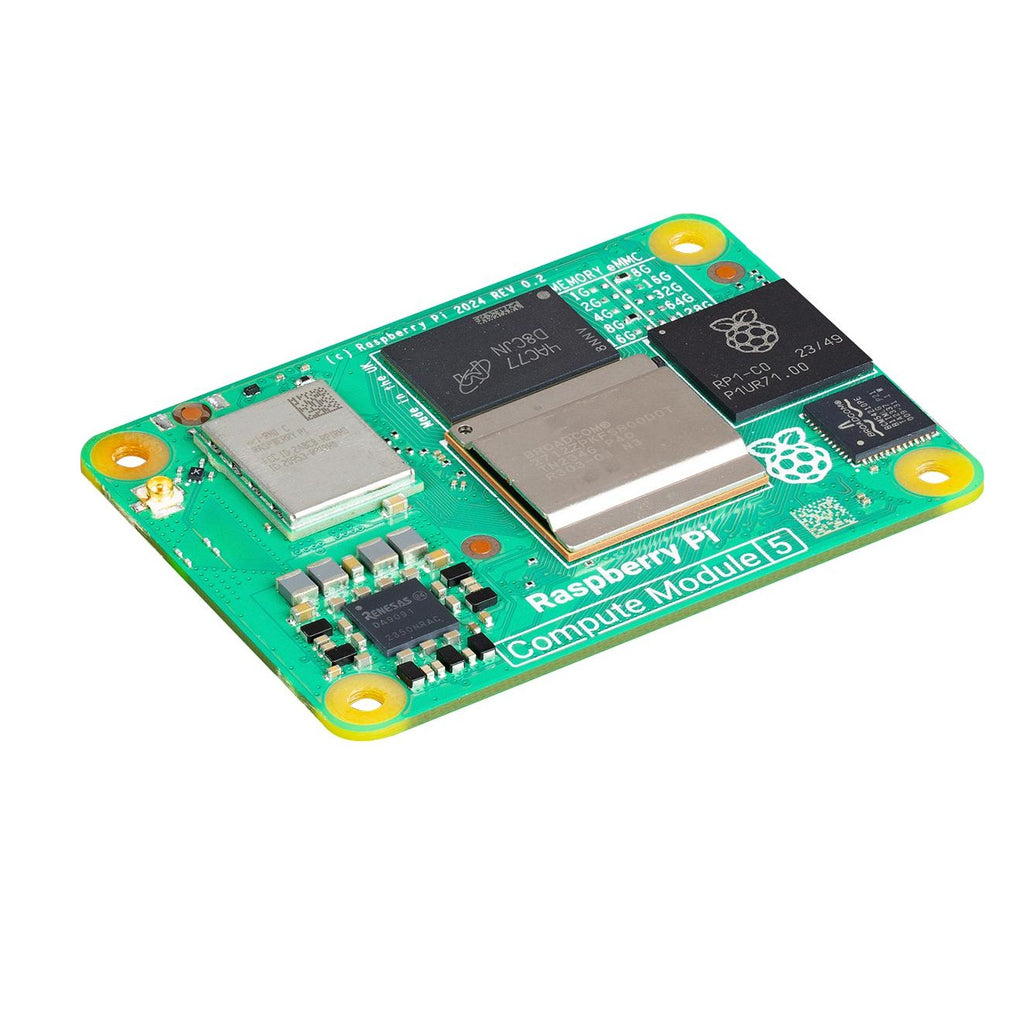

The Raspberry Pi Compute Module 5 CM5004000 is a powerful System-on-Module (SoM) designed for embedded and industrial applications. It combines the processing capabilities of Raspberry Pi 5 with a compact 55mm × 40mm module form factor, making it suitable for custom carrier boards and commercial products. The CM5004000 features a quad-core 64-bit Arm Cortex-A76 processor based on the Broadcom BCM2712 SoC running at up to 2.4GHz, 4GB LPDDR4-4267 SDRAM with ECC, and 0GB eMMC storage in the Lite configuration. This version does not include onboard wireless connectivity.
Features
- Raspberry Pi Compute Module 5 System-on-Module.
- Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 processor.
- CPU frequency up to 2.4GHz.
- 4GB LPDDR4-4267 SDRAM with ECC.
- CM5 Lite version with 0GB onboard eMMC storage.
- No onboard Wi-Fi or Bluetooth in the CM5004000 variant.
- Gigabit Ethernet PHY with IEEE 1588 support.
- PCIe 2.0 x1 interface supporting up to 5Gbps.
- Up to 30 GPIO with multiple peripheral interfaces.
- Dual 4-lane MIPI interfaces for camera and display applications.
- Supports dual HDMI 2.0 outputs through a suitable carrier board.
- Compact 55mm × 40mm module design.
Applications
- Industrial automation and control systems.
- Embedded computing applications.
- Smart displays and digital signage.
- Robotics and machine vision.
- IoT gateways and edge computing devices.
- Commercial and industrial networking equipment.
- Custom Linux-based embedded products.
- Camera and imaging systems.
- Consumer and professional electronics.
- Custom Raspberry Pi carrier board designs.
Specification
| Parameter | Value |
| Part Number | CM5004000 |
| Product | Raspberry Pi Compute Module 5 |
| Raspberry Pi RPL Number | SC1562 |
| SoC | Broadcom BCM2712 |
| CPU | Quad-Core 64-bit Arm Cortex-A76 |
| CPU Frequency | Up to 2.4GHz |
| RAM | 4GB LPDDR4-4267 SDRAM with ECC |
| eMMC Storage | 0GB (Lite) |
| Gigabit Ethernet | Yes |
| PCIe | 1 × PCIe 2.0 x1 |
| USB | 1 × USB 2.0, 2 × USB 3.0 |
| GPIO | Up to 30 |
| MIPI Interfaces | 2 × 4-Lane MIPI |
| HDMI | 2 × HDMI 2.0 via Carrier Board |
| Module Dimensions | 55mm × 40mm × 4.7mm |
| Mounting Holes | 4 × M2.5 |
