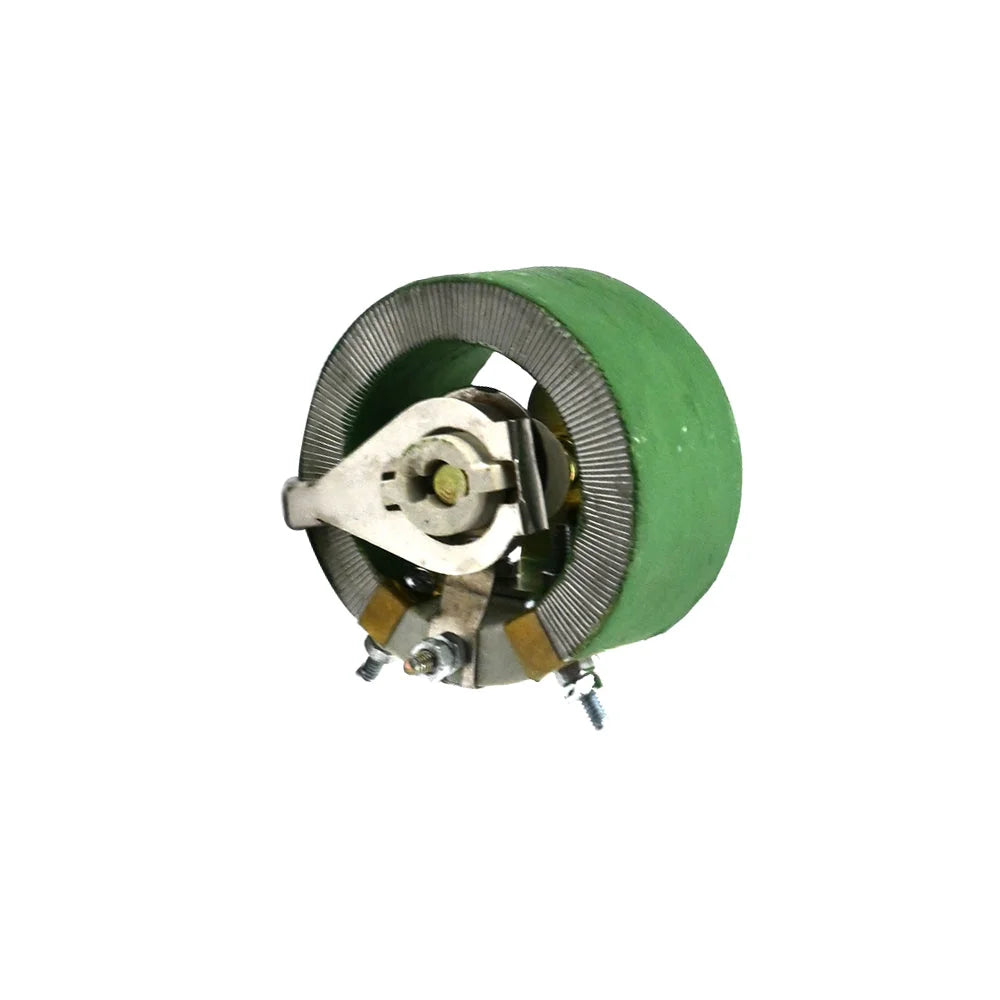

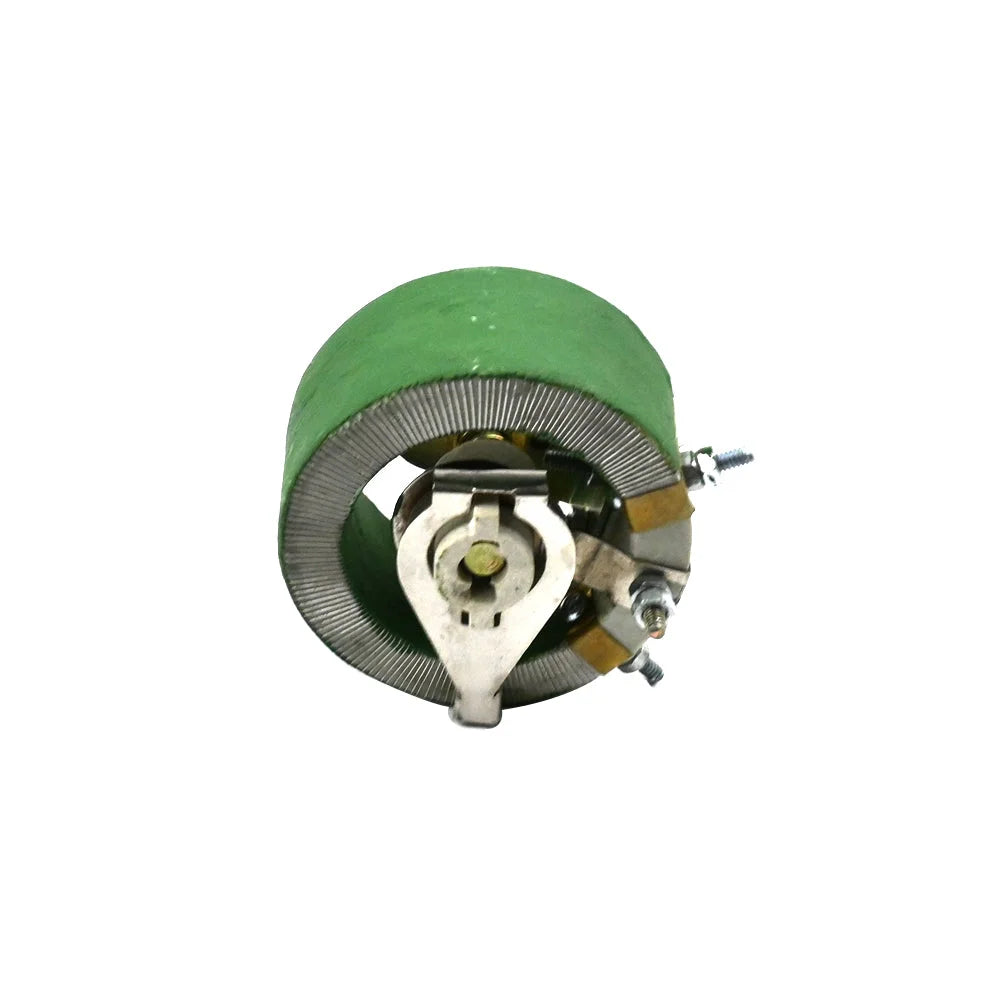

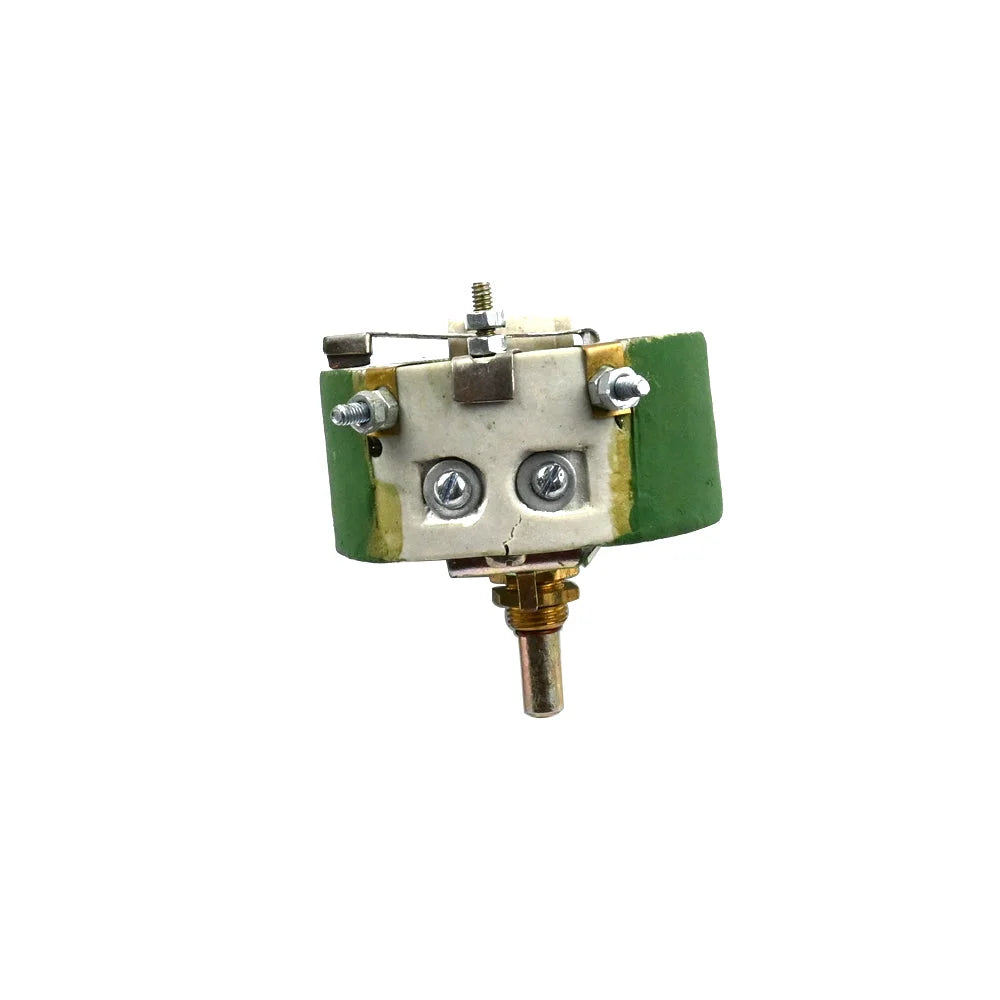

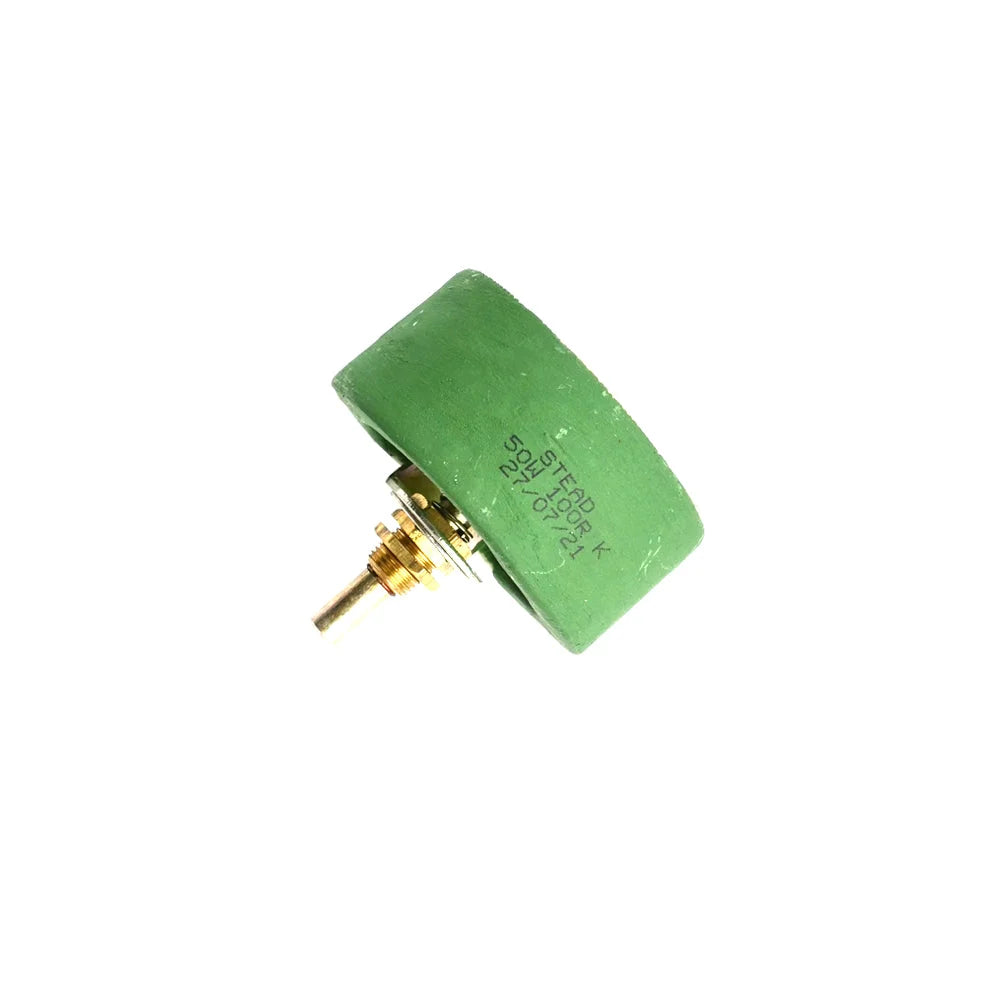

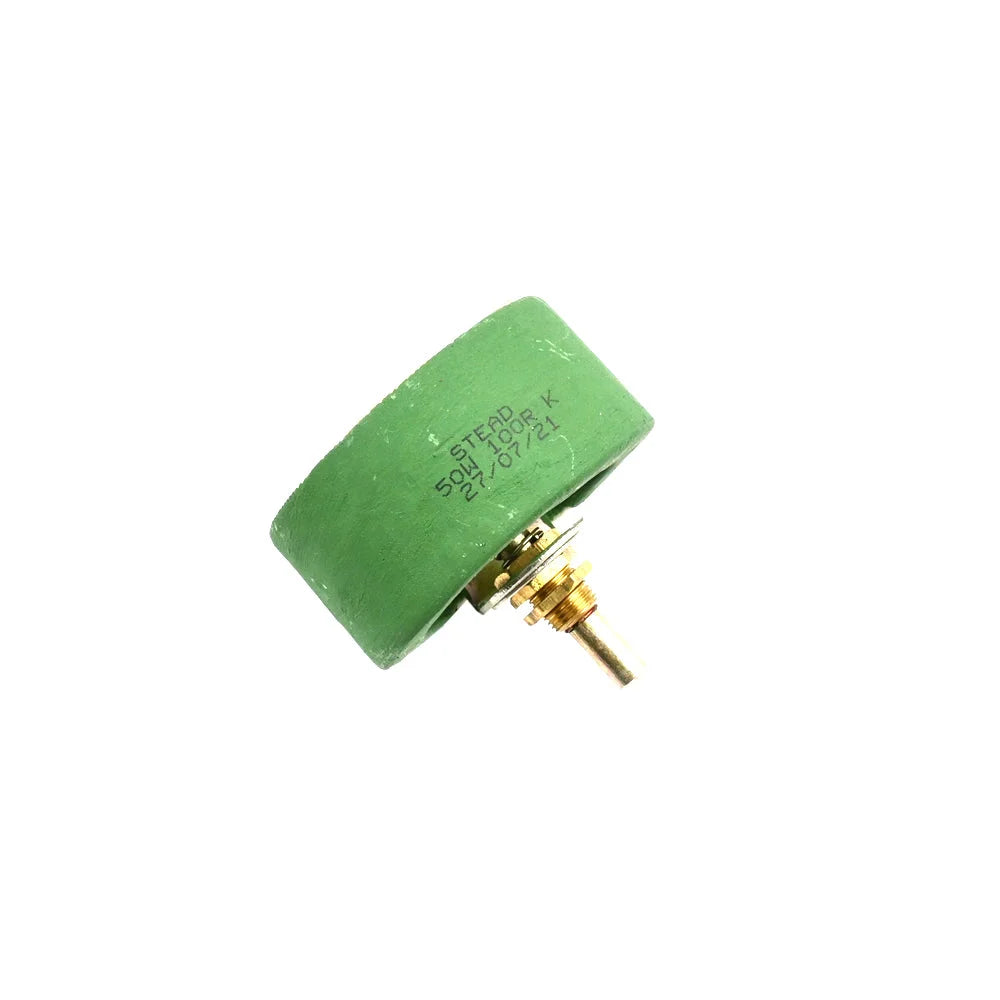

Stead 100 Ohm 50W Wire Wound Potentiometer Resistor

Stead 100 Ohm 50W Wire Wound Potentiometer Resistor

SKU SKU Code: # CC304

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

Low stock

View full details

Description

It is a 50W 100 Ohm wire wound variable rotary Potentiometer resistor. Its resistive part is rotary. The wiper in this type is mounted on a shaft and the movement of this shaft will change the length and resistance. Basically it is a variable or adjustable rotary Potentiometer work as when rotate the wiper then resistance will be vary. A Potentiometer is a variable or adjustable resistor that can control the electrical resistance of a circuit without interrupting the current flow. It is a hollow circular having three  screw connections a terminal. The ceramic and the wire wound assembly over it are covered by silicone. A resistive wire is wrapped to form a toroid coil with a wiper that slides along the coil's surface. There are three screw terminal when rotate the wiper in clock-wise resistance is increase and rotate in anti-clock wise resistance is decrease . It is constructed with a ceramic core. High voltage and current are frequently required in applications.

Features:

  • Its resistive part is rotary.
  • It is high power Potentiometer.
  •  It is a hollow circular having three screw connections  terminal.
  • The ceramic and the wire wound assembly over it are covered by silicone.
  • A variable or adjustable wiper is mount.
  • It work as non- linearly.
  • High voltage and current are frequently required in applications.
  • Widely used in those areas where circuits are often required to work at high temperatures.
Specification
Model 50W 100R
Material Type Silicone coated
Type Variable Rotary Potentiometer
Tolerance 10%
Power 50W
Resistance 100 Ohm
Dimensions 67.9*67.9mm
No. of Screw terminal 3
Wiper diameter 6.2mm
Screw diameter 6.3mm
