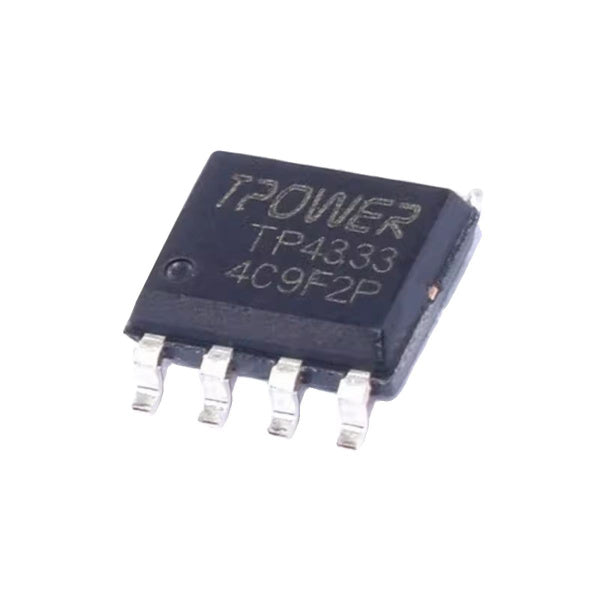

The TP4333 from TPOWER is an integrated power management IC designed for mobile power applications. It combines charge management, synchronous boost (discharge) control, status indication, and multiple safety features in a single SOP-8 package. It’s ideal for power banks and other systems that require efficient 5V output, battery charging, and protection in a single chip.
Features
- Discharge (boost) output: 5V / 1A
- Charge current fixed at 0.8A
- Boost (output) efficiency up to ≈ 93%
- BAT discharge termination voltage: 2.85V
- Optional full charge voltage: 4.2V or 4.35V
- Temperature feedback control (e.g. over-temperature protection, reduces current when chip's internal temp ~120 °C)
- Trickle charge mode when battery voltage is low (before ~2.9V)
- Load detection and auto low-power standby when no load present after delay (~18s)
- LED indication: charging, discharging, low battery alarms etc.
- Flashlight output support (LED drive) via a switch pin; max ~50 mA drive current
Applications
- Power bank / portable charger designs
- Battery-powered mobile devices
- Sustainable 5V USB output modules
- Systems needing integrated protection (overcharge, overdischarge, short-circuit)
- Emergency flashlight / LED indicator functions
Specification
| Parameter | Typical / Range |
|---|---|
| Input Voltage (VDD) | ≈ 4.5 V to 5.5 V |
| Charging Voltage Options (BAT full-charge) | 4.2 V or 4.35 V |
| Trickle Charge Threshold | ≈ 2.9 V BAT voltage |
| Charge Current (Constant Current Mode) | 0.8 A |
| Output (Boost) Current | 1 A |
| Efficiency | Up to ~93% in boost mode |
| Low Battery Shutdown / Termination | ≈ 2.85 V |
| Standby Current | ~ 50-80 µA (BAT pin, standby) |
| Operating Temperature | –20 °C to +85 °C (junction range is wider) |
| Package | SOP-8 |
