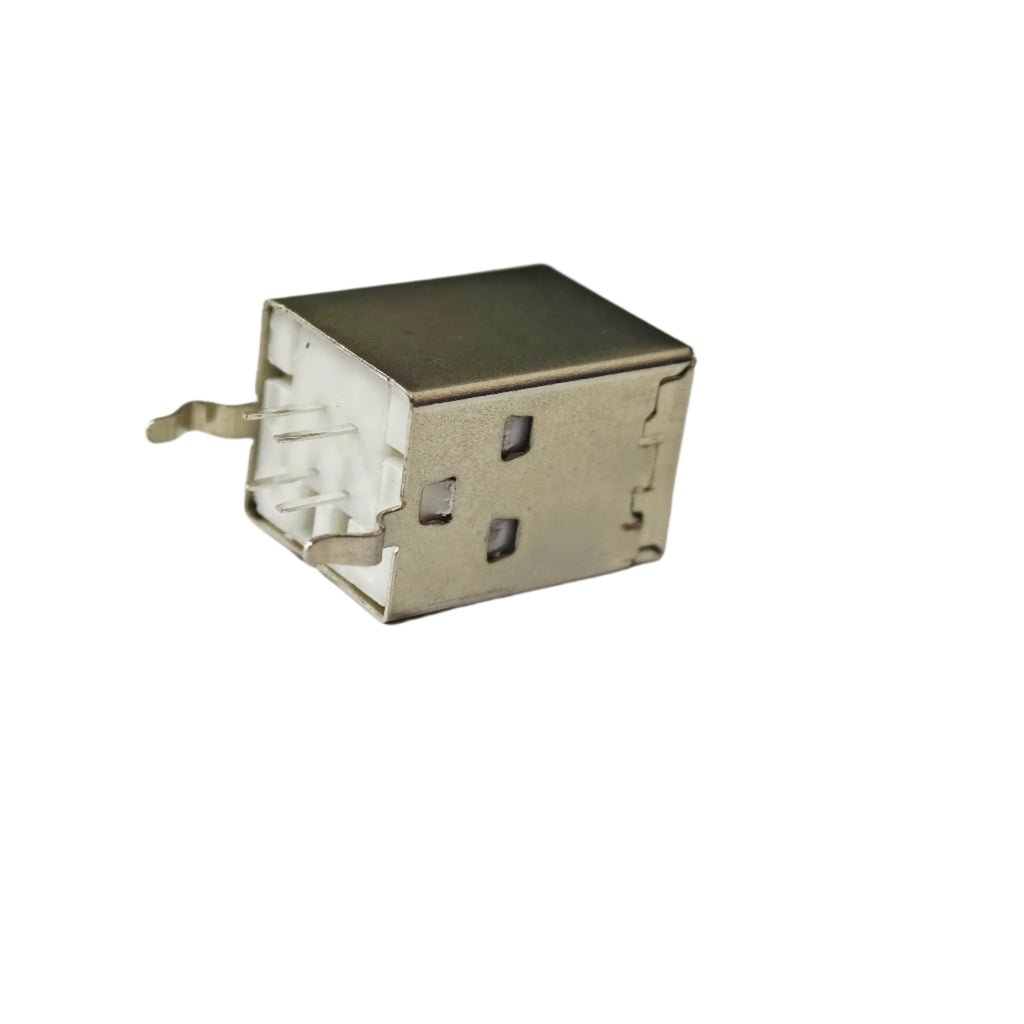

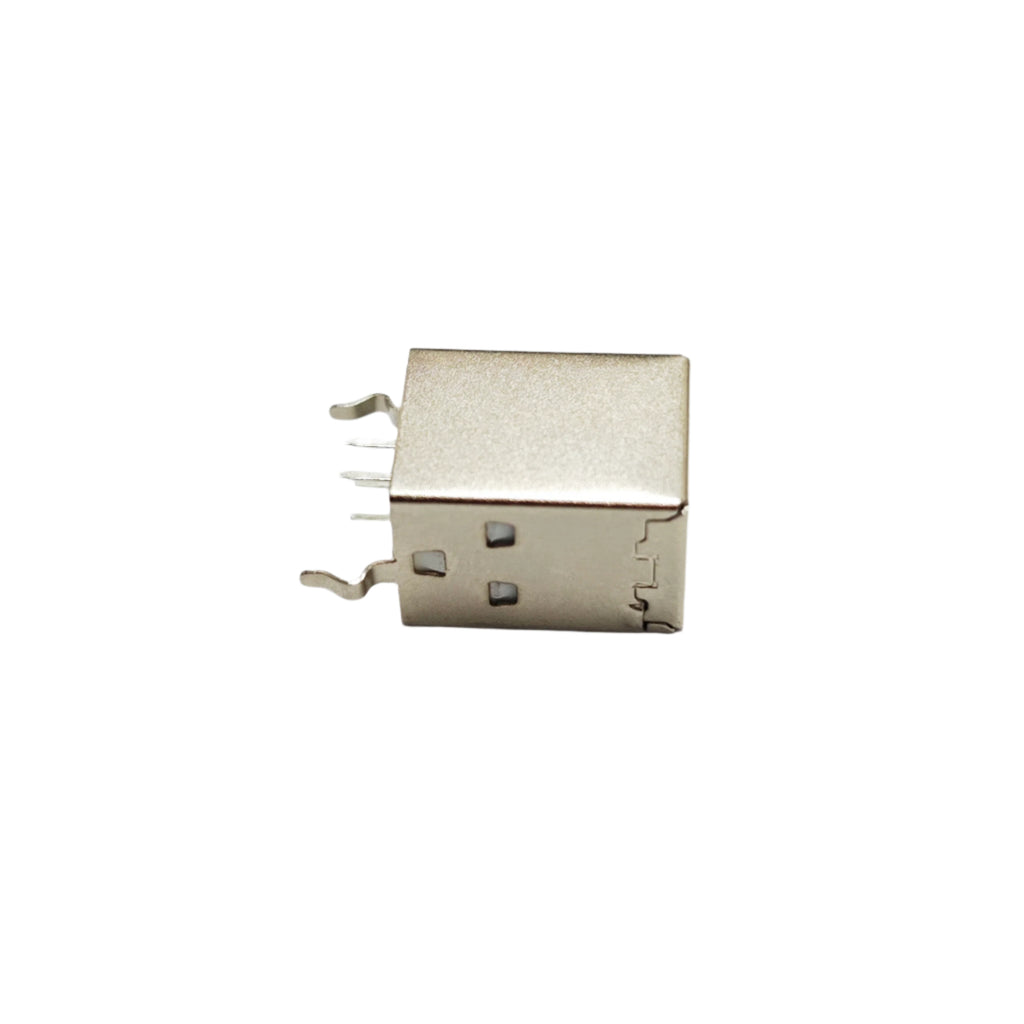

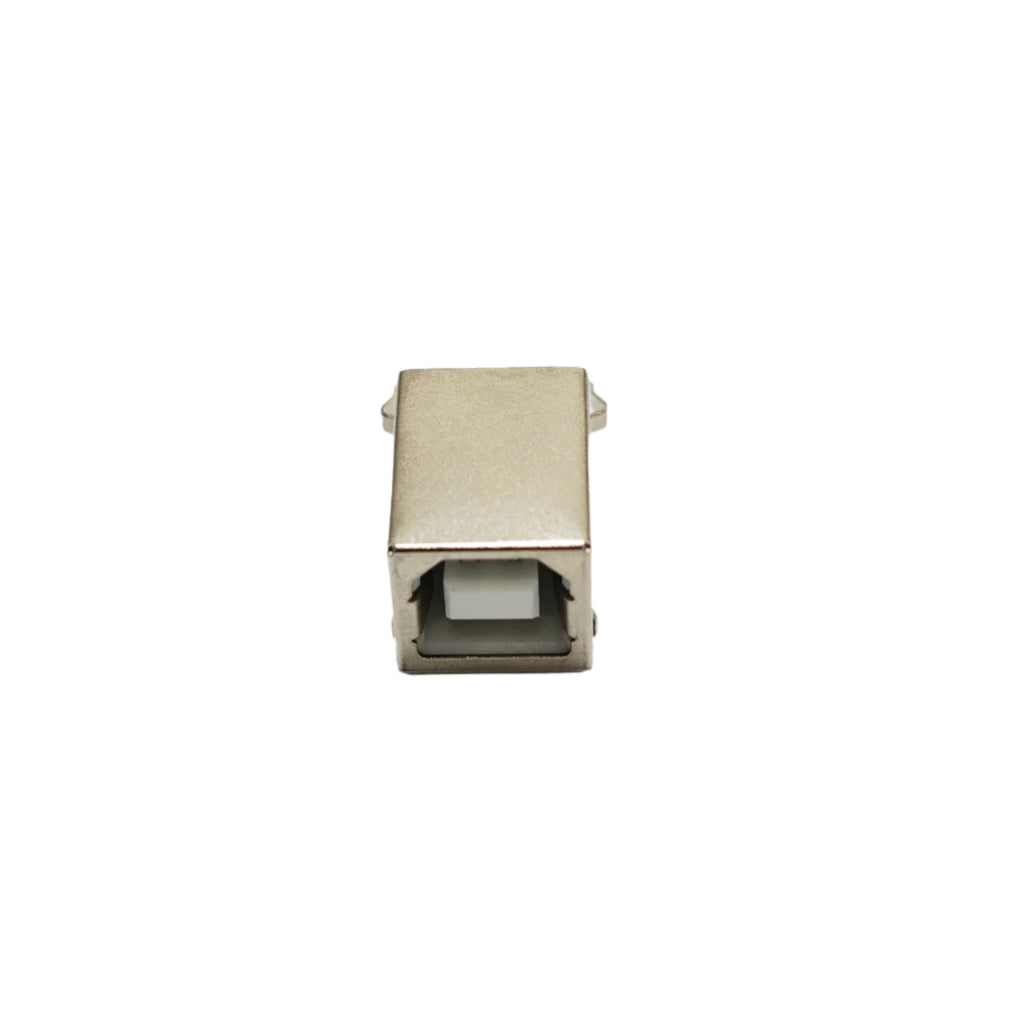

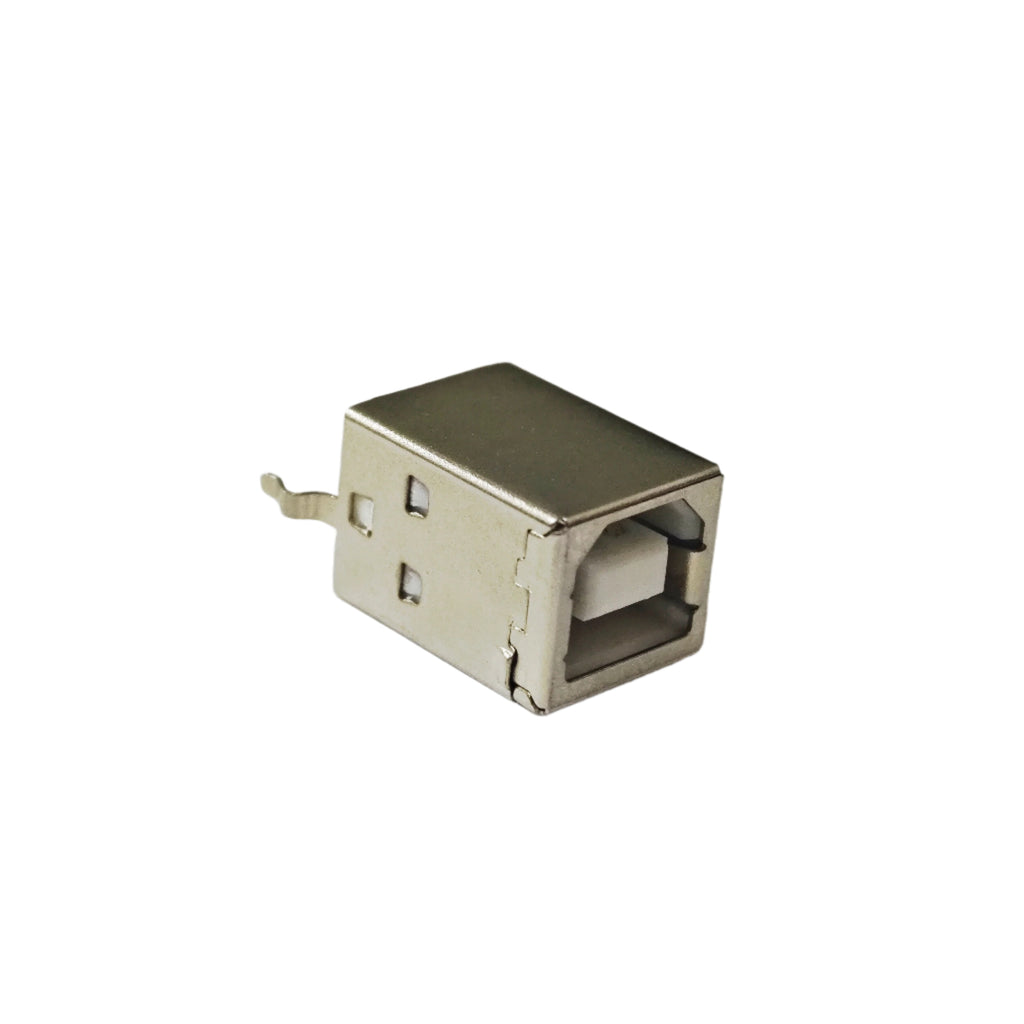

A robust and reliable vertical mount USB Type B female connector designed for applications requiring secure and stable connections in a compact form.
Features
- Type: USB Type B female, standard size.
- Mounting Style: Vertical mount for PCB integration.
- Pin Configuration: 4 pins for USB data and power.
-
Material:
- Contacts: Gold-plated for low resistance and durability.
- Housing: High-temperature plastic for reflow soldering compatibility.
- Durability: Supports up to 1500 mating cycles.
- Compliance: USB 2.0 compliant, backwards compatible with USB 1.1.
- Current Rating: Up to 1.5A for power pins.
Applications
- Printers and scanners.
- Industrial equipment requiring USB connectivity.
- Embedded systems and development boards.
- Communication devices and hubs.
- Robotics and automation projects.
Specification
| Parameter | Value |
|---|---|
| Connector Type | USB Type B Female |
| Mounting Style | Vertical |
| Number of Pins | 4 |
| Material (Contacts) | Copper |
| Material (Housing) | High-temperature plastic |
| Rated Current | 1.5A (Max) |
| Operating Voltage | 30V AC/DC |
| Operating Temperature | -40°C to +85°C |
| Durability | 1500 mating cycles |
