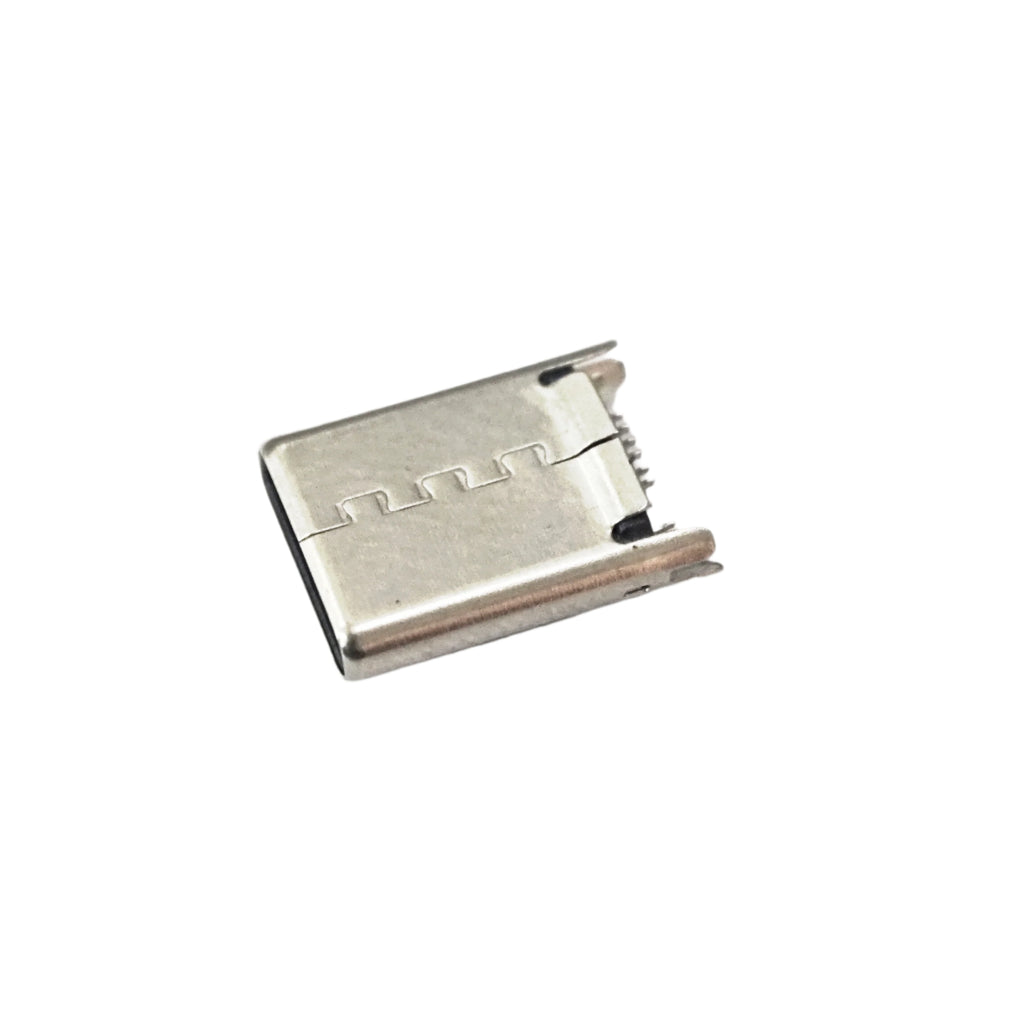

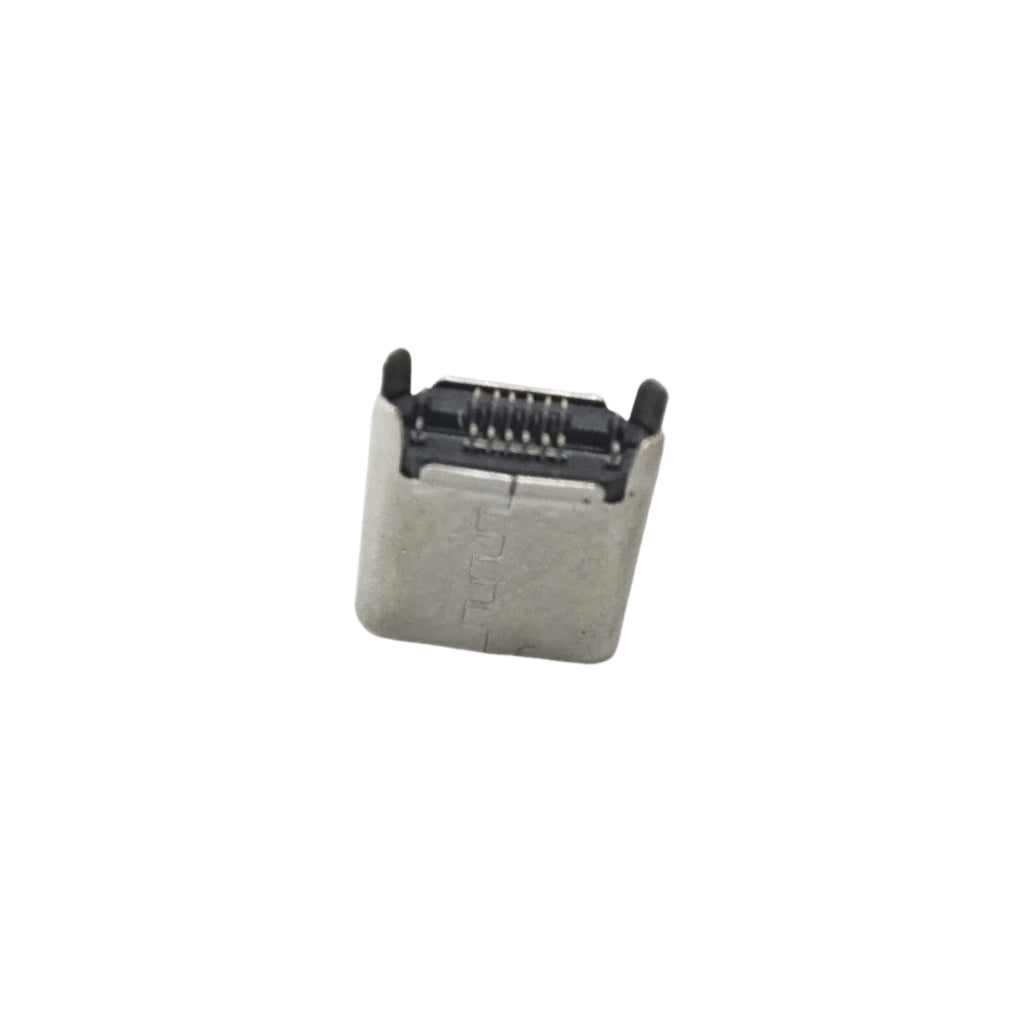

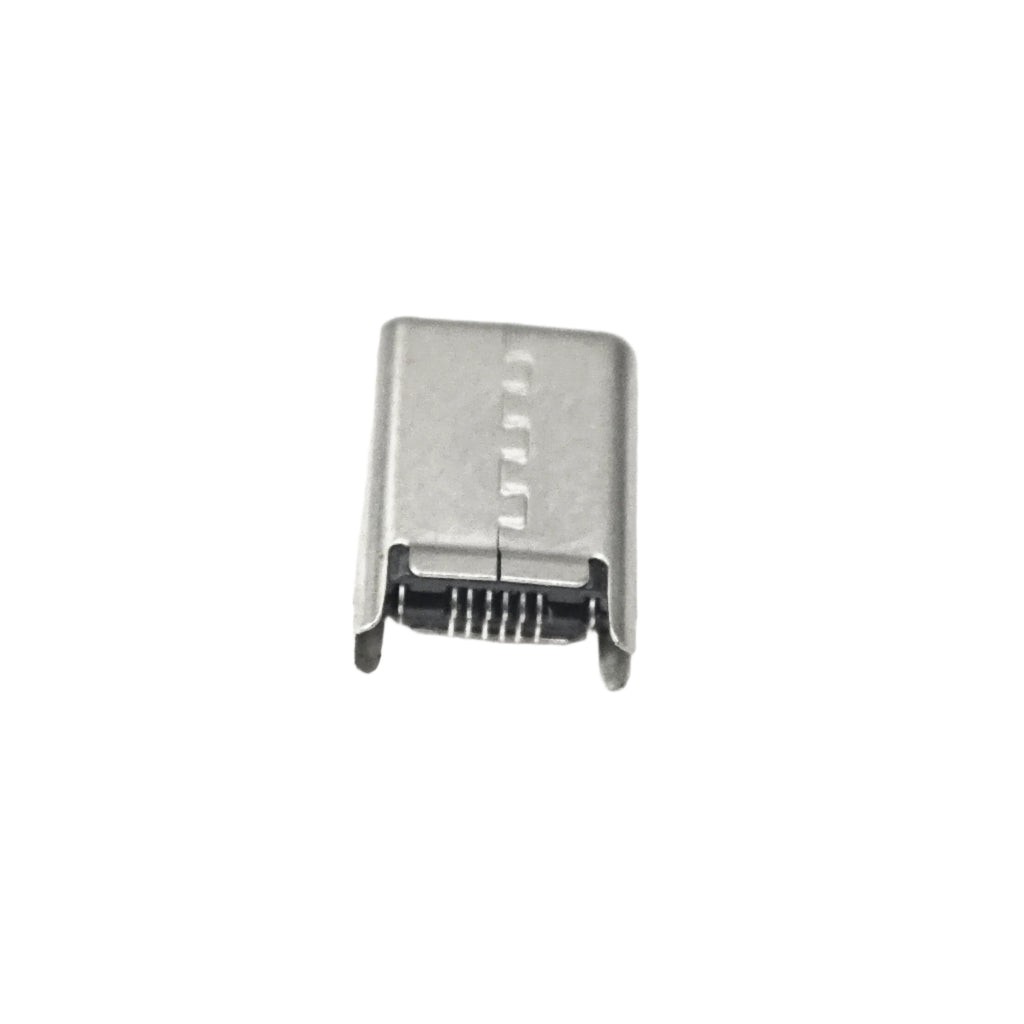

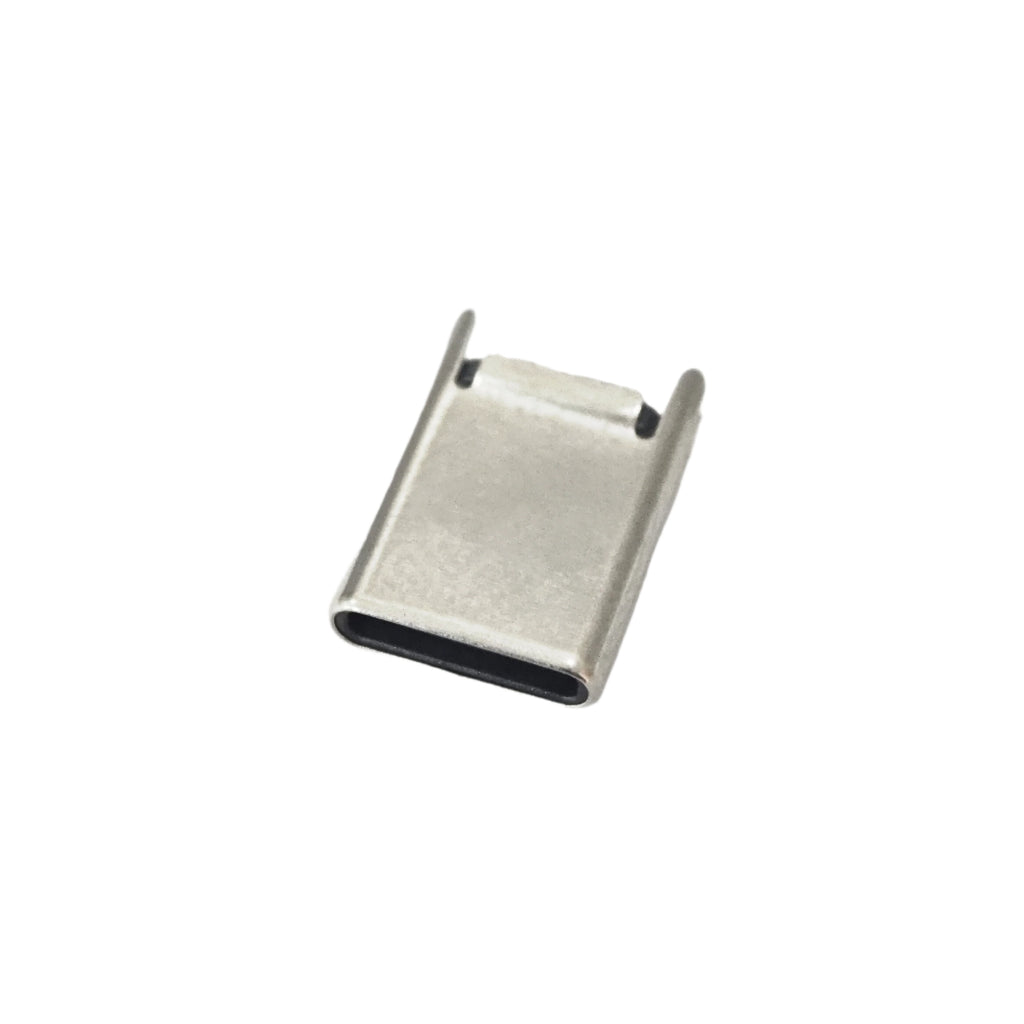

The USB Type-C 16 Pin Male Connector - 11.5mm is a high-performance, compact connector designed for modern USB Type-C applications. With 16 pins, this connector ensures efficient data transfer, power delivery, and enhanced compatibility for various electronic devices. Built to meet industry standards, it provides durability and reliability in demanding applications.
Features
- 16-Pin Configuration: Supports advanced data transfer and power delivery protocols.
- Compact Size: 11.5mm length, suitable for space-constrained designs.
- Reversible Orientation: The plug can be inserted in any direction, ensuring ease of use.
- High-Speed Data Transfer: Supports USB 3.1/3.2 for rapid communication.
- Robust Power Delivery: Compatible with fast charging and high-power applications.
- Durable Construction: Built with premium materials for long-lasting performance.
- Wide Compatibility: Suitable for devices across various industries, including consumer electronics, automotive, and industrial automation.
Applications
- Smartphones, tablets, and laptops.
- Chargers, adapters, and docking stations.
- Audio and video equipment with USB Type-C interfaces.
- DIY electronics, prototyping, and repair projects.
- Industrial machinery and automotive devices using USB-C connectivity.
Specification
| Parameter | Value |
|---|---|
| Connector Type | USB Type-C Male, 16-Pin |
| Dimensions | 11.5mm length (compact form factor) |
| Pin Configuration | 16 pins for data, power, and ground |
| Data Transfer | USB 3.1/3.2 speeds (up to 10Gbps) |
| Current Rating | Up to 5A (based on USB-PD standards) |
| Voltage Rating | Up to 20V |
| Material | Metal shell with heat-resistant plastic insulator |
| Mounting Type | SMD or Through-Hole |
| Durability | ~10,000 plug/unplug cycles |
| Operating Temperature | -20°C to +85°C |
