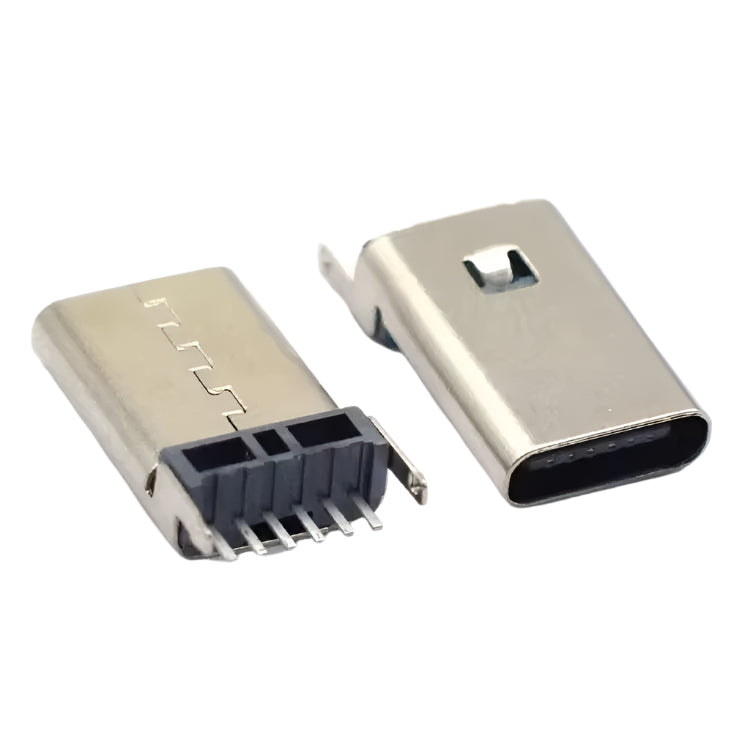

The Vertical 13.1mm USB Type-C 6 Pin Female Connector is a compact, high-quality component designed for modern electronic devices requiring reliable and fast data and power connections. Its vertical orientation and 13.1mm height make it ideal for space-saving PCB layouts. This connector is perfect for integrating USB-C functionality into custom circuit boards, power delivery applications, and data interfaces.
Features
- Compact Vertical Design – Space-saving form factor suitable for tight PCB layouts.
- Durable Build – High-quality materials ensure longevity and repeated use.
- 6 Pin Configuration – Supports essential power and data transfer functions.
- Versatile Compatibility – Suitable for USB-C power input, charging, and data communication.
- Secure Connection – Firm and stable contact with minimal insertion loss.
- RoHS Compliant – Environmentally friendly and meets industry standards.
Applications
- Portable Electronics
- Embedded Systems
- DIY Electronics Projects
- Wearable Devices
- Charging Docks and Adapters
- Industrial and IoT Devices

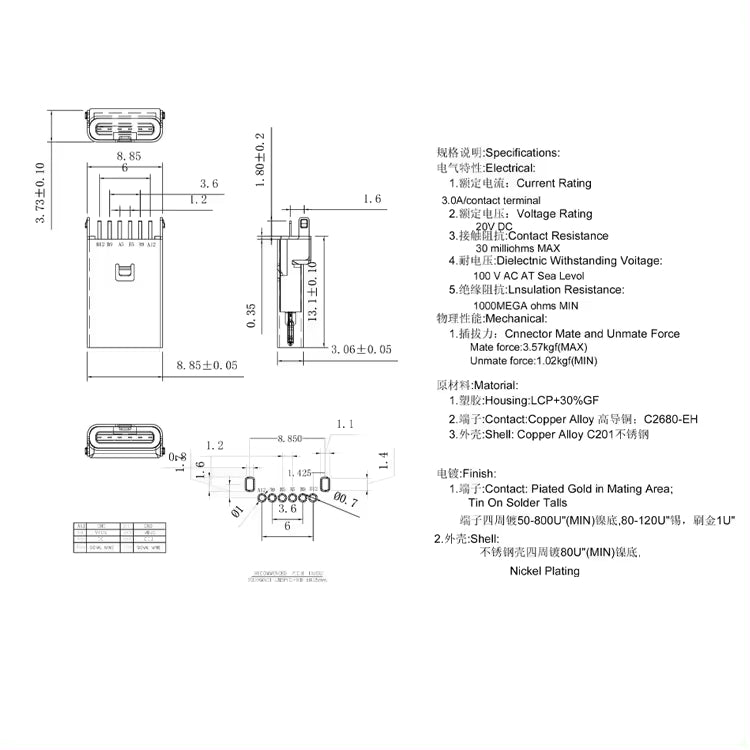

Specification
| Parameter | Value |
|---|---|
| Connector Type | USB Type-C Female |
| Pin Count | 6 Pins |
| Orientation | Vertical |
| Height | 13.1mm |
| Rated Voltage | 20V (Max) |
| Current Rating | 3A |
| Material | Copper Alloy (Contacts), PBT (Housing) |
| Mounting Style | Through-Hole |
| Operating Temperature | -30°C to 85°C |
| Durability | 10,000 Mating Cycles |
