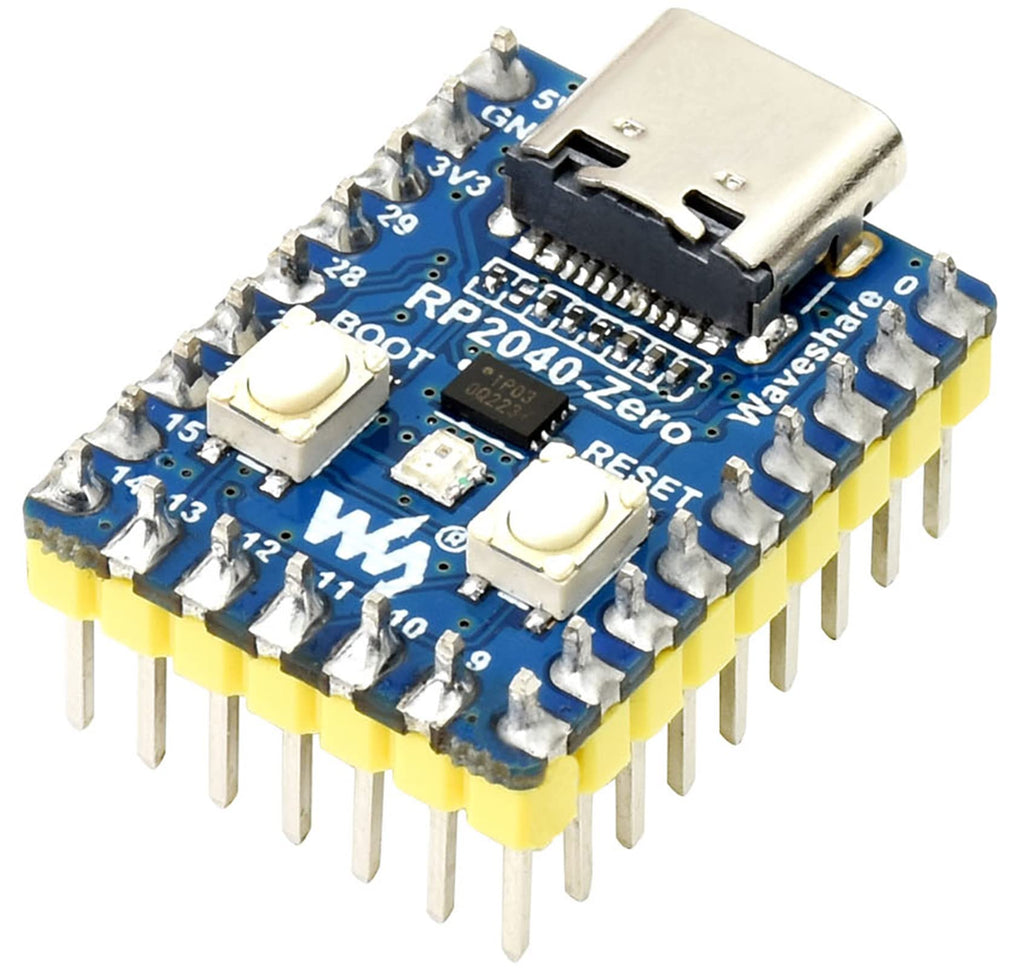

The RP2040 Zero is a compact and high-performance microcontroller development board based on the Raspberry Pi RP2040. It features a dual-core ARM Cortex-M0+ processor running at up to 133MHz, 264KB SRAM and 2MB onboard Flash memory. The board includes a USB Type-C interface, multifunction GPIOs, ADC, PWM, SPI, I2C, UART and programmable PIO interfaces, making it suitable for embedded systems, automation, robotics, IoT devices and custom electronics projects.
Its small castellated-edge design allows the RP2040 Zero to be directly soldered onto a custom PCB, making it particularly useful for compact and production-oriented designs. It supports C/C++, MicroPython and other RP2040 development environments.
Features
- Powered by Raspberry Pi RP2040 dual-core microcontroller
- Dual-core ARM Cortex-M0+ processor with clock speed up to 133MHz
- 264KB on-chip SRAM and 2MB onboard Flash memory
- USB Type-C connector for programming and communication
- 29 multifunction GPIO pins available on the RP2040, with 20 accessible through the edge pinout and additional pins through solder points
- 2 × SPI, 2 × I2C and 2 × UART interfaces
- 4-channel 12-bit ADC
- 16 controllable PWM channels
- 8 programmable I/O (PIO) state machines
- Built-in temperature sensor
- USB 1.1 host and device support
- Low-power sleep and dormant modes
- Drag-and-drop USB mass-storage programming
- Castellated module design for direct soldering onto custom PCBs
- Supports C/C++, MicroPython and Arduino-based development
Applications
- Embedded control systems
- Robotics and automation projects
- IoT and smart-device development
- Sensor and data acquisition systems
- LED and RGB lighting controllers
- Motor and servo control
- USB HID and custom USB devices
- Custom PCB and embedded module development
- Electronic prototyping and educational projects
- Compact portable electronics
Specification
| Microcontroller | Raspberry Pi RP2040 |
| Processor | Dual-Core ARM Cortex-M0+ |
| Maximum Clock Frequency | 133MHz |
| SRAM | 264KB |
| Onboard Flash | 2MB |
| GPIO | 29 Multifunction GPIO |
| ADC | 4 × 12-bit |
| PWM | 16 Channels |
| SPI | 2 × SPI |
| I2C | 2 × I2C |
| UART | 2 × UART |
| USB | USB 1.1 Host/Device |
| USB Connector | USB Type-C |
| Programmable I/O | 8 PIO State Machines |
| Programming | USB Mass Storage / Drag-and-Drop |
| Programming Languages | C/C++, MicroPython, Arduino |
| Board Type | Mini Castellated Development Module |
